Manage
|
Monitoring
Analog & Digital
• Contour panel/front facia complements contour range
• All Contour Matrix monitors can fit into this style of panel
87.16mm (3 7/16
”)
76.84mm (3
”)
Front
Facia
Available
47.09mm (1 7/8
”)
27.70mm (1 1/16
”)
115.55mm (4 9/16
”)
107.00mm (4 3/16
”)
95.00mm (3 3/4
”)
Cut-Out
Dimensions
127.00mm (5
”)
Dimensions for analog and
digital panels
80-601-0020-00
80-601-0025-00

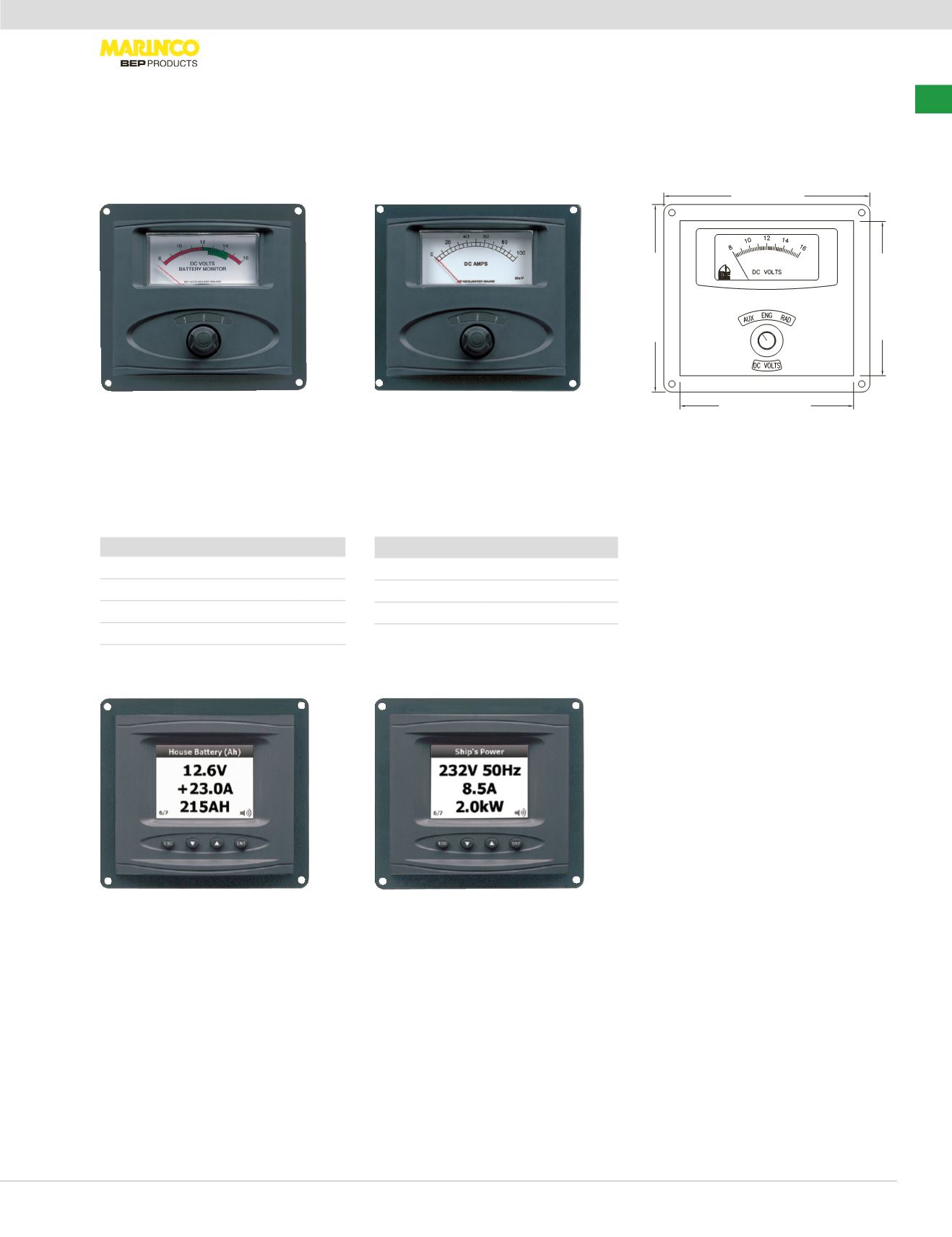

Manage:
Monitoring–Analog & Digital
Panel Mounted Analog
Battery Condition Meter
(expanded scale)
• Panel switchable to show 3 different
battery banks
• Available 12V (8-16V) or 24V (16-32V)
Item #
Range
Inputs
80-601-0020-00
8–16V DC 3
80-601-0021-00
16–32V DC 3
80-601-0022-00
0–150V AC 1
80-601-0023-00
0–300V AC 1
Panel Mounted
Analog Ammeter Panel
• Panel switchable for use on up to
3 different ammeter shunts
• Supplied with 1 shunt, meter scales
available, 0-50A 0-100A 0-150A
Item #
Range
Inputs
80-601-0024-00
0–50A DC 3
80-601-0025-00
0–100A DC 3
80-601-0026-00
0–150A DC 3
Panel Mounted
DC Systems Monitor
• See page 201 for DCSM functionality
• Supplied with 450A-50mV shunt
Item # 80-600-0027-00
Panel Mounted
AC Systems Monitor
• See page 202 for ACSM functionality
• Supplied with voltage and current
transducers
Item # 80-600-0028-00
