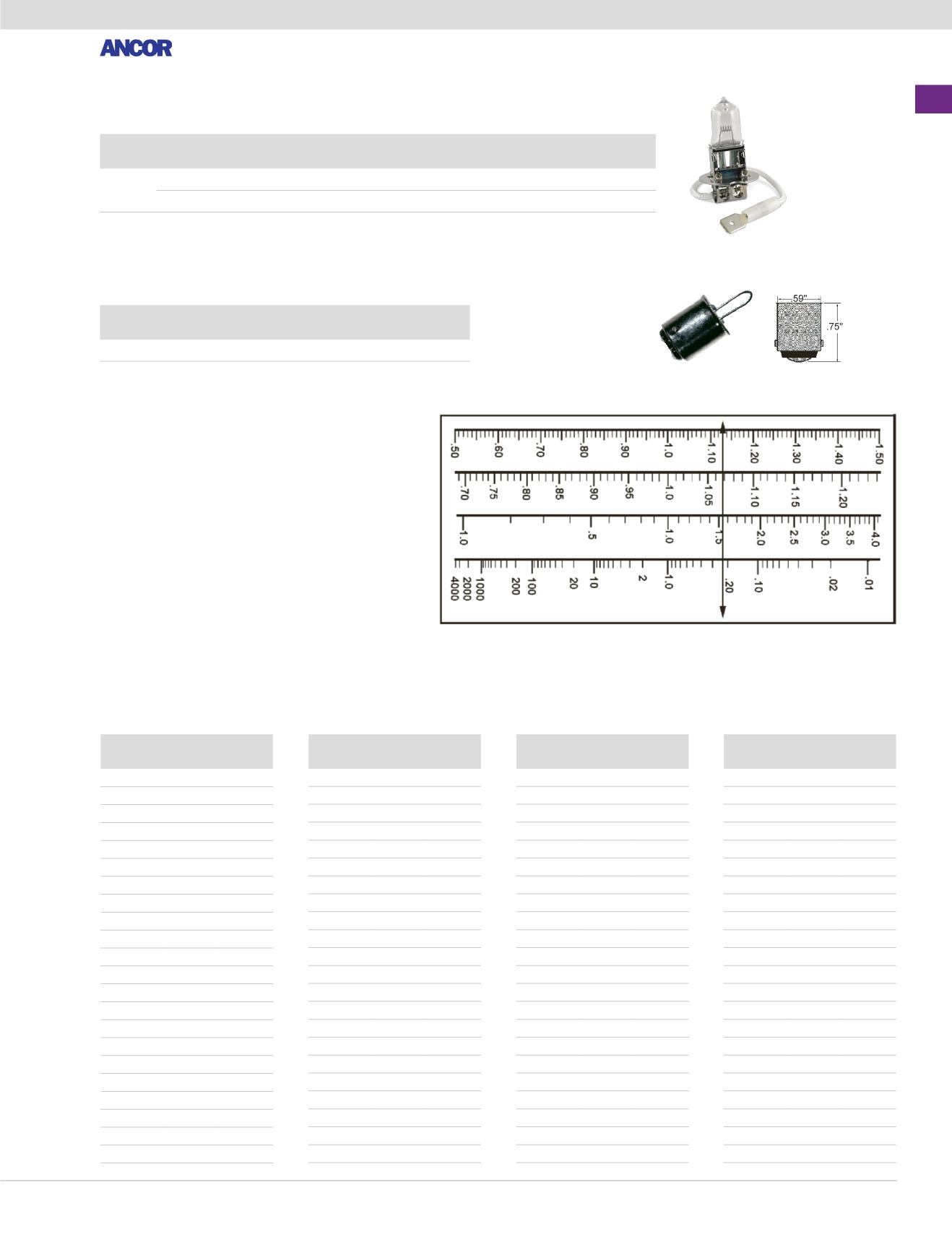

Accessories
|
Lighting
H2/H3 Halogen Lamps
Figure
Letter Line #
Bulb
Type
System
Volts
Design
Volts
Design
Amps
Design
Watts CP
Qty/
Pkg Item #
AP 109 H2
12.00 13.50 4.58 55.00 225.00 1
529168
110 H3
12.00 13.50 8.30 100.00 100.00 1
529386
Halogen Lamp Adapter Bases
The nickel-plated brass base Halogen Lamp Adapter allows the use of all V style miniature
halogen lamps in standard single contact, double contact or medium screw base sockets.
Figure
Letter Line # Description
Qty/
Pkg Item #
AQ 112 D C Bayonet
1
529381
Accessories:
Lamps
Life Lamp Calculator
This lamp life nomograph shows the
relationship between voltage, current,
candle power and life. Each lamp has
a design voltage as well as a nominal
operating voltage. This allows the designer
of the lamp to tailor the life/output/current
draw to meet specific needs, within certain
industry standards. We have chosen to
emphasize life and brightness. The rated
life is based on the average life of 50%
of the lamps tested under laboratory
conditions – no vibration, stable voltage,
room temperature, and in a vertical position.
Any other condition will adversely affect lamp life.
Example: To find the effect of under or over voltage on life, current draw and candle power, read in a horizontal line under % of rated
voltage. Thus, a #90 bulb rated at 13V but operating at 14.70v (113% of rated voltage – a high charge rate) would have 107% of
rated current draw, 155% of rated candle power, but would only last 23% of its rated life.
% of rated
Voltage
% of rated
Current
% of rated
Candle
Power
% of rated
Life
Cross Reference Listing
Item # Line #
Figure
Letter
511016
81 AH
520053
19 M
520057
21 N
520067
39 U
520068
27 R
520082
26 R
520090
28 R
520093
41 V
520094
30 S
520097
38 U
520168
16 K
520194
15 K
520906
18 L
520912
17 K
521003
37 T
521004
25 Q
521034
44 X
521076
31 S
521126
20 M
521140
33 S
521141
42 W
521142
32 S
Item # Line #
Figure
Letter
521156
43 W
521157
45 X
521158
46 X
521159
24 P
521162
47 Y
521164
48 Z
521176
34 S
521204
35 S
521224
29 R
521228
36 S
521383
40 V
521416
23 P
521816
22 O
522112
58 AF
522122
59 AF
522124
49 AA
522126
56 AD
522127
55 AD
522129
52 AB
522131
57 AE
529095
53 AC
529102
50 AB
Item # Line #
Figure
Letter
529104
54 AD
529168
109 AP
529300
92 AJ
529333
60 AG
529337
107 AN
529338
105 AM
529340
95 AK
529341
96 AK
529344
97 AK
529355
108 AN
529361
102 AM
529362
103 AM
529367
104 AM
529368
106 AM
529370
106 AM
529371
106 AM
529381
112 AQ
529385
107 AO
529386
110 AP
529405
98 AL
529406
99 AL
529410
8
F
Item # Line #
Figure
Letter
529411
9
G
529412
3
C
529413
4
C
529414
5
D
529416
6
E
529417
1
A
529419
2
B
529420
7
E
529421
10 H
529422
11 H
529423
12 I
529424
13 J
531015
82 AI
531025
83 AI
531050
84 AI
531075
85 AI
531100
86 AI
532025
87 AI
533015
88 AI
533025
89 AI
533050
90 AI
533075
91 AI
