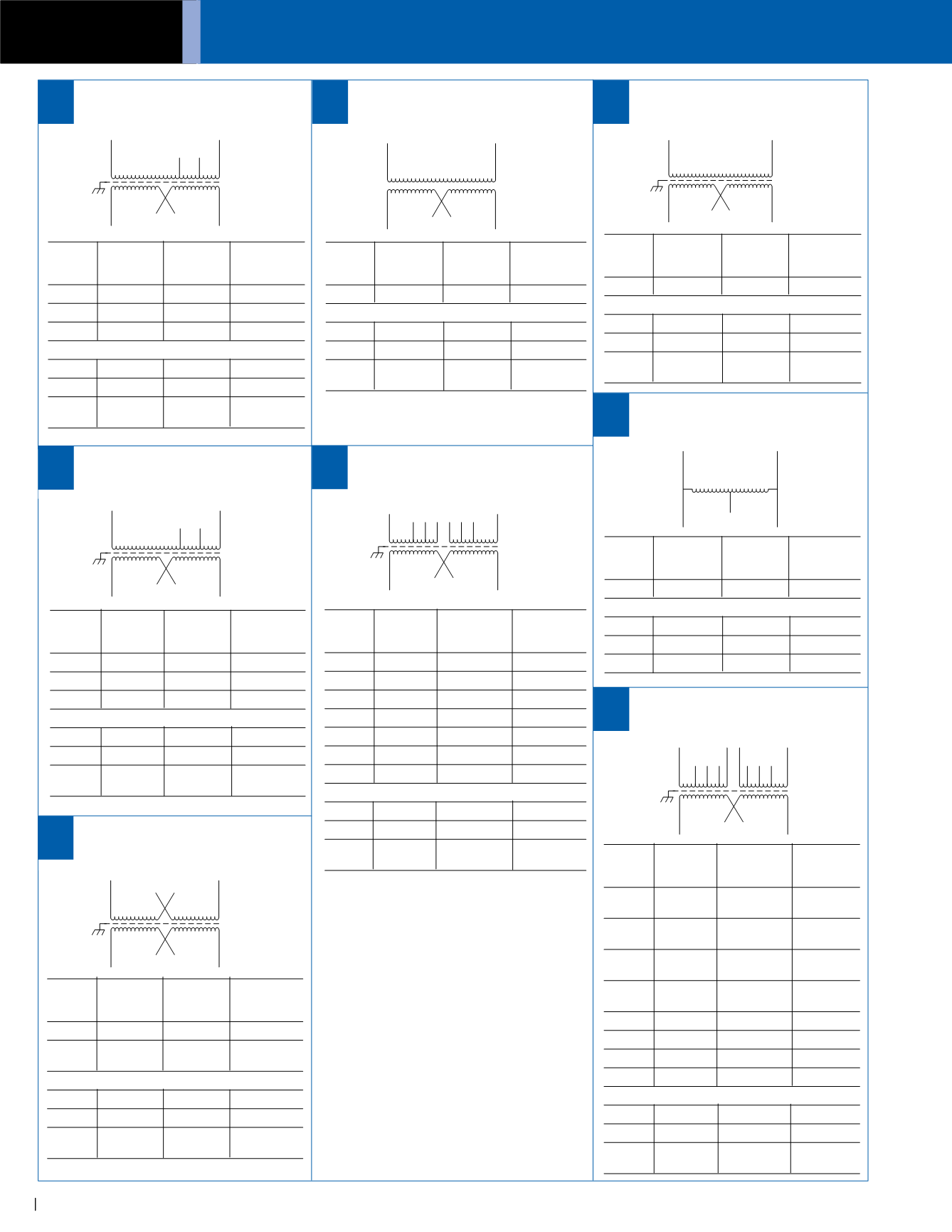

GENERAL ELECTRICAL CONNECTION DIAGRAMS
ACME ELECTRIC • MILWAUKEE, WI • 800.334.5214 • acmetransformer.com 124
ACME® TR NSF RMER™ WIRIN DI GRAMS
PRIMARY: 120 x 240
SECONDARY: 120/240
TAPS: None
X4 X1
H4
H2 H3
H1
X2 X3
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
240 H1-H4 H2 to H3
120 H1-H3 &
H2-H4
Secondary Volts
240 X2 to X3 X1-X4
120/240 X2 to X3 X1-X2-X4
120 X1 to X3 X1-X4
X2 to X4
PRIMARY: 600
SECONDARY: 120/240
TAPS: None
X4 X1
H1
X2 X3
H2
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
600 H1-H2
Secondary Volts
240 X2 to X3 X1-X4
120/240 X2 to X3 X1-X2-X4
120 X1 to X3 X1-X4
X2 to X4
PRIMARY: 600
SECONDARY: 120/240
TAPS: None
X4 X1
H1
X2 X3
H2
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
600 H1-H2
Secondary Volts
240 X2 to X3 X1-X4
120/240 X2 to X3 X1-X2-X4
120 X1 to X3 X1-X4
X2 to X4
PRIMARY: 277
SECONDARY: 120/240
TAPS: 2, 5% BNFC
X4 X1
H1
X2 X3
H3
H4
H2
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
277 H1 & H4
263 H1 & H3
250 H1 & H2
Secondary Volts
240 X2 to X3 X1-X4
120/240 X2 to X3 X1-X2-X4
120 X1 to X3 X1-X4
X2 to X4
EXPORT MODEL
PRIMARY: 190-220 x 380-440
SECONDARY: 120/240
X4 X1
H5
H3
H1
X2 X3
H2 H4
H6
H7 H8 H9
H10
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
190 H1 & H7 H1 to H6H2 to H7
200 H1 & H8 H1 to H6H3 to H8
208 H1 & H9 H1 to H6H4 to H9
220 H1 & H10 H1 to H6H5 to H10
380 H1 & H7 H2 & H6
400 H1 & H8 H3 & H6
416 H1 & H9 H4 & H6
440 H1 & H10 H5 & H6
Secondary Volts
240 X2 to X3 X1-X4
120/240 X2 to X3 X1-X2-X4
120 X1 to X3 X1-X4
X2 to X4
PRIMARY: 240
SECONDARY: 120/240
TAPS: None
1
1
2
3
3
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
240 1-3
Secondary Volts
240 1-3
120 1-2 or 2-3
120/240 1-2-3
PRIMARY: 600
SECONDARY: 120/240
TAPS: 2, 2 1/2 % ANFC, 4, 21/ 2% BNFC
X4 X1
1
H1
X2 X3
2
H2
3 4 5 6
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
540 H1-H2 1-6
555 H1-H2 1-5
570 H1-H2 2-6
585 H1-H2 2-5
600 H1-H2 3-5
615 H1-H2 2-4
635 H1-H2 3-4
Secondary Volts
240 X2 to X3 X1-X4
120/240 X2 to X3 X1-X2-X4
120 X1 to X3 X1-X4
X2 to X4
PRIMARY: 600
SECONDARY: 120/240
TAPS: 2, 5% BNFC
X4 X1
H1
X2 X3
H3
H4
H2
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
600 H1-H4
570 H1-H3
540 H1-H2
Secondary Volts
240 X2 to X3 X1-X4
120/240 X2 to X3 X1-X2-X4
120 X1 to X3 X1-X4
X2 to X4
14
7 8 9
10 11
12
13
