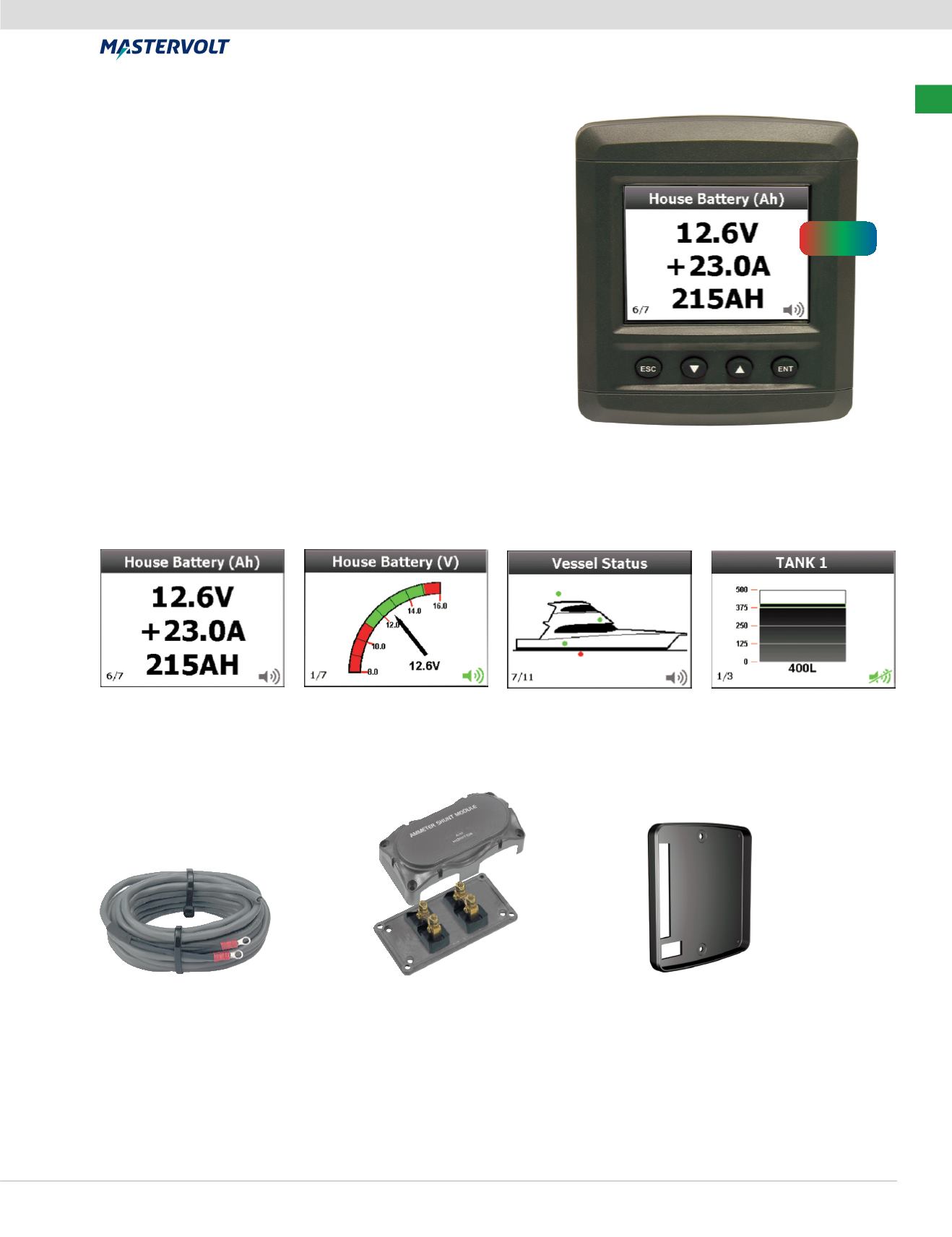

DC Systems Monitor (DCSM)
Designed and manufactured by BEP, these state of the art full color
monitors are made to meet the systems monitoring requirements of
today’s modern vessel and recreational vehicle. Complex AC and DC
electrical installations onboard are becoming more common place.
Additionally the increase in tank monitoring requirements for fuel, fresh,
grey and black water, accurate monitoring of these systems is essential.
The DCSM and ACSM displays feature clear, extra large type face. This
allows for more detailed on-screen information and increased clarity.
The screen has backlighting for easy night time viewing.
See sample screens below.
Specifications:
• 2.8" Color QVGA LCD
• Input voltage 8-32VDC
• Dimensions (WxH):
90x100 mm
• Backlit keypad
Monitors:
• Charge/discharge amps
for two banks
• Capacity remaining in A/h and %
• Battery condition
• Tank fluid level
• Circuit status
Features:
• 8 Generic, user
configurable inputs
• Programmable high/low audio/
visual alarms for volts, amps
and tank levels
• Backlit keypad and
dimmable screen
• Can be panel or
surface mounted
Full Color
Monitor
DC Power Meter
• Displays voltages of multiple
battery banks (0-32V DC)
• Displays charge and discharge
(amps) of 2 battery banks
• Displays battery capacity in
amp hours
• High/Low level alarms
Display Type
• Configure the DCSM to show
the data in analog, digital
and graphic form
Circuit Status
• View the status of important
circuits (on/off)
• In graphic and numeric form
Tank Level
• View tank level information
for multiple tanks in numeric
and graphic forms.
Resetable when leaving boat
Manage:
Monitoring–DC
Installation Cable Kit
• 2 core screened cable in 2 lengths
pre-terminated
Item # 600-DCM-5M
16.45" (5 m)
Item # 600-DCM-10M
32.9" (10 m)
Sprayproof Gasket
When fitted the gasket provides a water
ingress protection level of IPX5
(Protection against low pressure jets of
water) for the AC and DC systems
monitors
Item # GAS-SM
Ammeter Shunt Enclosure
Provides a protective housing for shunt
termination meeting ABYC standards.
DC current shunt
Item # LB-450-50M
ordered separately. See page 197 for
more details.
• Digital large: 450A - 50mV
• Analog small: 50A - 50mV, 100A -
50mV, 150A - 50mV
• Takes 2 small or one large shunt
Item # 711L
