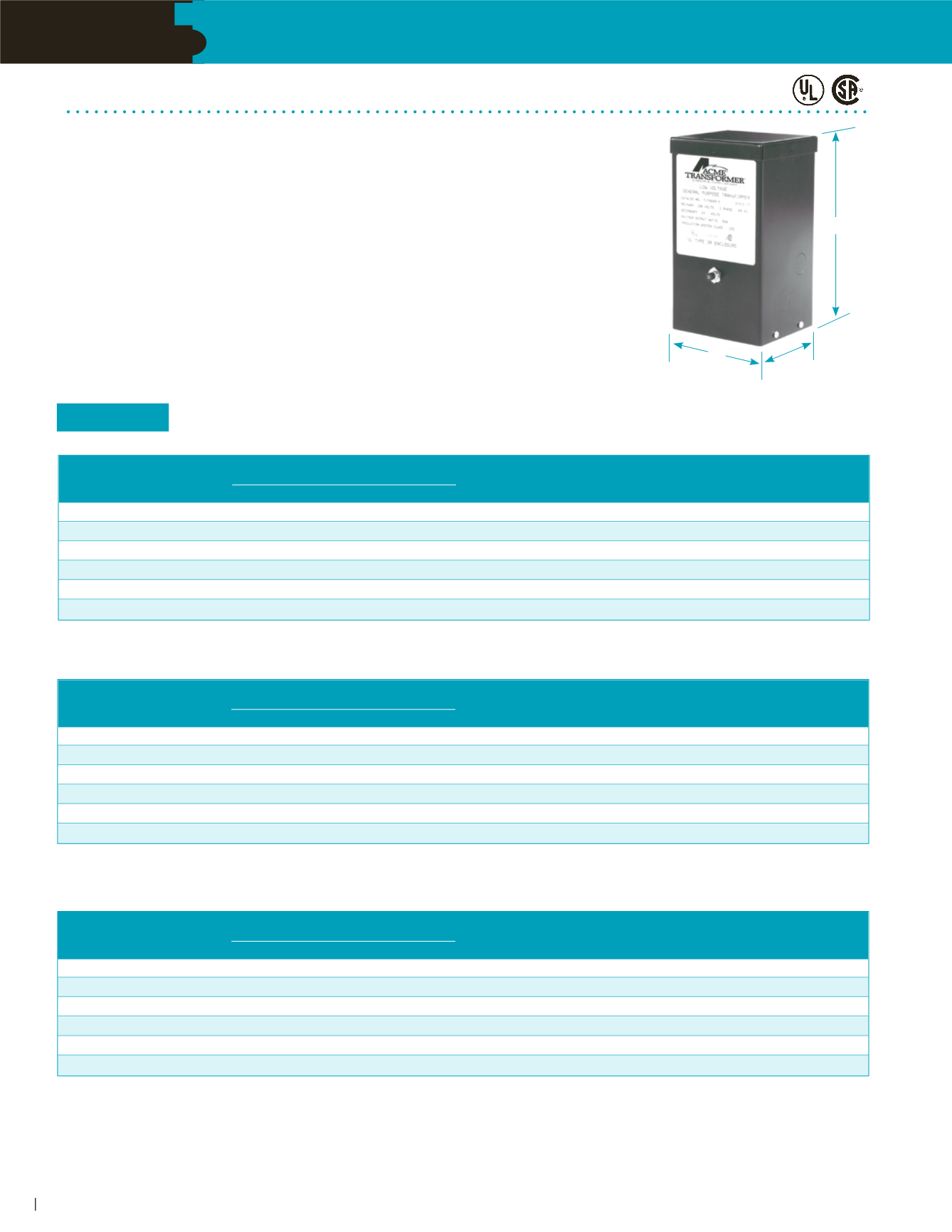

Low Voltage General Purpose Transformers
FEATURES
Q
UL Listed , CSA Certified.
Q
100, 150, 300, 600, 750, 1000 VA.
Q
1 Phase, 60 Hz, 120 or 240 volt input.
Q
12 or 24 volt output.
Q
Input Auto-Thermal reset switch.
Q
Output circuit breaker.
Q
Fully encapsulated core and coil.
Q
Full fault current carrying Faraday Shield.
Q
Flexible copper leadwire terminations.
Q
UL class 180°C insulation system 115°C rise.
Q
UL Type 2 enclosure.
Q
Keyhole slotted wall mounting brackets.
Q
Black finish.
Q
Bottom access.
Q
Two 0.875 (2.2 cm) single knockouts
each side.
Q
Two dual 0.875 (2.2 cm) and 1.125
(2.9 cm) knockouts on bottom cover.
120 PRIMARY VOLTS – 12 SECONDARY VOLTS, TWO WINDINGS, 1Ø, 60 Hz
120 PRIMARY VOLTS – 24 SECONDARY VOLTS, TWO WINDINGS, 1Ø, 60 Hz
240 PRIMARY VOLTS – 24 SECONDARY VOLTS, TWO WINDINGS, 1Ø, 60 Hz
H
W
D
GROUP V
APPROX. DIMENSIONS
APPROX.
VA
CATALOG NO.
INCHES (CM.)
SHIP WEIGHT
CB RATING
CB STYLE
HEIGHT
WIDTH
DEPTH
LBS. (KG.)
100
T179600S
9.01 (22.9)
4.08 (10.4)
3.88 (9.9)
7 (3.2)
15 AMP
Push To Reset Thermal Breaker
150
T179620S
9.01 (22.9)
4.08 (10.4)
3.88 (9.9)
7 (3.2)
20 AMP
Push To Reset Thermal Breaker
300
T179621S
11.68 (29.7)
4.66 (11.8)
4.57 (11.6)
11 (5.0)
40 AMP
Push To Reset Thermal Breaker
600
T179622S
11.68 (29.7)
4.66 (11.8)
4.57 (11.6)
15 (6.8)
60 AMP
Magnetic Toggle On/Off Breaker
750
T179603S
11.68 (29.7)
4.66 (11.8)
4.57 (11.6)
18 (8.2)
75 AMP
Magnetic Toggle On/Off Breaker
1000
T179604S
11.93 (30.3)
5.41 (13.7)
5.20 (13.2)
26 (11.8)
100 AMP
Magnetic Toggle On/Off Breaker
APPROX. DIMENSIONS
APPROX.
VA
CATALOG NO.
INCHES (CM.)
SHIP WEIGHT
CB RATING
CB STYLE
HEIGHT
WIDTH
DEPTH
LBS. (KG.)
100
T179605S
9.01 (22.9)
4.08 (10.4)
3.88 (9.9)
7 (3.2)
7 AMP
Push To Reset Thermal Breaker
150
T179623S
9.01 (22.9)
4.08 (10.4)
3.88 (9.9)
7 (3.2)
10 AMP
Push To Reset Thermal Breaker
300
T179624S
11.68 (29.7)
4.66 (11.8)
4.57 (11.6)
11 (5.0)
20 AMP
Push To Reset Thermal Breaker
600
T179625S
11.68 (29.7)
4.66 (11.8)
4.57 (11.6)
15 (6.8)
40 AMP
Push To Reset Thermal Breaker
750
T179608S
11.68 (29.7)
4.66 (11.8)
4.57 (11.6)
18 (8.2)
50 AMP
Push To Reset Thermal Breaker
1000
T179609S
11.93 (30.3)
5.41 (13.7)
5.20 (13.2)
26 (11.8)
50 AMP
Magnetic Toggle On/Off Breaker
APPROX. DIMENSIONS
APPROX.
VA
CATALOG NO.
INCHES (CM.)
SHIP WEIGHT
CB RATING
CB STYLE
HEIGHT
WIDTH
DEPTH
LBS. (KG.)
100
T179615S
9.01 (22.9)
4.08 (10.4)
3.88 (9.9)
7 (3.2)
7 AMP
Push To Reset Thermal Breaker
150
T179629S
9.01 (22.9)
4.08 (10.4)
3.88 (9.9)
7 (3.2)
10 AMP
Push To Reset Thermal Breaker
300
T179630S
11.68 (29.7)
4.66 (11.8)
4.57 (11.6)
11 (5.0)
20 AMP
Push To Reset Thermal Breaker
600
T179631S
11.68 (29.7)
4.66 (11.8)
4.57 (11.6)
15 (6.8)
40 AMP
Push To Reset Thermal Breaker
750
T179618S
11.68 (29.7)
4.66 (11.8)
4.57 (11.6)
18 (8.2)
50 AMP
Push To Reset Thermal Breaker
1000
T179619S
11.93 (30.3)
5.41 (13.7)
5.20 (13.2)
26 (11.8)
50 AMP
Magnetic Toggle On/Off Breaker
