Connect
|
Inlets
ELCI inlets
Marinco's solution to the ABYC E-11 requirement is based on our
industry-standard marine inlets. We have taken the best available
technology and built it into our inlets to provide boat builders and
owners with the safest, best looking and most durable solution possible.
We provide two modules in addition to the standard inlet. One houses
the ELCI Marine Sensing Module, the other the breaker. Unlike
competing systems, our ELCI Marine sensing module has a 3/4"
diameter coil that accepts up to three 6 gauge conductors. This
sensing module, which also incorporates a test circuit, is compatible
with 30A 125V, 50A 125V and 50A 125V/250V systems. There is a
different breaker for 30A and 50 systems.
Ignition protected breakers & kits
Boat manufacturers that want to comply with ABYC standards should
already be aware that potential electrical sources of ignition should not
be located in certain compartments that contain gasoline machinery,
gasoline tanks or potential gasoline/propane storage containers. To take
the guess work out of which breaker fits your application, Marinco is
pleased to offer all of our ELCI inlets with ignition protected breakers.

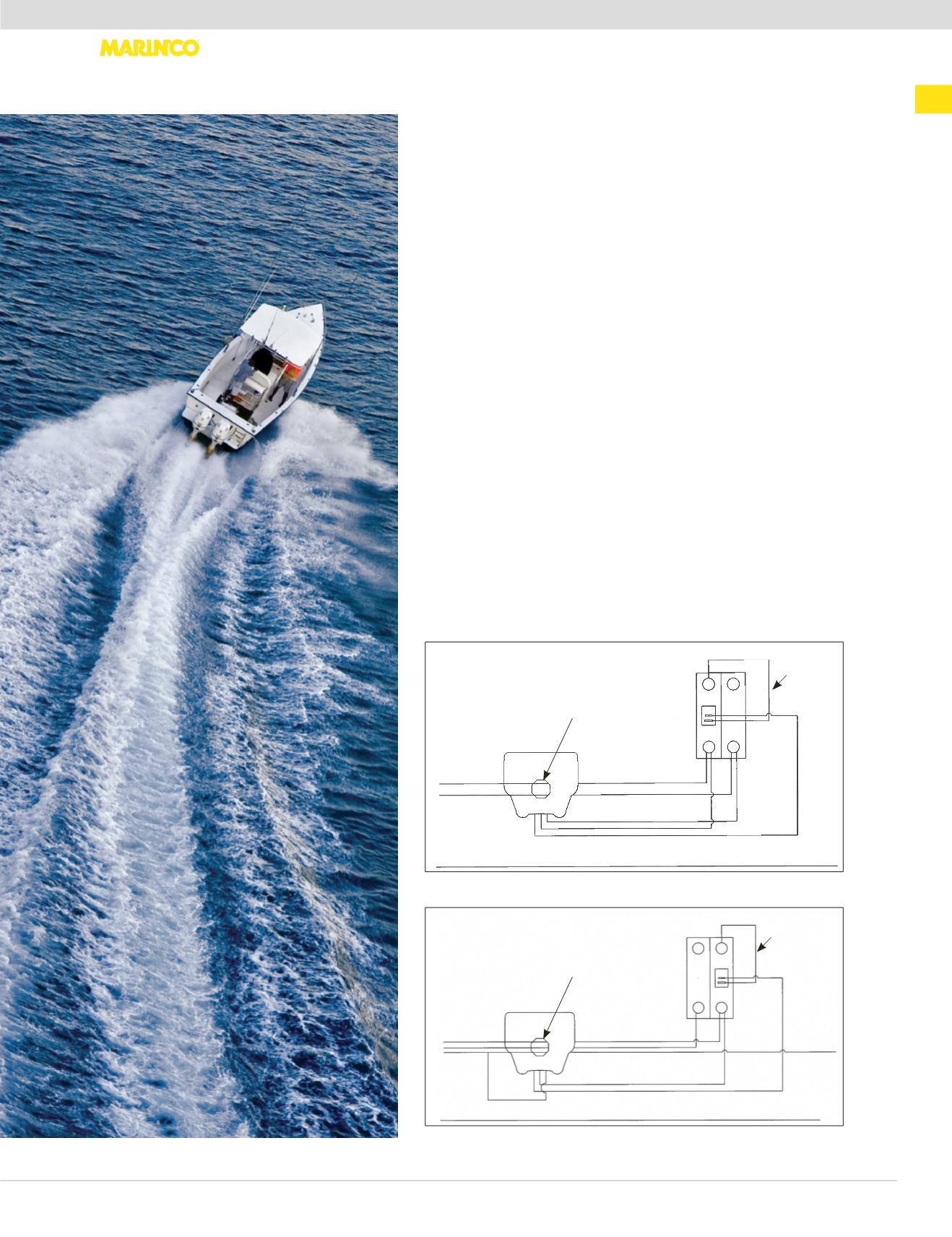

Connect:
ELCI Inlets & Ignition Protected Breakers
LOAD
LINE
NO
C
ORANGE
JUMPER
SHUNT
WHITE
BLACK
YELLOW (SHUNT)
H
N
NORTH SHORE SAFETY
PART #
PGFM-111-B-A1-188
120V AC ELCI
SENSING MODULE
LOAD
LINE
NO
C
ORANGE
JUMPER
SHUNT
CURRENT
CARRYING LEADS
MUST BE TWISTED
AS THEY PASS
THROUGH THE
COIL
CURRENT
CARRYING LEADS
MUST BE TWISTED
AS THEY PASS
THROUGH THE
COIL
BLACK
YELLOW (SHUNT)
L1 (BLACK)
L2
GROUNDINGWIRE
GROUNDINGWIRE
NORTH SHORE SAFETY
PART #
PGFM-111-B-A1-188
120V AC ELCI
SENSING MODULE
PANEL
BOARD
WHITE
N
SENSATA 30 AMP ELCI BREAKER
SENSATA 50 AMP ELCI BREAKER
Single Phase 120V AC 30A
(Hot, Neutral, Ground)
Split Phase 120/240V AC 50A
(Line 1, Line 2, Neutral, Ground)
