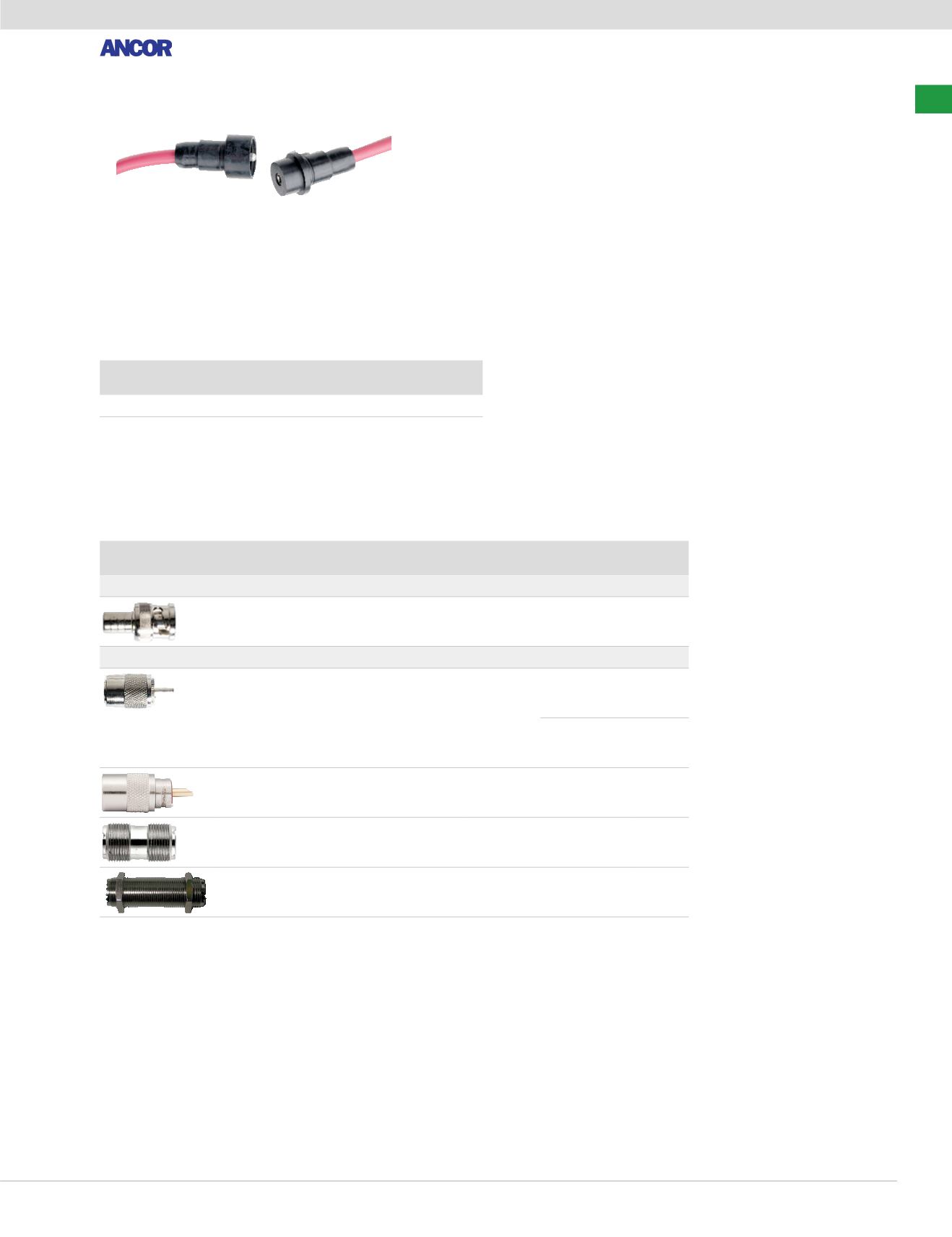

DrySeal™ Connectors
• Truly submersible, rated operable from -40°F to 221°F,
under conditions of salt water spray and severe vibration.
• Sealing integrity is maintained even with exposure to
gasoline, diesel fuel, anti-freeze, ozone and ultraviolet light
to 3 feet.
• Seals intact under harsh conditions. Resistant to chemical
exposure. One-piece, molded body.
Cable Size Description
Conductor
Colors
Qty/
Pkg Item #
14/2 2x2 mm
2
Two Conductor Red, Yellow 1
249003
Installation Instructions for Twist-On Connectors
To install Ancor™ twist-on connectors, strip the cable to expose 9/16" of the center
conductor. Strip the outer jacket to expose 1/4" of the braid. Make sure that the
braided shield does not touch the inner conductor.
Insert the cable into the connector until the center conductor protrudes through the
center of the connector.
Twist the small knurled end while gently pushing the connector onto the cable until
resistance is felt. Crimp or solder the center conductor.
Cut off any excess. It is strongly recommended that a piece of Ancor™ 3/4" heat
shrink be installed on all exterior UHF connectors to waterproof and relieve strain.
Coax Cable Fittings
Description
Hex
Wire
Size
Qty/
Pkg Item #
BNC Connectors
Crimp-On Male Plug
.320/.250 RG59 1
203100
UHF Connectors
Twist UHF Male Plug (PL259)
RG58 1
202175
RG8X 1
202176
Solder On UHF Male Plug (PL259)
RG8U 1
200259
Double Female (PL258)
1
200258
Deck Bulkhead Feed (PL258)
1
200250
Manage:
Terminals
ABYC Recommends:
“Current-carrying conductors shall be routed as high as
practicable above the bilge water level and other areas where
water may accumulate. If conductors must be routed in the
bilge or other areas where water may accumulate, the
connections shall be watertight.”11.14.6.5.
