toll free 800.307.6702 MASTERVOLT | mastervolt.com MARINCO | marinco.com ANCOR | ancorproducts.com
Mass Sine
12/800
Mass Sine
12/1200
Mass Sine
12/2000
Mass Sine Ultra
12/3500
Item # 230V
24010800
24011200
24012000
26013500
Item # 120V
—
—
25012000
—
General Specifications
Nominal battery voltage
12V
12V
12V
12V
Minimum battery capacity
>100 Ah
>150 Ah
>200 Ah
>600 Ah
Output voltage (± 5%)
230V – 50Hz (± 0 .01Hz)
230V – 50Hz (± 0 .01Hz)
230V – 50Hz (± 0 .01Hz)
230V – 50Hz (± 0 .01Hz)
P30 power at 40°C, cos phi 1
800 W
1200 W
2000 W
3500 W
Continuous power at 40°C, cos phi 1
650 W
1000 W
1800 W
3500 W
Peak load
1600 W
2400 W
4000 W
7000 W
Output waveform
true sine
true sine
true sine
true sine
Efficiency
92%
92%
92%
93%
Display/read-out
LED display
LED display
LED display
LED display
Parallel configuration
no
no
no
yes, up to 10 units
3-Phase configuration
no
no
no
yes
Dimensions, hxwxd
12.8"x8.7"x4.4"
325x220x111 mm
13.4"x10.3"x5.1"
340x261x130 mm
16.5"x12.5"x5.4"
420x318x136 mm
18.6"x12.5"x6.9"
472x318x175 mm
Weight
3.9 kg / 8.6 lbs
8 kg / 17.4 lbs
14.6 kg / 32.2 lbs
15 kg / 33.1 lbs
Approvals
CE, E-mark, ABYC A-31 CE, E-mark, ABYC A-31 CE, E-mark, ABYC A-31 CE, E-mark, ABYC A-31
Technical Specification
Technology
HF switch mode
HF switch mode
HF switch mode
V6 HF switch mode
Low battery voltage, switches off at
10V, ± 0.5V
10V, ± 0.5V
10V, ± 0.5V
10V, dynamic window
Low battery voltage, switches on at
11V, ± 0.5V
11V, ± 0.5V
11V, ± 0.5V
11V, ± 0.5V
High battery voltage, switches off at
15.5V, ± 0.5V
15.5V, ± 0.5V
15.5V, ± 0.5V
15.5V, ± 0.5V
High battery voltage, switches on at
14.5V, ± 0.5V
14.5V, ± 0.5V
14.5V, ± 0.5V
14.5V, ± 0.5V
Max. ripple on DC (battery)
5% RMS
5% RMS
5% RMS
5% RMS
Input current (nominal load)
73A
110A
183A
275A
No load power consumption:
• ‘on’ mode (230V)
• stand-by (scan mode)
470 mA – 5.6 W
65 mA – 0.8 W
450 mA – 5 W
43 mA – 0.5 W
480 mA – 6 W
50 mA – 0.6 W
480 mA – 6 W
50 mA – 0.6 W
Minimal DC fuse (slow blow)**
100A
150A
250A
400A
Minimal cable size
25 mm
2
50 mm
2
70 mm
2
95 mm
2
Harmonic distortion typical
<5%
<5%
<5%
<5%
Cos Phi
all power factors allowed all power factors allowed all power factors allowed all power factors allowed
Temperature range (ambient temp.)
-25°C–80°C, >40°C derating -13°F–176°F, >104°F derating
Cooling
natural/forced
natural/forced
natural/forced
natural/forced
Sound level
48 dBA at 1 mtr
48 dBA at 1 mtr
48 dBA at 1 mtr
48 dBA at 1 mtr
Protection degree
IP23
IP23
IP23
IP23
Protections
over temperature, over load, short circuit, high battery, low battery
MasterBus compatible
with MB Inverter Interface
or AC power analyzer
with MB Inverter Interface
or AC power analyzer
with MB Inverter Interface
or AC power analyzer
yes
AC connection
internal
internal
internal
internal
Options
Model C4-RI
option
option
option
n.a.
70404110
Remote control on/off for the Mass Sine sine wave inverter.
MasterView Easy
option
option
option
option
77010305
Touch screen panel for reading charge status, current fold-back and/or Power Sharing setting.
Masterlink/MICC
option
option
option
n.a.
70403105
Battery consumption meter for 2 batteries, 12/24V DC with LCD read-out, remote control for Mass Sine inverter and Mass battery...
MasterBus Inverter Interface
option
option
option
n.a.
77030700
Integrates the Mass Sine inverter in a MasterBus network in a MasterBus network.
AC power analyser
option
option
option
n.a.
77031200
Integrates the Mass Sine inverter in a MasterBus network and measures the AC voltage, current and power.
Transfer system
The Masterswitch and Systemswitch can be connected to all inverters.
* Also available in 60 Hz: 1500 W model: Item # 24121500 2500 W model: Item # 24122500 5000 W model: Item # 24195100
** DC fuse depends on the cable size.
Convert:

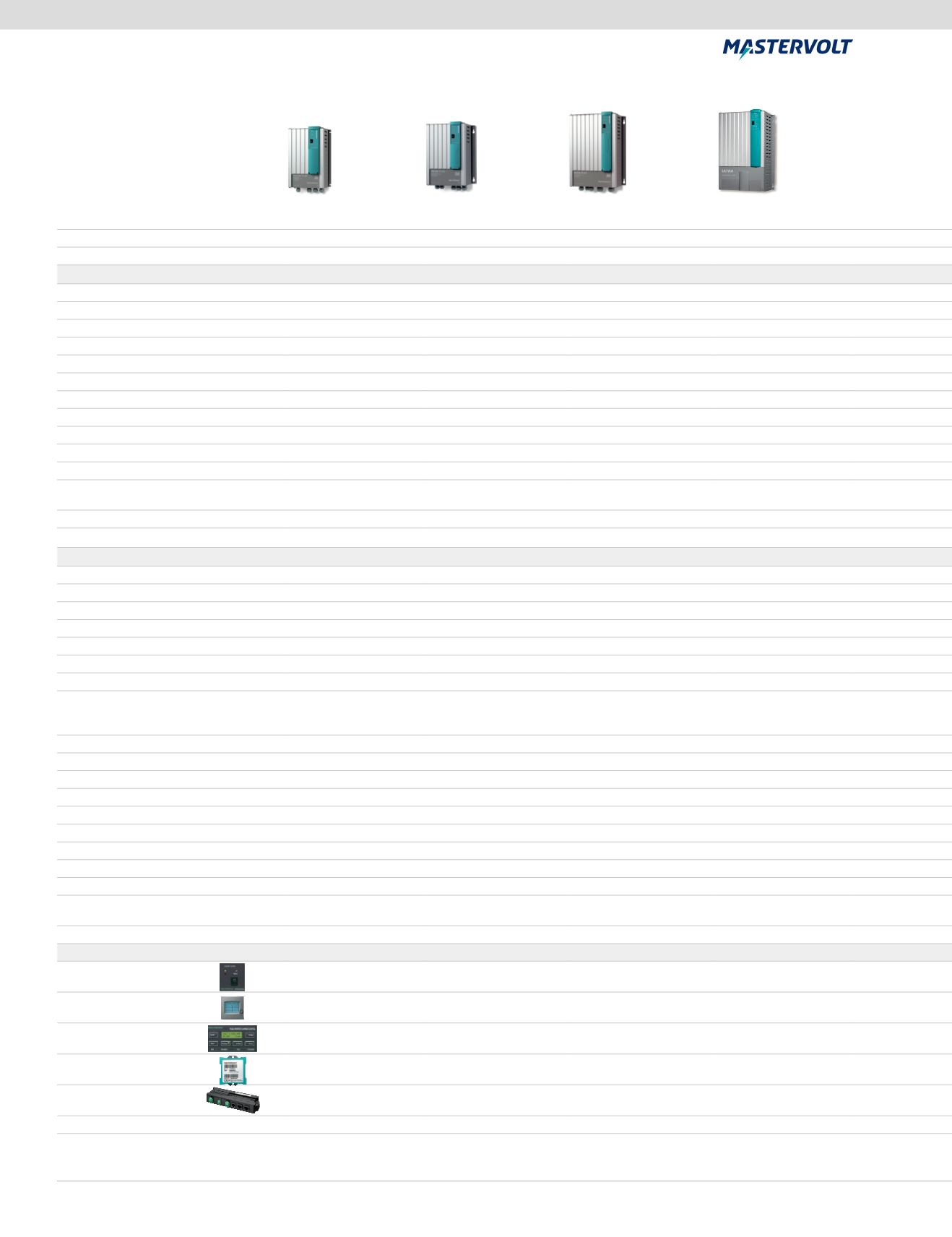

Mass Sine Specifications – 230V / 120V
Available
Q1 2015
