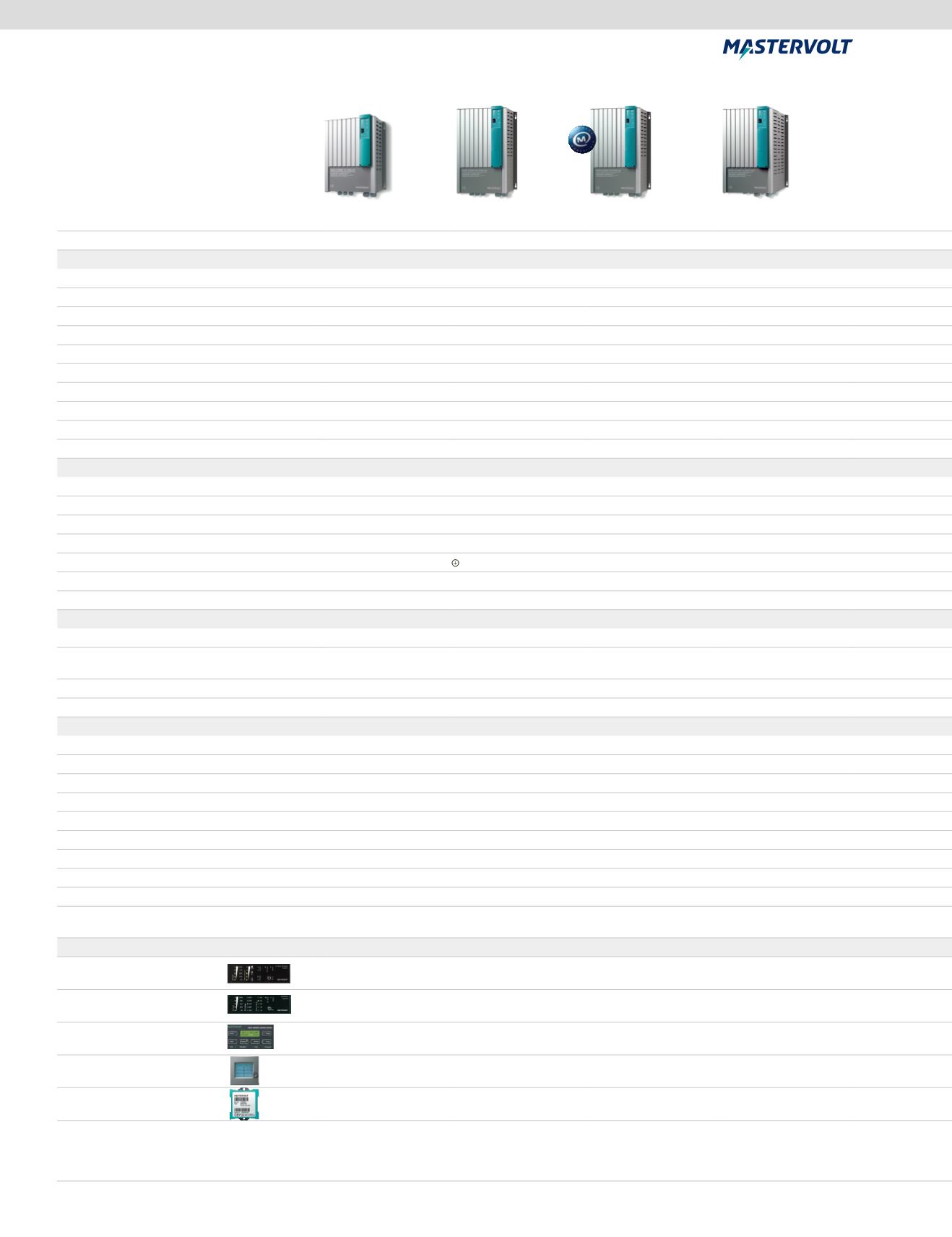

Mass Combi Specifications – 230V
Mass Combi
12/1200-60
Mass Combi
12/2000-100
Mass Combi
12/2500-100
Mass Combi
12/4000-200
Item #
36011205
36012005
36012505
36014005
General Specifications (sine wave inverter)
Nominal DC voltage
12V (10–15V)
12V (10–15V)
12V (10–15V)
12V (10–15V)
Continuous power at 25°C/77°F, cos phi 1
1200 W - 5.3A
2000 W - 8.7A
2500 W - 10.9A
3750 W - 16.5A
Surge capability (5 sec, resistive)
2400 W - 10.5A
4000 W - 17.5A
5000 W - 21.8A
7500 W - 32A
Parallel use (to double the power)
no
yes
yes
no
Parallel with shore/generator (for more power)
yes
yes
yes
yes
Output voltage (± 5%)
230V – 50Hz, ±0,05% (60Hz adjustable, ±0,05%)
Output waveform
true sine
true sine
true sine
true sine
Efficiency
90%
90% 90%
90%
DC consumption at 230V
<9 W
<9 W
<9 W
<9 W
Search mode consumption
0.5 W
0.5 W
0.5 W
1 W
General Specifications (battery charger)
Nominal input voltage
230V (180–265V) – 45–65Hz
Max. charge current (adjustable)
60A at 14.25V
100A at 14.25V
100A at 14.25V
200A at 14.25V
Primary AC consumption (full charge)
1035 W - 4.5A
1656 W - 7.2A
1656 W – 7.2A
3312 W - 14.4A
Charge voltage 25°C/77°F (absorption/float)*
14.25/13.25V
14.25/13.25V
14.25/13.25V
14.25/13.25V
Charge characteristic
IUoUo, automatic / 3-step for gel/AGM/wet/Lithium Ion
Second charge output, 3-step
5A
5A
5A
2x 5A
Temperature sensor battery
delivered as standard with 6 metre cable and telejack plug
General Specifications
Display/read-out
LED display
LED display
LED display
LED display
Dimensions, hxwxd
14.6"x12.5"x5.6"
371x318x143 mm
19.5"x12.5"x6.1"
496x318x156 mm
19.5"x12.5"x6.1"
496x318x156 mm
19.5"x12.5"x11"
496x318x279 mm
Weight
7.8 kg / 17.2 lbs
11 kg / 24.3 lbs
11 kg / 24.3 lbs
21 kg / 46.3 lbs
Approvals
CE, E-mark, ABYC A-31 CE, E-mark, ABYC A-31 CE, E-mark, ABYC A-31 CE, E-mark, ABYC A-31
Technical Specifications
Max. current first output
50A
50A
50A
50A
Max. current shortbreak / inverter output
25A
25A
25A
25A
Transfer time
10 ms
10 ms
10 ms
10 ms
Grounding
yes, adjustably by DIP switch
yes, adjustably by DIP switch
Temperature range (ambient temp.)
-25°C–80°C, >25°C derating / -13°F–176°F, > 77°F derating
Cooling
maintenance free vario fans
maintenance free vario fans
Sound level
≤
48 dBA at 1 mtr
≤
48 dBA at 1 mtr
≤
48 dBA at 1 mtr
≤
48 dBA at 1 mtr
Protection degree
IP23
IP23
IP23
IP23
Protections
over temperature, over load, short circuit, high battery, low battery
MasterBus compatible
yes, with MasterBus
Combi Interface
yes, with MasterBus
Combi Interface
yes, with MasterBus
Combi Interface
yes, with MasterBus
Combi Interface
Options
Remote ICC
option
delivered as standard option
delivered as standard
70405000
Indication of DC consumption, charge phase, AC present, failure, with on/off/’charger only’ switch & 6 metre cable.
Remote APC
option
option
option
option
70405010
Indication of AC consumption, AC voltage, fuse value of the shore/generator connection, with Power Sharing.
Masterlink/MICC
option
option
option
option
70403105
Battery consumption metre for 2 batteries, 12/24V DC with LCD read-out, remote control for Mass Sine...
MasterView Easy
option
option
option
option
77010305
In combination with a Mastervolt Combi Interface. Touch screen panel for reading charge status, current fold-back...
MasterBus Combi Interface
option
option
delivered as standard option
77030475
Integrates the Mass Combi in a MasterBus network.
* Only available in 120V version, the 230V model has been replaced by the Mass Combi Ultra 24/3500-100 (Item # 38023500).
