Mac 24/12-20
Magic 24/12-20
Magic 24/24-20
Item #
81200100
81300100
81300200
Specifications Input
Nominal input voltage
24V
24V
24V
Input range
20–32V DC
19–32V DC
19–32V DC
Input range, 3-step charge mode
24–32V DC
24–32V DC
24–32V DC
Lower input set point
20V DC*
20V DC*
20V DC*
Delay lower input set point
30 sec.*
30 sec.*
30 sec.*
Specifications Output
Nominal output voltage
13.6V DC*
13.6V DC*
27.2V DC*
Voltage adjustable*
10–15V DC
10–15V DC
20–28.5V DC
Output voltage dimmer*
4–13V DC
4–13V DC
8–26V DC
Stabilized
2% at extremes of temperatures, load and input
Ripple
max. 1% peak peak
max. 1% peak peak
max. 1% peak peak
Power (max./nominal)
300 / 270 W
300 / 300 W
580 / 580 W
Max. current
20A
20A
20A
Parallel configuration
yes, up to 10
yes, up to 10
yes, up to 10
Charge current – 3-step mode
16A
16A
16A
General Specifications
Galvanic isolation
no
yes
yes
Voltage limited
yes
yes
yes
Efficiency
>90% (at nominal input voltage, full load); 92% peak
Protected against over load
yes
yes
yes
Protected against over temperature
yes
yes
yes
Dimmer function
yes, by external momentary switch via fast-on connection, to be activated by DIP-switch setting
Alarm contact
no
yes (fast-on connector)
yes (fast-on connector)
Dimensions, hxwxd
7.5"x5.1"x2.4"
190x130x61 mm
8.9"x6.1"x3.2"
227x154x81 mm
8.9"x6.1"x3.2"
227x154x81 mm
Weight
1.0 kg / 2.2 lbs
1.8 kg / 4 lbs
1.8 kg / 4 lbs
Approvals
CE
CE
CE
Technical Specifications
3-Step charge option
yes (DIP switch settings)
yes (DIP switch settings)
yes (DIP switch settings)
DC consumption
<30 mA
<115 mA
<115 mA
Connections input/output
screw terminals, maximum wire size 16 mm
2
/ AWG5
Temperature range (ambient temp.)
-25°C–80°C, >40°C derating / -13°F–176°F, >104°F derating
Cooling
natural cooling
maintenance free vario fans
Sound level
<30 dBA at 1 mtr
<48 dBA at 1 mtr
<48 dBA at 1 mtr
Protection degree
IP21
IP21
IP21
MasterBus compatible
yes, in combination with a MasterBus Serial Interface (Item #
77030450
)
Options
PC-Link
option
option
option
21730300
Interface between Magic converter and PC, in combination with the MasterAdjust software (free to download).
The PC-Link can be directly connected to a computer serial port.
MasterView Easy
option
option
option
77010305
Touch screen panel for reading status and dimmer function settings.
MasterBus Serial Interface
option
option
option
77030450
Integrates the Mac & Magic converters in a MasterBus network.
* Adjustable with MasterAdjust software.
For detailed specifications, dimensional drawings, 3D files, images, certificates and manuals see
mastervolt.com.
Convert:

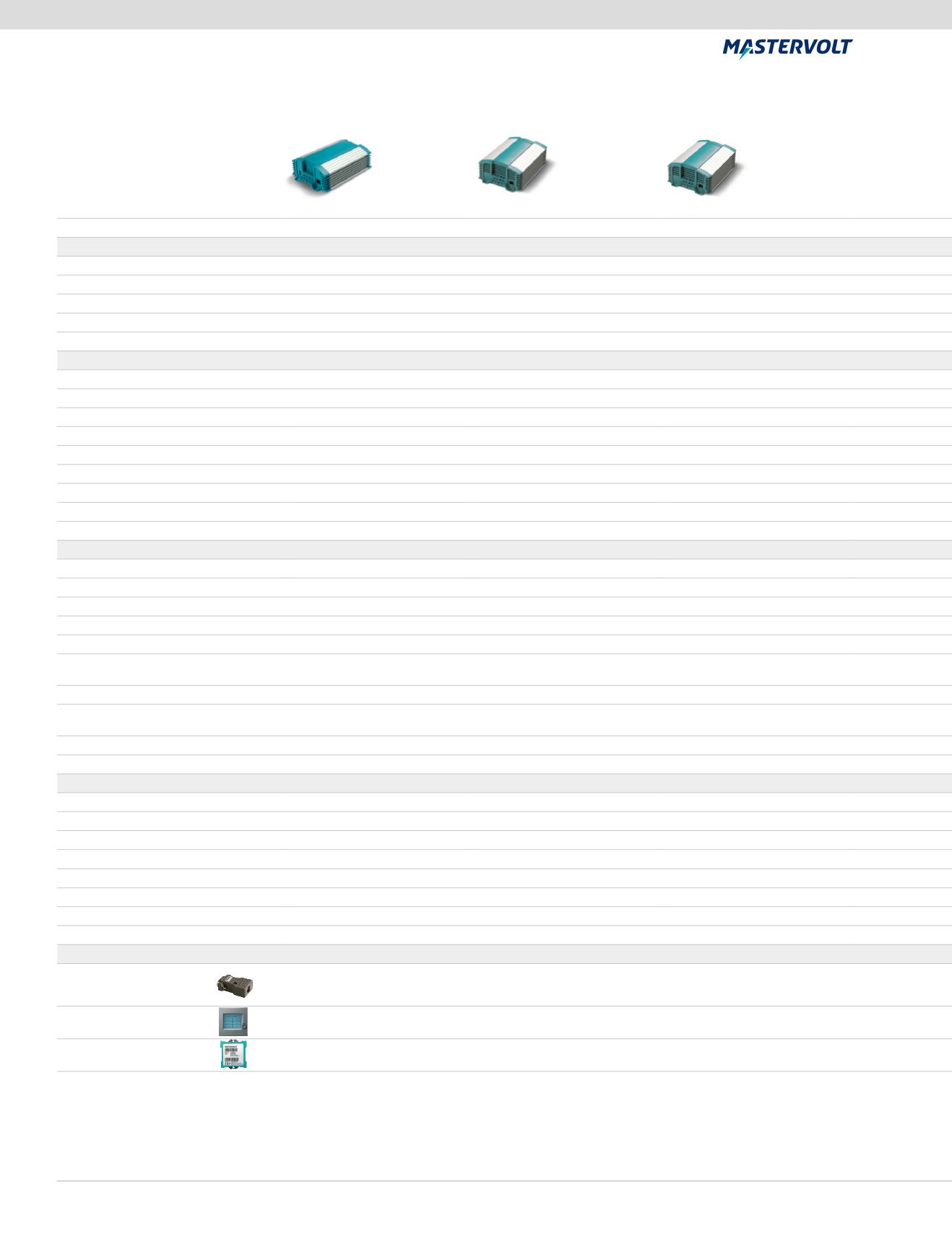

Mac & Magic Specifications
