Inverter / Charger Combinations
Convert:

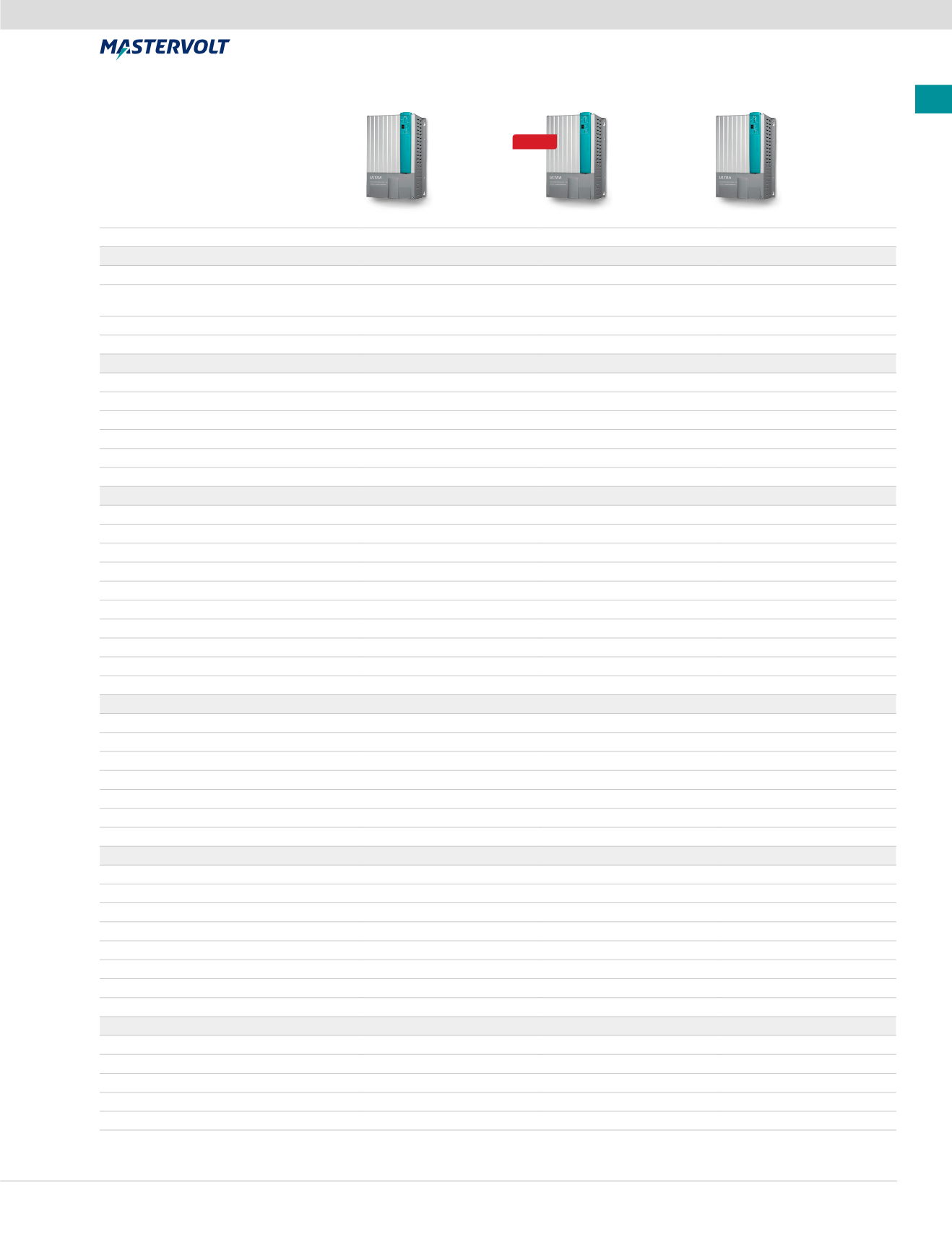

Mass Combi Ultra Specifications – 230V
12/3000-150
24/3500-100
48/3500-50
Item #
38013000
38023500
38043500
General Specifications
Display/read-out
LED display
LED display
LED display
Dimensions, hxwxd
18.6"x12.5"x6.9"
472x318x175 mm
18.6"x12.5"x6.9"
472x318x175 mm
18.6"x12.5"x6.9"
472x318x175 mm
Weight
15 kg
15,3 kg
15 kg
Approvals
CE, ABYC
CE, ABYC
CE, ABYC
Technical Specs
Charge characteristic
IUoU, automatic 3-step+ for AGM/gel/Lithium Ion/flooded/flooded traction/spiral/NiCad
Ground relay
adjustable
adjustable
adjustable
Temperature range (ambient temp.)
-25°C to 60°C, derating > 40 °C / -13°F to 140°F, derating > 104 °F
Protection degree
IP23
IP23
IP23
Protections
over temperature, AC over load, AC short circuit, DC short circuit, high battery, low battery
MasterBus compatible
yes
yes
yes
Sine Wave Inverter Specs
Nom. DC voltage
12V (9.5–15.5V)
24V (19–32V)
48V (38–62V)
Output voltage (± 2%)
230V - 50/60 Hz (± 0.005%) adjustable
Output waveform
true sine wave, Thd < 1% under standard conditions
Cont. power at 40 °C, cos phi 1
3000 W
3500 W
3500 W
Surge capability
5400 W
7000 W
7000 W
Parallel configuration
yes, up to 10 standard
yes, up to 10 standard
yes, up to 10 standard
3-Phase configuration
yes
yes
yes
Max. efficiency
90%
91%
93%
Max. ripple on DC (battery)
< 10%
< 10%
< 10%
No-load power consumption (ON/inverter OFF/OFF) 16 W / 2 W / 0 W
16 W / 2 W / 0 W
16 W / 2 W / 0 W
Battery Charger Specs
Nom. input voltage
180–275V
180–275V
180–275V
Nom. battery voltage
12V
24V
48V
Max. charge current at 40 °C
150A at 14.25V
100A at 28.5V
50A at 57V
Charge method secondary charger
IUoU, automatic 3-step+ or constant voltage
Secondary charger output voltage
12V
12/24V adjustable
12/24V adjustable
Secondary charger output current
10A
10A
10A
Temperature sensor battery
yes, included
yes, included
yes, included
Transfer System Specs
Generator input (switched)
50A
50A
50A
Mains input (switched)
30A
30A
30A
AC output 1
67A
67A
67A
AC output 2 (switched)
50A
50A
50A
Transfer time
seamless (UPS, < 1 ms)
seamless (UPS, < 1 ms)
seamless (UPS, < 1 ms)
Transfer voltage range (adjustable)
180–275V
180–275V
180–275V
Transfer frequency range (adjustable)
35–65 Hz
35–65 Hz
35–65 Hz
Power Sharing / Generator / Mains Support
yes
yes
yes
Solar Input DC Specs
Input voltage range
15–100V
15–100V
15–100V
Max. PV power
500 Wp
500 Wp
500 Wp
Max. input current
18A
18A
18A
Max. charge current
30A at 14.25V
15A at 28.5V
7.5A at 57V
MPP voltage range at nom. power
35-80V
35-80V
35-80V
Available
Q1 2015
Available
Q1 2015
NEW
NEW
NEW
NEW
