toll free 800.334.5214 ACME ELECTRIC |
hubbell-acmeelectric.comP a n e l - T r a n
®
Z o n e P o w e r C e n t e r s
CONVENIENT PACKAGE SAVES COSTS AND SPACE

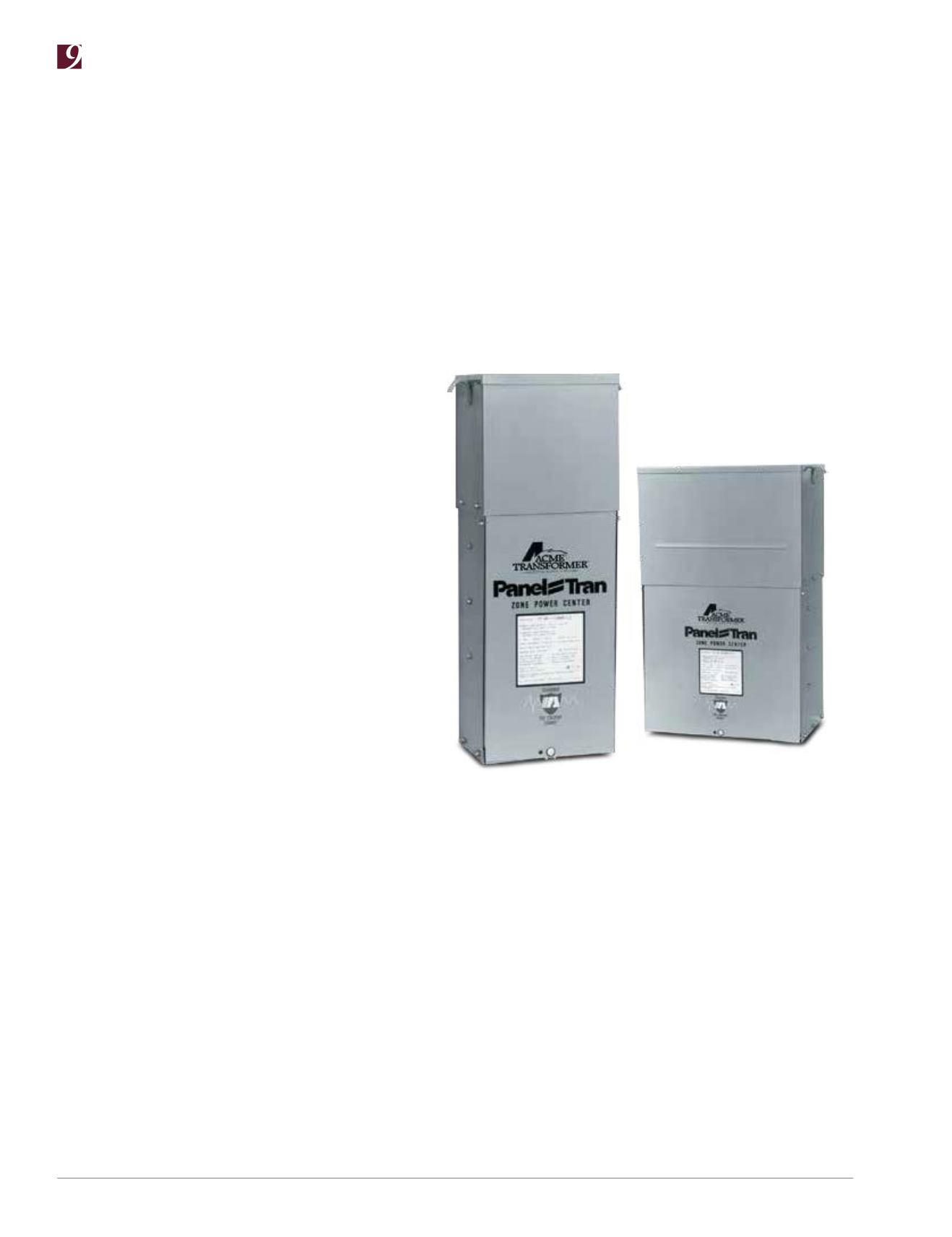

Acme’s Panel-Tran
®
Power Center is a pre-wired combination of a primary breaker disconnect, dry-type shielded transformer,
secondary breaker disconnect and a secondary power panel all in one convenient package.
You save time, space and money by not having to individually assemble, mount and wire these components. Simply add the
breakers of your choice and you’re ready to go.
Features
Q
600 volt class and below
Q
Single and three phase, 480 and 600 volt primary, 60 Hz
Q
Primary and secondary main circuit breakers provided
Q
UL-3R enclosure
Q
5 through 25 kVA single phase, 9 through 30 kVA
three phase
Q
Meets or exceeds UL, CSA, NEMA, ANSI and
OSHA Standards
Q
UL Listed and CSA Certified
Q
Ten-year limited warranty
Q
Shielded for cleaner power
Q
Available in 304 stainless steel
Q
Available with bolt-in or snap-in breakers
304 STAINLESS STEEL PANEL-TRANS
®
Features
Q
3R Enclosure
Q
Abundant knockouts provided
Q
Encapsulated construction
Q
Single phase: 5 – 25 kVA
Q
Three phase: 9 – 30 kVA
Applications
Q
Harsh industrial locations
Q
Corrosive chemical exposure
Q
Waste water treatment facilities
Q
Coastal or marine applications with high salt spray level
Q
Any application where painted cold roll steel is not adequate
ELECTRICAL CHARACTERISTICS
Single Phase
Primary Voltage: 480 Volts; 60 Hz, 2 – 5% BNFC taps
Secondary Voltage: 240/120 Volts Single Phase, 60 Hz, Three wire system
kVA’s Available: 5, 7.5, 10, 15 and 25 kVA
Optional: 600 volts primary voltage available
Three Phase
Primary Voltage: 480 Volts Delta; 60 Hz with 2 – 5% BNFC taps
Secondary Voltage: 208Y/120 Volts Three Phase, 60 Hz, Four wire system
kVA’s Available: 9, 15, 22.5 and 30 kVA
Insulation Class: 180°C, UL recognized system, 115°C rise
Regulation: 2 – 3% at unity power factor
Optional: 600 volts primary voltage available
