E l e c t r i c a l E n c l o s u r e s Enclosure Definitions And Classifications Technical Data
196 toll free 800.334.5214 ACME ELECTRIC |
1.50
0.75
1.41
Ø0.41
OPTIONAL MOUNTING
FOOT (ONLY BOTTOM CAN BE
MOUNTED THIS WAY)
ALTERNATE POSITION
(TOP MTF. FT. MUST BE
MOUNTED THIS WAY) ENCLOSURE
DETAIL A
(OPTIONAL MOUNTING FOOT)
H
W
2.00
C
F
D
20°
A
A
A
B 0.90
TYP.
0.90
TYP.
0.75
TYP.
E
0.75
TYP.
Ø0.44 TYP.
MOUNTING
HOLES
OPTIONAL SUB-PANEL
(Order Separately)
OMIT TWO MIDDLE
STUDS IF W IS LESS THAN 32.00"
OMIT TWO MIDDLE
STUDS IF H IS LESS THAN 31.00"
SEE DETAIL A

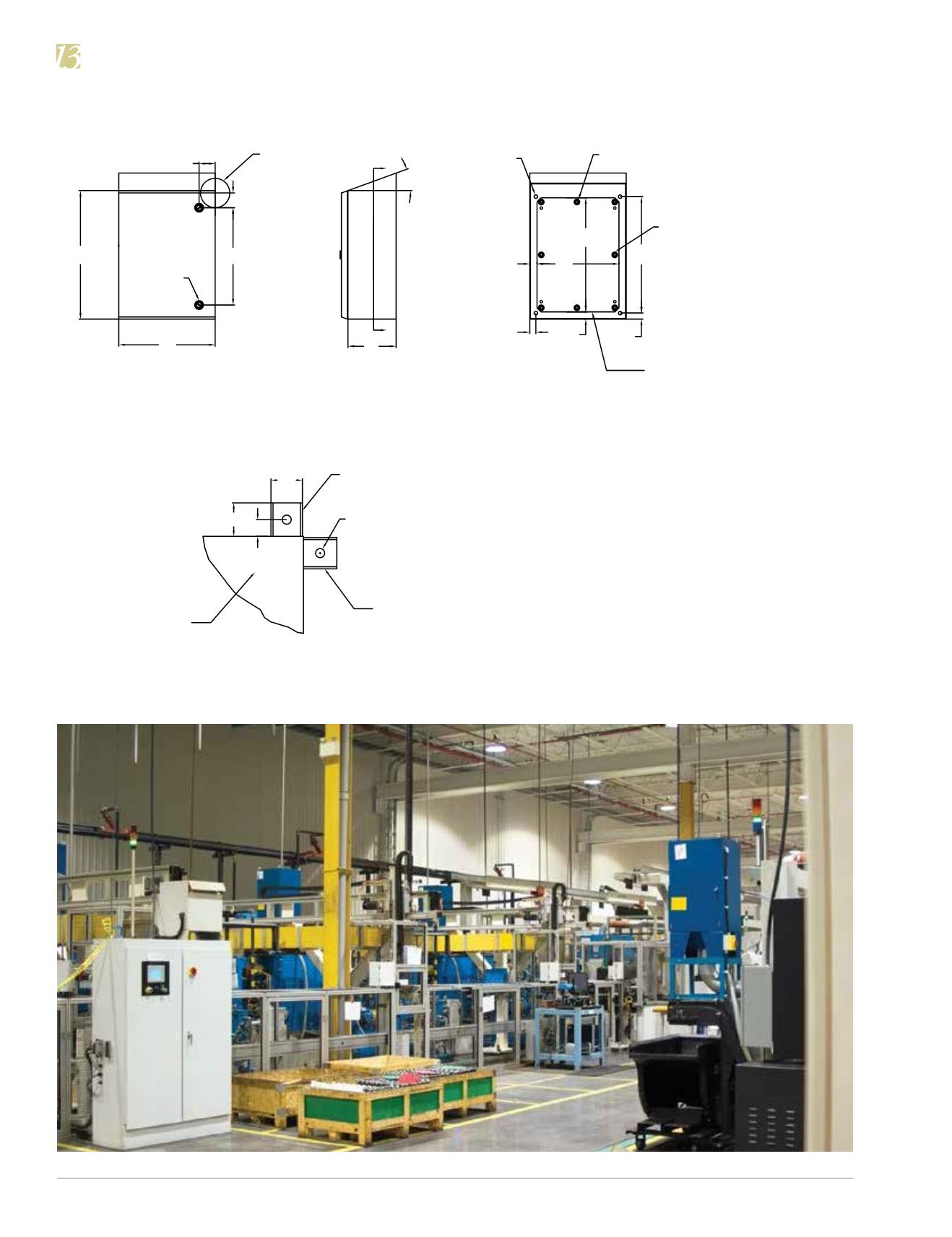

SECTION A-A FRONT VIEW RIGHT VIEW
QUARTER
TURN
LATCH
Notes:
1. Large Print Pocket (8 X 10) is
furnished if H=20.00" or more
and W=20.00" or more
Otherwise, small (6 X 6) print
pocket is provided.
2. Two Hinges provided with
H<36.00". Three Hinges
provided when H=36.00" or
greater. Four Hinges provided
when H=48.00" or greater.
