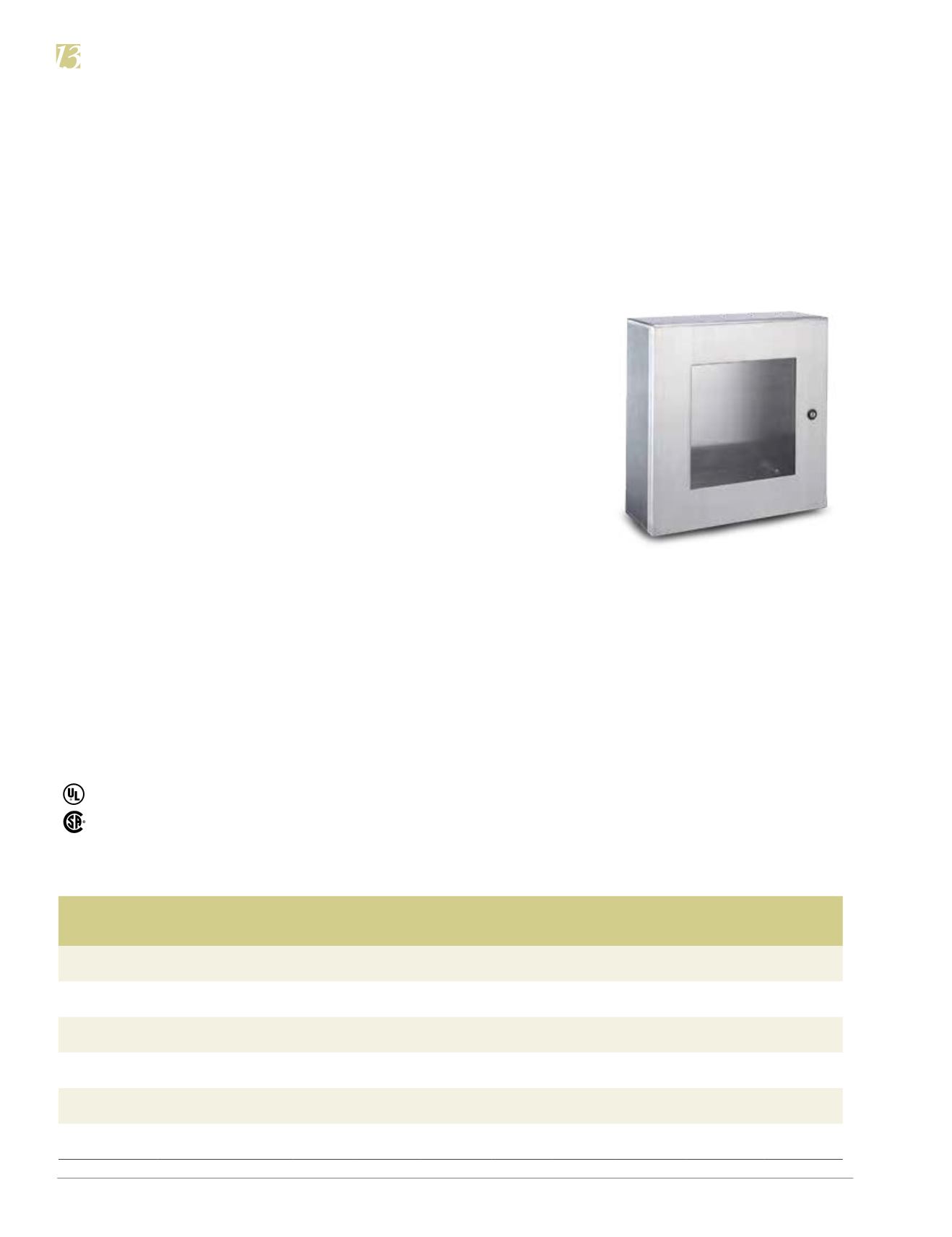

N412WSSC ULTIMATE SERIES SINGLE DOOR WITH WINDOW STAINLESS ENCLOSURES
Catalog Number
Body/Door
Steel Gauge
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
Viewable
Window Area
(Inches)(Cm.)
Back Panel Catalog
White G
Back Panel
Size A&B
(Inches)(Cm.)
C
(Inches)(Cm.)
E
(Inches)(Cm.)
N412121206WSSC 14/14 12.00
(30.5)
12.00
(30.5)
6.00
(15.2)
7.50 x 6.25
(191 x 159) NP1212C NP1212CG 10.2x10.2(25.9x25.9)
6.00
(15.2) —
N412161206WSSC 14/14 16.00
(40.6)
12.00
(30.5)
6.00
(15.2)
1.50 x 6.25
(292 x 159) NP1612C NP1612CG 14.2x10.2(36.1x25.9)
8.00
(20.3) —
N412201606WSSC 14/14 20.00
(50.8)
16.00
(40.6)
6.00
(15.2)
15.50 x 10.25
(394 x 260) NP2016C NP2016CG 18.2x14.2(46.2x36.1)
10.00
(25.4) —
N412202006WSSC 14/14 20.00
(50.8)
20.00
(50.8)
6.00
(15.2)
15.50 x 14.25
(394 x 362) NP2020C NP2020CG 18.2x18.2(46.2x46.2)
10.00
(25.4) —
N412242006WSSC 14/14 24.0
(61.0)
20.00
(50.8)
6.00
(15.2)
19.50 x 14.25
(495 x 362) NP2420C NP2420CG 22.2x18.2(56.4x46.2)
12.00
(30.5) —
N412242406WSSC 14/14 24.0
(61.0)
24.0
(61.0)
6.00
(15.2)
19.50 x 18.25
(495 x 464) NP2424C NP2424CG 22.2x22.2(56.4x56.4)
4.00
(10.2)
16.00
(40.6)
UL File E64791
CSA File LL66078
Industry Standards
UL 508, Types 4, 4X, 12 & 13
CSA Certified, Types 4, 4X, 12 & 13
NEMA/EEMAC Type 4, 4X, 12 & 13
Wall mounting brackets required to
maintain UL /CSA external mounting
requirements.
N412 - WSSC ULTIMATE SERIES ENCLOSURES
NEMA 4X SINGLE DOOR WALL-MOUNT WITH WINDOW
Applications
N412WSSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic
components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are
present. It is typically used in the following areas where corrosion-resistant protection is needed: food processing plants,
pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing, and waste water treatment facili-
ties. Streamlined styling, flush latching, and attractive Stainless Steel finish complement any high tech electronic equipment.
Construction
Q Bodies and doors fabricated from 14 gauge 304 Stainless Steel
Q Continuously Plasma welded seams
Q Increased tub opening for better access
Q Concealed hinges
Q Plexiglass viewing window
Q Doors are interchangeable and easily removable
Q Grounding provisions provided (tub only)
Q 1/4-turn semi-flush oil tight latches are supplied to hold door securely closed
Q Print pocket is provided
Q Doors are sealed with poured-in-place polyurethane gasket**
Q Mounting holes in rear of enclosure
Finish
Q All exterior surfaces have a smooth grained finish
