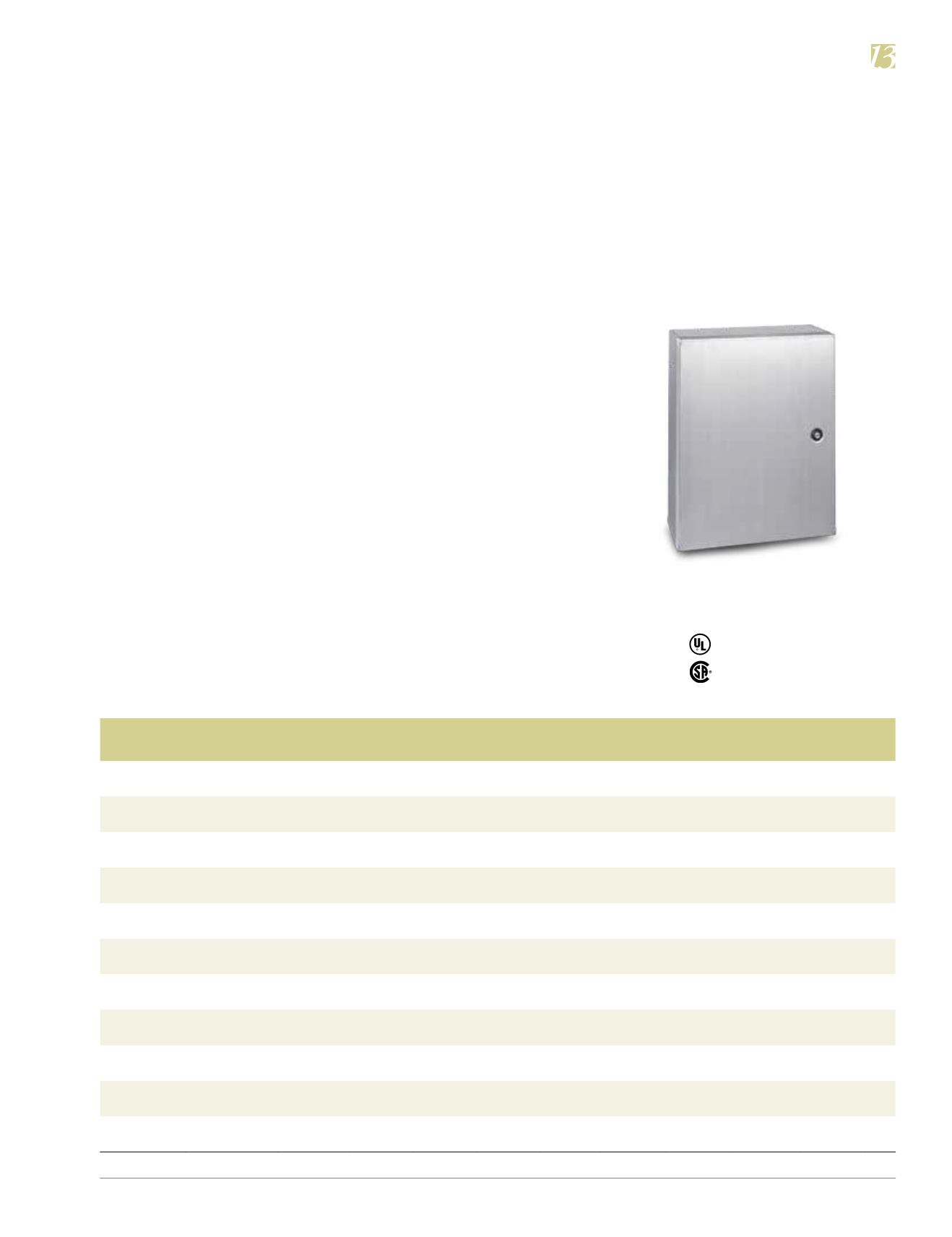

N412-SSC ULTIMATE SERIES SINGLE DOOR STAINLESS ENCLOSURES
Catalog Number
304 SS 316L SS
Body/Door
Steel Gauge
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
Back Panel Catalog Number*
White 304 SS G ”
Back Panel
Size A&B
(Inches)(Cm.)
C
(Inches)(Cm.) E
N412121206SSC N412121206SSAC 14/14 12.0
(30.5)
12.0
(30.5)
6.0
(15.2) NP1212C — NP1212CG 10.2x10.2(25.9x25.9) 6.0 (15.2) —
N412161206SSC N412161206SSAC 14/14 16.0
(40.6)
12.0
(30.5)
6.0
(15.2) NP1612C NP1612SSC NP1612CG 14.2x10.2(36.1x25.9) 8.0 (20.3) —
N412161606SSC N412161606SSAC 14/14 16.0
(40.6)
16.0
(40.6
6.0
(15.2) NP1616C NP1616SSC NP1616CG 14.2x14.2(36.1x36.1) 8.0 (20.3) —
N412201606SSC N412201606SSAC 14/14 20.0
(50.8)
16.0
(40.6)
6.0
(15.2) NP2016C NP2016SSC NP2016CG 18.2x14.2(46.2x36.1) 10.0 (25.4) —
N412202006SSC N412202006SSAC 14/14 20.0
(50.8)
20.0
(50.8)
6.0
(15.2) NP2020C NP2020SSC NP2020CG 18.2x18.2(46.2x46.2) 10.0 (25.4) —
N412161208SSC N412161208SSAC 14/14 16.0
(40.6)
12.0
(30.5)
8.0
(20.3) NP1612C NP1612SSC NP1612CG 14.2x10.2(36.1x25.9) 8.0 (20.3) —
N412161608SSC N412161608SSAC 14/14 16.0
(40.6)
16.0
(40.6)
8.0
(20.3) NP1616C NP1616SSC NP1616CG 14.2x14.2(36.1x36.1) 8.0 (20.3) —
N412162008SSC N412162008SSAC 14/14 16.0
(40.6)
20.0
(50.8)
8.0
(20.3) NP2016C NP2016SSC NP2016CG 14.2x18.2(36.1x46.2) 8.0 (20.3) —
N412201608SSC N412201608SSAC 14/14 20.0
(50.8)
16.0
(40.6)
8.0
20.3) NP2016C NP2016SSC NP2016CG 18.2x14.2(46.2x36.1) 10.0 (25.4) —
N412202008SSC N412202008SSAC 14/14 20.0
(50.8)
20.0
(50.8)
8.0
(20.3) NP2020C NP2020SSC NP2020CG 18.2x18.2(46.2x46.2) 10.0 (25.4) —
N412241608SSC N412241608SSAC 14/14 24.0
(61.0)
16.0
(40.6)
8.0
(20.3) NP2416C NP2416SSC NP2416CG 22.2x14.2(56.4x36.1) 10.0 (25.4) —
Industry Standards
UL 508, Types 4, 4X, 12 & 13
CSA Certified, Types 4, 4X, 12 & 13
NEMA/EEMAC Type 4, 4X, 12 & 13
Wall mounting brackets required to
maintain UL /CSA external mounting
requirements.
N412 - SSC ULTIMATE SERIES ENCLOSURES
NEMA 4X SINGLE DOOR WALL-MOUNT
Applications
N412SSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic compo-
nents from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. It is
typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical
manufacturing facilities, petrochemical plants, pulp and paper processing, and waste water treatment facilities. Streamlined
styling, flush latching, and attractive Stainless Steel finish complement any high tech electronic equipment.
Construction
Q Bodies and doors fabricated from 14 gauge 304 or 316L Stainless Steel
Q Continuously Plasma welded seams
Q Increased tub opening for better access
Q Concealed hinges
Q Doors are interchangeable and easily removable
Q Ground stud located in door
Q 1/4-turn semi-flush oil tight latches are supplied to hold door securely closed
Q Print pocket is provided
Q Doors are sealed with poured-in-place polyurethane gasket**
Q Mounting holes in rear of enclosure
Finish
Q All exterior surfaces have a smooth
grained finish
