186 toll free 800.334.5214 ACME ELECTRIC |
E l e c t r i c a l E n c l o s u r e s

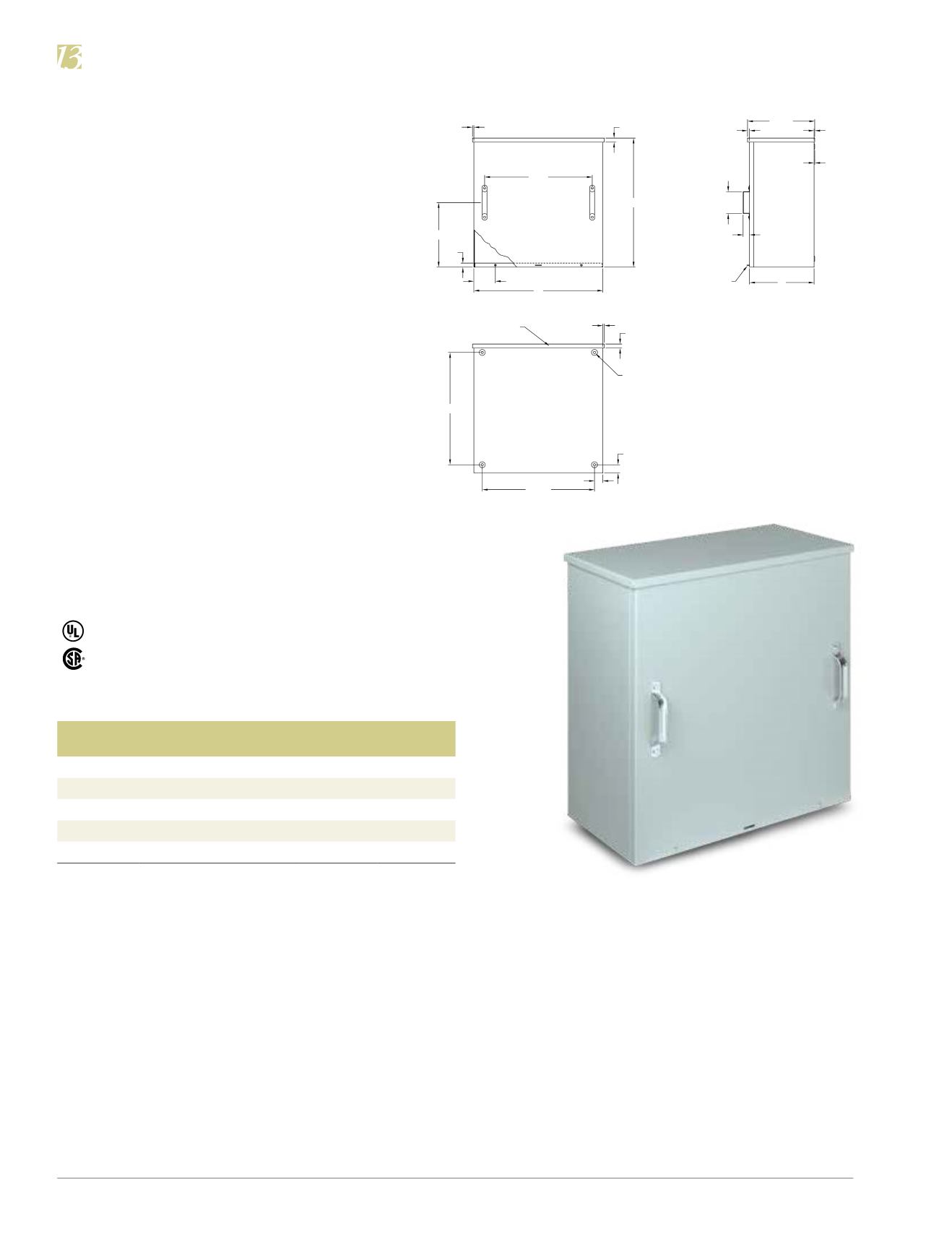

WCT SERIES ENCLOSURES
NEMA 3R SCREW COVER WALL-MOUNT
Applications
Designed for use as transformer
housings, junction boxes, and service boxes.
Construction
Q Drip shield top and smooth seamless sides and front
Q A slip-on removable cover is securely fastened with
plated screws located along bottom edge
Q No gasketing is required
Q Mounting holes on back of cabinet
Q Door handles provided
Q Hasp for padlocking and provisions for meter seal
are provided
Q Grounding provisions provided
Q For removal of cover, move downward, then outward
Finish
Q ANSI-61 gray polyester powder inside and out
Industry Standards
UL 50, Types 1 & 3R
CSA Certified, Type 1 & 3R
NEMA/EEMAC Type 1 & 3R
UL File E23553
CSA File LL66078
WCT SERIES SCREW COVER ENCLOSURES
Catalog
Number
Body/Door
Steel Gauge
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
WCT242412 14/14 24.00 (61.0) 24.00 (61.0) 12.00 (30.5)
WCT303012 12/12 30.00 (76.2) 30.00 (76.2) 12.00 (30.5)
WCT363012 12/12 36.00 (91.4) 30.00 (71.5) 12.00 (30.5)
WCT363612 12/12 36.00 (91.4) 36.00 (91.4) 12.00 (30.5)
WCT483616 12/12 48.00 (122.0) 36.00 (91.4) 16.00 (40.6)
RIGHTSIDE
REARVIEW
FRONTVIEW
0.13TYP
D+0.50
0.13 0.38
4.00
1.25
METERSEAL
HASPAND
D
0.25TYP
0.75
Ø 0.44TYP
DRIPSHIELD
H - 3.00
W - 3.00
1.56TYP
1.56TYP
W
4.00
H/2
0.75
20.00
H
0.75 0.25TYP
