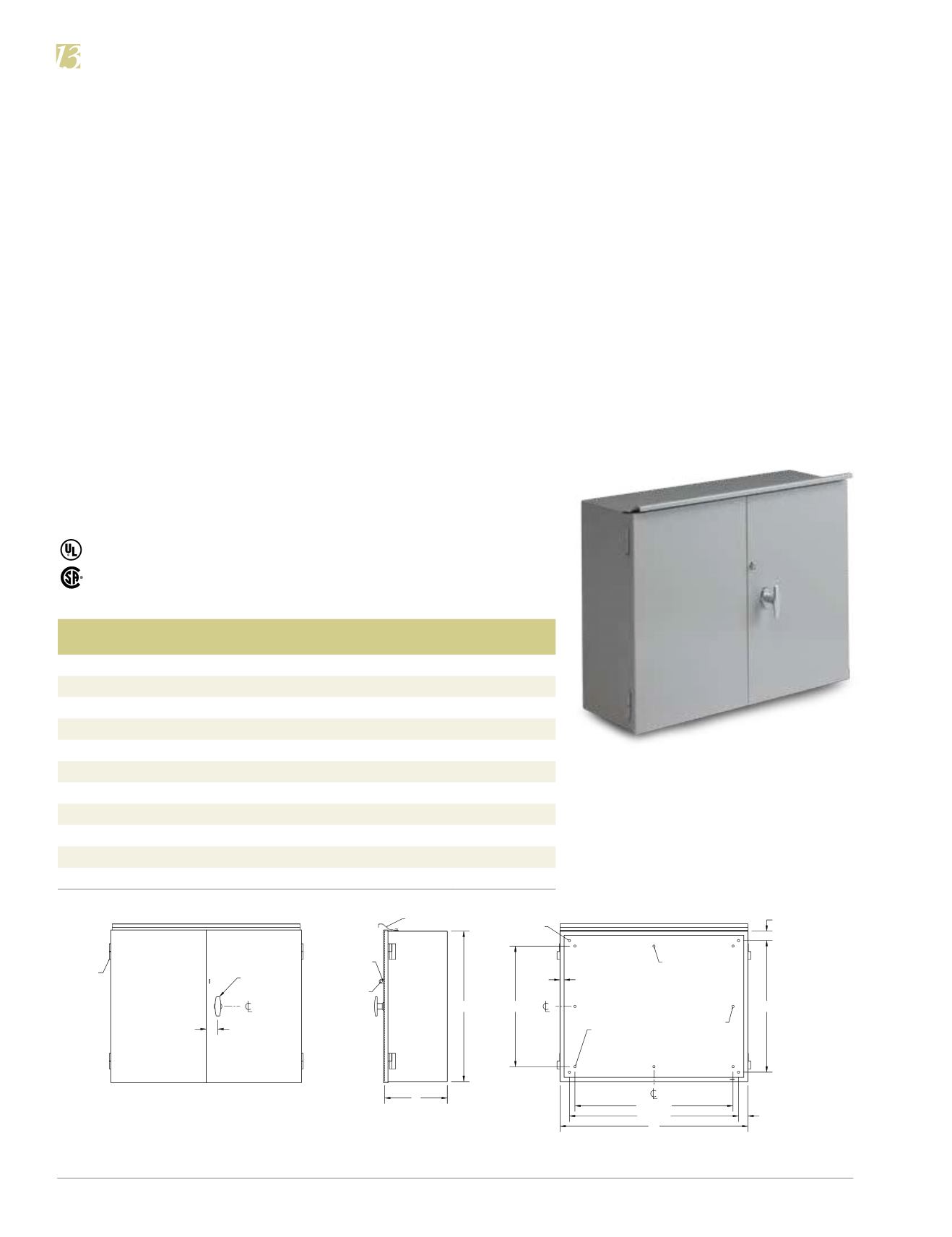

CT SERIES SINGLE DOOR HINGE COVER ENCLOSURES
Catalog
Number
Body/Door
Steel Gauge
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
Panel
Catalog Number*
CTDD302410 14 24.00 (61.0) 30.00 (76.2) 10.00 (25.4) WBP3024
CTDD303012 12 30.00 (76.2) 30.00 (76.2) 12.00 (30.5) WBP3030DD
CTDD303612 12 36.00 (91.4) 30.00 (76.2) 12.00 (30.5) WBP3630
CTDD362412 14 24.00 (61.0) 36.00 (91.4) 12.00 (30.5) WBP3624
CTDD363012 12 30.00 (76.2) 36.00 (91.4)) 12.00 (30.5) WBP3630
CTDD363212 12 32.00 (81.3) 36.00 (91.4) 12.00 (30.5) WBP3236DD
CTDD363612 12 36.00 (91.4) 36.00 (91.4)) 12.00 (30.5) WBP3636DD
CTDD363616 12 36.00 (91.4) 36.00 (91.4) 16.00 (40.6) WBP3636DD
CTDD443012 12 30.00 (76.2) 44.00 (76.2) 12.00 (30.5) WBP3044DD
CTDD424212 12 42.00 (106.7) 42.00 (106.7) 12.00 (30.5) WBP4242DD
CTDD484816 12 48.00 (121.9) 48.00 (121.9)) 16.00 (40.6) WBP4848DD
Note: Second numerical value of catalog # represents height.
CT SERIES ENCLOSURES
NEMA 3R DOUBLE DOOR HINGE COVER
Applications
Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay
and/or for terminal instrumentation.
Construction
Q Manufactured from 14 and 12 gauge carbon steel
Q Fully seam welded and ground smooth, with weep hole
Q Drip shield
Q Lift off hinges, gasketed doors
Q Supplied with non-locking “T” handle
Q Meter seal provisions
Q Mounting holes in back
Q Supplied with studs in back of enclosure
Finish
Q ANSI 61 polyester powder inside
and out
Industry Standards
UL Listed Type 3R
1.50
FRONT VIEW
(WITH COVER REMOVED)
LIFT-OFF
HINGES
1/4 TURN
3-POINT
TEE
HANDLE
1.88
DRIP SHIELD
ø 0.37 HOLE
FOR PAD-
LOCKING
ø 0.13 HOLE
FOR METER
SEAL
D
H
ø 0.38 TYP.
MOUNTING
HOLES
FLANGE
0.66 TYP.
H-4.75
3/8-16 PANEL
STUD TYP.
(PANEL NOT
INCLUDED)
OMIT MIDDLE
STUDS IF
W < 31.00
OMIT MIDDLE
STUDS IF
H < 31.00
1.50
H-3.00
W-4.75
W-3.00
W
