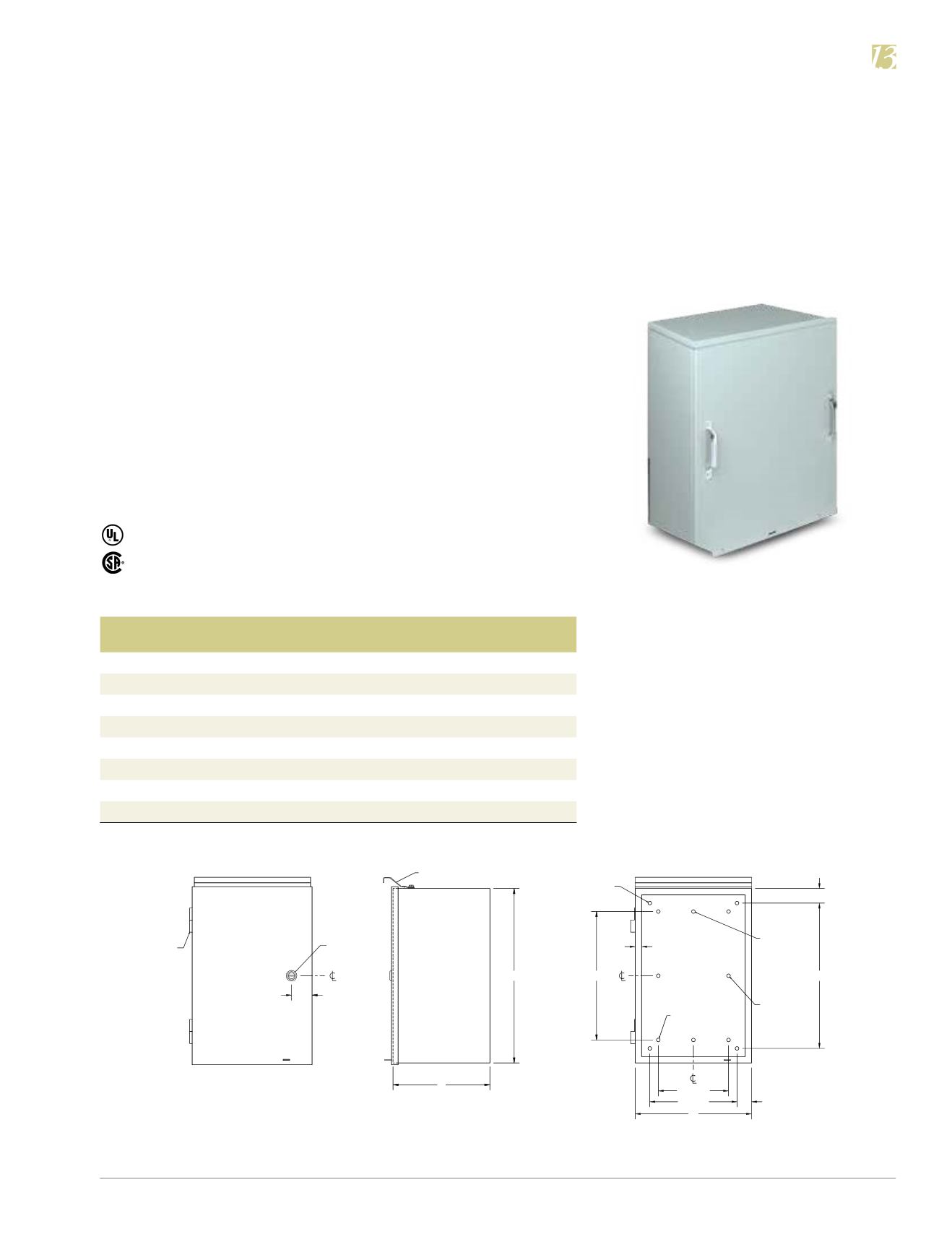

CT SERIES SINGLE DOOR HINGE COVER ENCLOSURES
Catalog
Number
Body/Door
Steel Gauge
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
Panel
Catalog
CTSD121810 14 18.00 (45.7) 12.00 (30.5) 10.00 (25.4) WBP1812
CTSD182410 14 24.00 (61.0) 18.00 (45.7) 10.00 (25.4) WBP2418
CTSD202010 14 20.00 (50.8) 20.00 (50.8) 10.00 (25.4) WBP2020
CTSD202412 14 24.00 (61.0) 20.00 (50.8) 12.00 (30.5) WBP2420
CTSD242412 14 24.00 (61.0) 24.00 (61.0) 12.00 (30.5) WBP2424
CTSD243012 14 30.00 (76.2) 24.00 (61.0) 12.00 (30.5) WBP3024
CTSD243612 14 36.00 (91.4) 24.00 (61.0) 12.00 (30.5) WBP3624
CTSD303612 12 36.00 (91.4) 30.00 (76.2) 12.00 (30.5) WBP3630
Note: Second numerical value of catalog # represents height.
CT SERIES ENCLOSURES
NEMA 3R SINGLE DOOR HINGE COVER
Applications
Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay
and/or for terminal instrumentation.
Construction
Q Manufactured from 14 and 12 gauge carbon steel
Q Fully seam welded and ground smooth, with weep hole
Q Drip shield
Q Lift off hinges, gasketed doors
Q Supplied with non-locking 1/4 turn latch
Q Meter seal provisions
Q Mounting holes in back
Q Supplied with studs in back of enclosure
Finish
Q ANSI 61 polyester powder inside and out
Industry Standards
UL Listed Type 3R
2.12
LIFT-OFF
HINGES
DRIP SHIELD
H
D
1.50 W-3.00
1.50
H-3.00
1/4 TURN
LATCH
W-4.75
H-4.75
ø 0.38 TYP.
MOUNTING HOLES
3/8-16 PANEL
STUD TYP
(PANEL NOT
INCLUDED)
FLANGE
0.66 TYP.
FRONT VIEW
(WITH COVER REMOVED)
W
OMIT MIDDLE
STUDS IF
W < 31.00
H < 31.00
STUDS IF
OMIT MIDDLE
