A m v e c o T o r o i d a l S o l u t i o n s
Part
Number
Rated Ip
(Amps)
Turns Ratio Frequency
DC Resistance (DCR) RCF
Pin Layout
100 Ω 500 Ω 2k Ω 5k Ω Size Code (@ Nominal) (@10%)
AC1005 5 1000:1 50/60 Hz 41.8 Ohm 1.040 0.100 0.450 1.350 1.800 A
AC1010 10 1000:1 50/60 Hz 41.8 Ohm 1.035 0.100 0.450 1.000 1.300 A
AC1015 15 1000:1 50/60 Hz 41.8 Ohm 1.030 0.100 0.430 0.800 1.000 A
AC1020 20 1000:1 50/60 Hz 41.8 Ohm 1.030 0.100 0.420 0.700 0.800 A
AC1025 25 1000:1 50/60 Hz 48 Ohm 1.020 0.100 0.400 1.000 1.200 B
AC1030 30 1000:1 50/60 Hz 48 Ohm 1.020 0.100 0.400 0.850 1.100 B
AC1040 40 1000:1 50/60 Hz 49.3 Ohm 1.020 0.100 0.450 0.750 1.000 C
AC1050 50 1000:1 50/60 Hz 49.3 Ohm 1.020 0.100 0.440 0.700 0.800 C
AC1060 60 1000:1 50/60 Hz 24 Ohm 1.020 0.100 0.380 0.600 0.700 D
AC1075 75 1000:1 50/60 Hz 24 Ohm 1.015 0.100 0.350 0.500 0.600 D
AC1100 100 1000:1 50/60 Hz 21.3 Ohm 1.015 0.100 0.350 0.500 0.600 E
AC1150 150 1000:1 50/60 Hz 11 Ohm 1.010 0.100 0.320 0.550 0.600 F
AC1200 200 1000:1 50/60 Hz 11 Ohm 1.010 0.100 0.300 0.450 0.600 F
Notes: Electrical measurements @ 20°C ambient temperature. All data subject to change without prior notice.
RCF: Ratio Correction Factor Multiple current readings by this factor to compensate for transformer losses
AC SERIES PC MOUNT CURRENT TRANSFORMERS
Current transformers (CTs) are used for measurement of electric currents and can be known as instrument transformers. When current in a
circuit is too high to directly apply to measuring instruments, a current transformer produces a reduced current accurately proportional to
the current in the circuit, which can be conveniently connected to measuring and recording instruments. A current transformer also
isolates the measuring instruments from what may be very high voltage in the monitored circuit.
Applications
Q Sensing Overload Current
Q Ground Fault Detection
Q Metering
Q Coupling Analog to Digital Circuits
Features
Q Current range from 5 - 200 A
Q Frequency 50/60 Hz
Q Fully encapsulated
Q Primary to secondary insulation 4 kV AC
Q Operating temperature range: -40° C to + 120° C
Size Code W L H A B C D ID
A 0.938 0.938 0.438 0.6 0.3 0.069 0.032 0.375
B 1.188 1.188 0.563 0.8 0.4 0.082 0.04 0.45
C 1.375 1.375 0.563 1 0.4 0.082 0.04 0.575
D 1.5 1.5 0.625 1.2 0.4 0.112 0.04 0.575
E 1.75 1.75 0.563 1.4 0.4 0.082 0.04 0.75
F 2.188 2.188 0.813 1.8 0.5 0.156 0.04 0.94

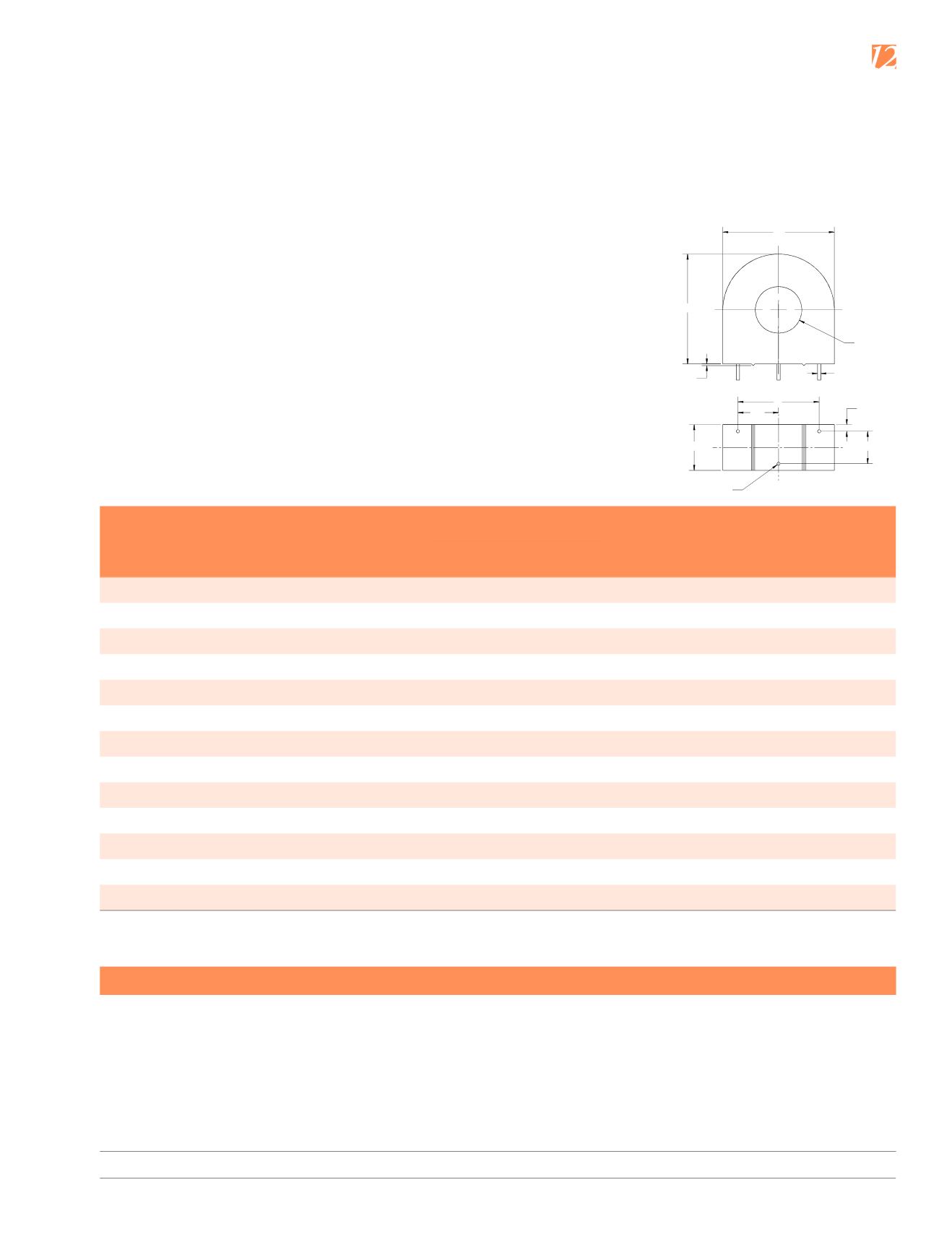

AC Series Diagram
ID
W
.025 TYP
(2 PLACES)
D
L
CL
A
A/2
H
D
B
C
CL
