toll free 800.334.5214 ACME ELECTRIC |
Selection Charts M e d i u m V o l t a g e T r a n s f o r m e r s
THREE PHASE VOLTAGE SELECTION
YY Primary Volts
Secondary
Volts

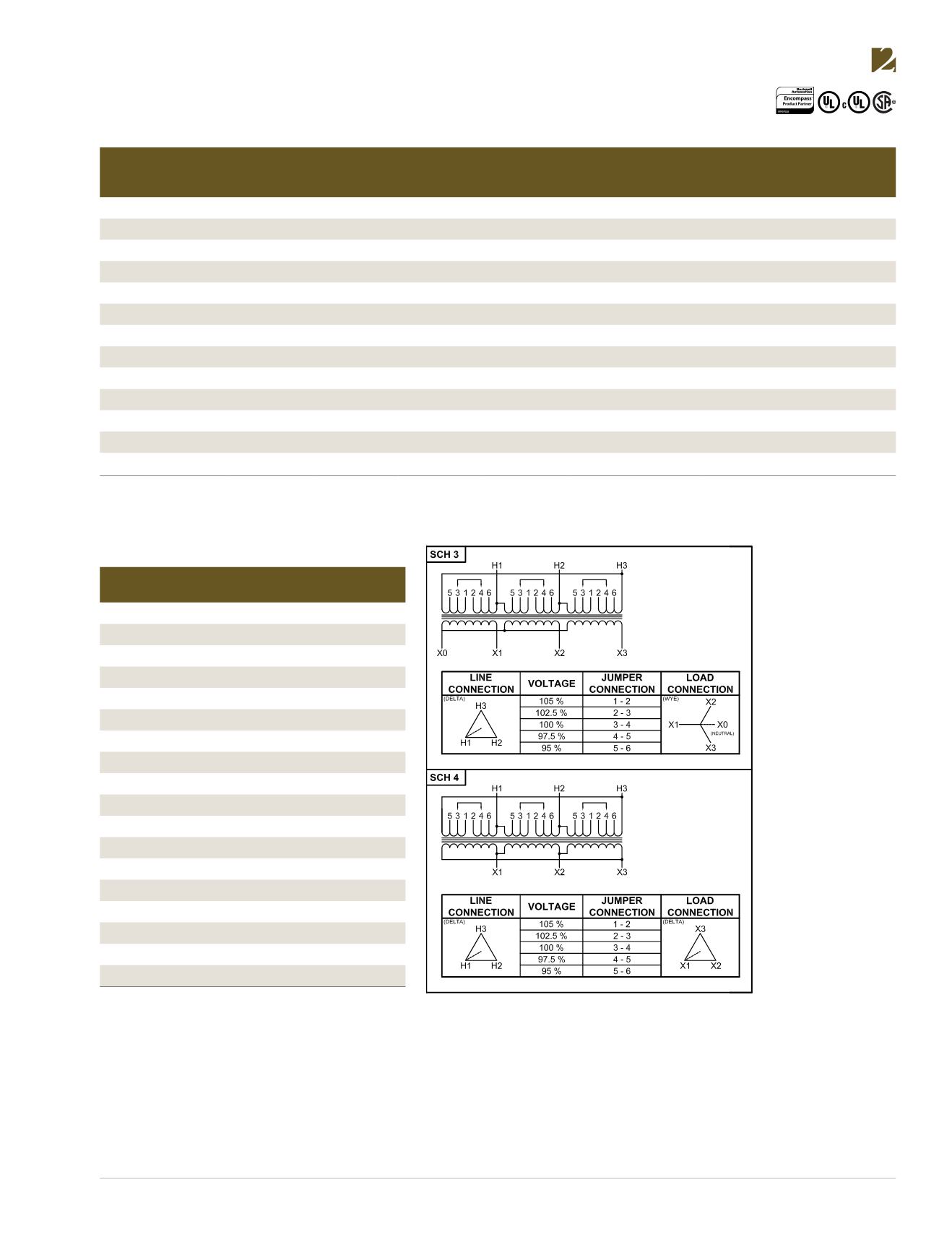

Wiring
Diagrams
10 2400∆ 208Y120 3
11 2400∆ 240∆ 4
12 2400∆ 480∆ 4
13 2400∆ 480Y277 3
14 2400∆ 600∆ 4
15 2400∆ 600Y347 3
16 4160∆ 208Y120 3
17 4160∆ 240∆ 4
18 4160∆ 480∆ 4
19 4160∆ 480Y277 3
20 4160∆ 600∆ 4
21 4160∆ 600Y347 3
22 4800∆ 208Y120 3
23 4800∆ 240∆ 4
24 4800∆ 480∆ 4
25 4800∆ 480Y277 3
26 4800∆ 600∆ 4
27 4800∆ 600Y347 3
THREE PHASE, 60Hz, 2.5kV & 5kV CLASS, NEMA 1 ENCLOSED, DOE 2016
kVA
Catalog
Number
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
N-1 Depth
(Inches)(Cm.)
Weight
(Lbs.)(Kg.)
Mounting
Type
(Wall)(Floor)
Knockouts
(Inches)(Cm.)
Optional
Electrostatic
Shield
Design Figures
15 WH015KYY① 34.8 (88.3) 26.3 (66.8) 22.3 (56.6) 340 (154.2) F NA NA E
30 WI030KYY ① 34.8 (88.3) 26.3 (66.8) 22.3 (56.6) 450 (204.1) F NA NA E
45 WI045KYY ① 34.8 (88.3) 26.3 (66.8) 22.3 (56.6) 500 (226.7) F NA NA E
75 WI075KYY ① 40.8 (103.6) 32.3 (82.0) 28.3 (71.8) 810 (367.4) F NA NA E
112.5 WI112KYY ① 40.8 (103.6) 32.3 (82.0) 28.3 (71.8) 950 (430.9) F NA NA E
150 WI150KYY ① 48.0 (121.9) 48.0 (121.9) 32.0 (81.2) 1260 (571.5) F NA NA E
225 WI225KYY ① 48.0 (121.9) 48.0 (121.9) 32.0 (81.2) 1630 (739.3) F NA NA E
300 WI300KYY ① 48.0 (121.9) 48.0 (121.9) 32.0 (81.2) 2180 (988.8) F NA NA E
500 WI500KYY ① 54.0 (137.1) 60.0 (152.4) 40.0 (101.6) 2940 (907.1) F NA NA G
750 WI750KYY ① 54.0 (137.1) 60.0 (152.4) 40.0 (101.6) 4400 (1995.8) F NA NA G
1000 WI001MYY ① 72.0 (182.8) 68.0 (172.7) 48.0 (121.9) 6100 (2766.9) F NA NA G
1500 WI015MYY ① 84.0 (213.3) 84.0 (213.3) 48.0 (121.9) 8100 (3674.0) F NA NA G
2000 WI002MYY ① 84.0 (213.3) 84.0 (213.3) 48.0 (121.9) 9500 (4309.1) F NA NA G
① Add appropriate voltage number code to catalog number
Available with 3R Weathershield
