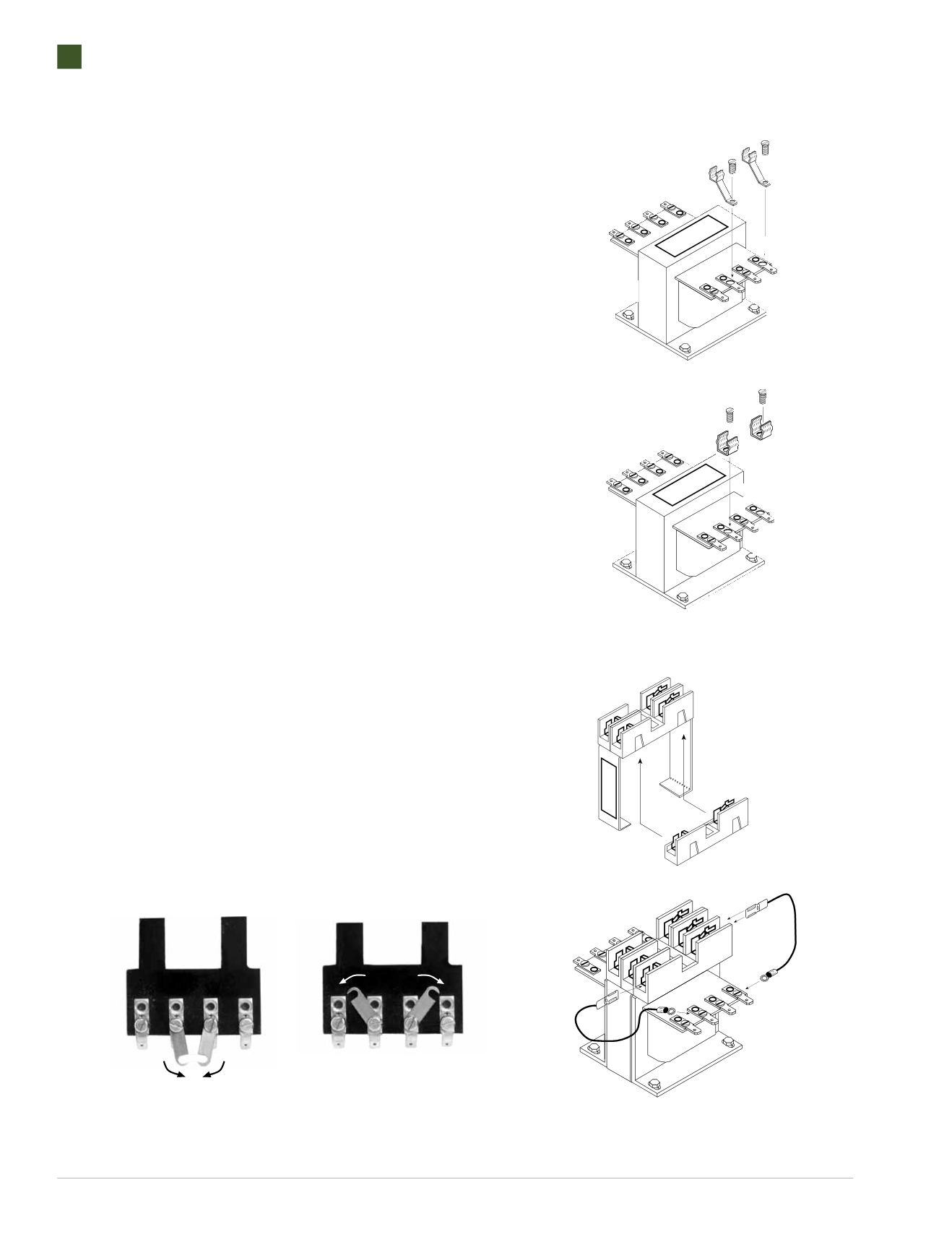

TA SERIES SECONDARY FUSE KITS
Type PL112700 Through PL112705:
Type PL112600, 601, 602: Use Dual Element Slow-Blow Fuse
Q Mount secondary fuse clips on terminals X1 and F or F1
using the screws supplied with the transformer.
Q Connect secondary load lines to terminals X2 and F or F2.
Q Use dual-element slow-blowing fuses such as Bussmann MFG.,
Fusetron Type FNM, Littelfuse or Shawmut (not supplied with fuse kits).
INSTRUCTIONS FORTA SERIES SECONDARY FUSE KITS
Type PL112603: use dual element slow-blow fuse 13/32” x 1-1/2”
(1.0 x 3.8 cm)
1. To attach secondary fuse kit PL-112603 to primary fuse kits PL112700
thru PL112707 snap the secondary single pole fuse block onto the
unlabeled side of the primary double pole fuse block. (See Figure 1)
2. Install the fuse kits as instructed under the secondary fuse kit
instructions on page 76.
3. Select the appropriate pair of jumpers for making the connections
between the secondary fuse block and the secondary (X-side) of the
transformer.
4. Connect the female quick-connect of the jumpers supplied to one of the
male quick-connects of the secondary fuse block - one jumper to each
end of the fuse block. (See Figure 2)
5. Connect the ring terminal of the jumpers supplied to screw terminals X1
and F or F1 on the secondary (X-side) of the transformer.
6. Connect secondary load lines to terminals X2 and F or F2.
Jumper Link Connections
Group A Series: 240 V parallel: 120 V
Group B Series: 480 V parallel: 240 V
Group F series: 230 V parallel: 115 V
Group I Series: 24 V parallel: 12 V
Group J Series: 480 V & 240 V: 240 V & 120 V
Group K Series: 240 V: 120 V
Exception: 150 VA transformer TA232404 does not have
quick connect terminals.
PL112600/601 Fuse Kit
PL112602 Fuse Kit
Series
Connection
Parallel
Connection
Figure 1
Figure 2
SECONDARY
(X SIDE)
