Specifications
Item #
OEM #
in
LxWxH
mm
LxWxH
Rating (A DC)
Voltage
(V DC) Operation Stud Detail
Cont Inter Crank
770-EZ
770-EZ-B 3.85"x3.85"x3.62" 98x98x92 mm 400 600 1500 12–48 On/Off
2x (3/8" / 10 mm)
771-S-EZ
771-S-EZ-B 3.85"x3.85"x3.62" 98x98x92 mm 400 600 1500 12–48 1, 2, Both, Off 3x (3/8" / 10 mm)
770-DP-EZ
770-DP-EZ-B 3.85"x3.85"x3.62" 98x98x92 mm 400 600 1500 12–48 On/Off
4x (3/8" / 10 mm)
772-DBC-EZ
772-DBC-EZ-B 3.85"x3.85"x3.62" 98x98x92 mm 400 600 1500 12–48 1, 1/2,
Parallel, Off
4x (3/8" / 10 mm)
NEW
NEW
NEW
NEW

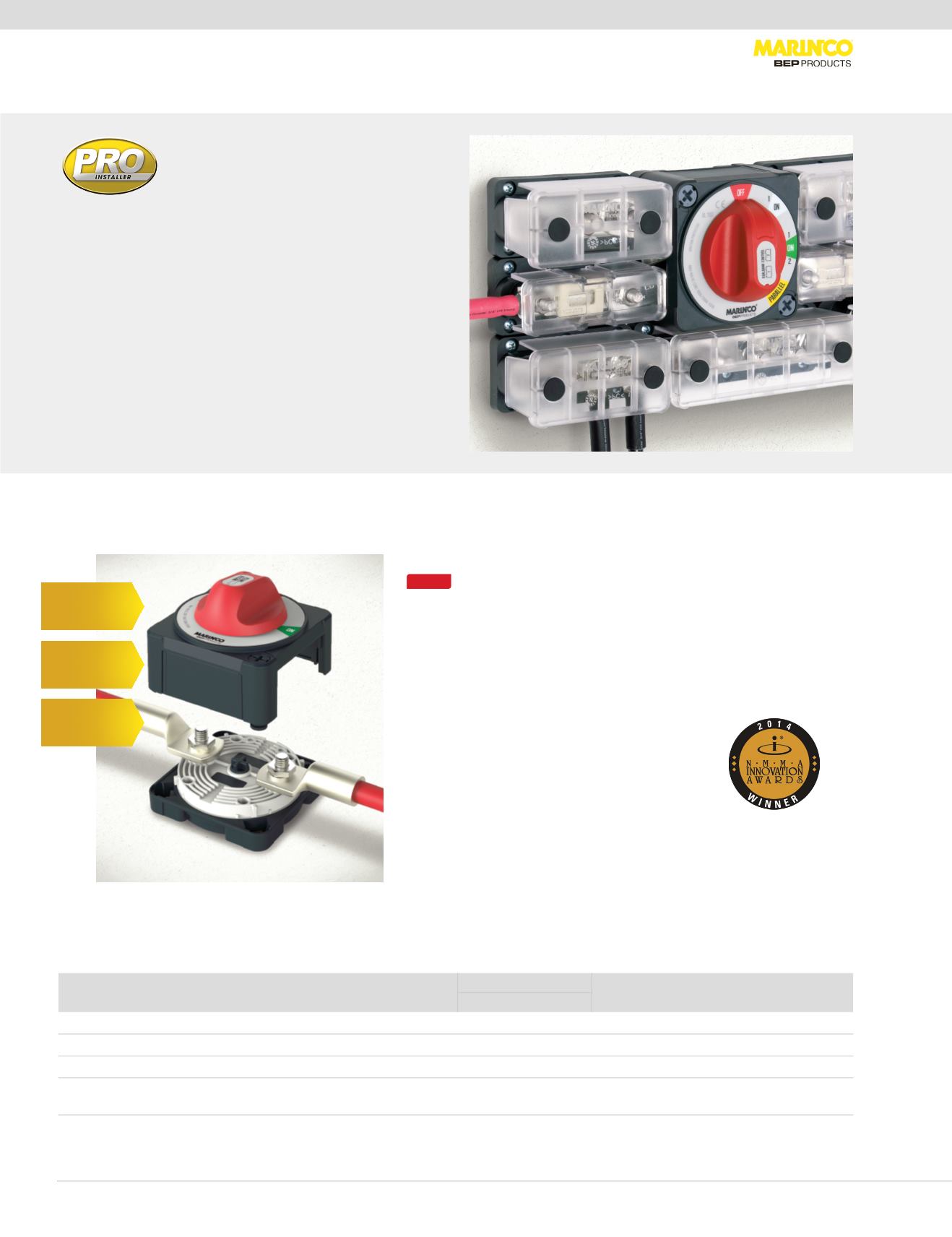

Pro Installer EZ-Mount Battery Switches
As easy as 1, 2, 3, these revolutionary battery switches allow you to
wire from the front. Never has installation been so easy and cabling
so accessible. With their shared interconnection height, EZ-Mount
battery switches “cluster” directly with the Pro Installer Busbar
Range, resulting in the fastest, most compact installations. All
ratings, footprints and features of the EZ-Mount switch match the
high quality of our standard switches:
• Tested to UL1107 ignition protection, CE
• Tinned copper 10mm (3/8") studs
• Stainless steel washers/nuts
• Fiber reinforced plastics
• 400A Continuous / 600A 5 mins Intermittent /
1500A 10 secs Cranking
• Waterproof to IP66
1
Fit
base
2
Add
wiring
3
Clip on
actuator
Manage:
Medium-duty Battery Switches
Pro Installer Series Battery Switches
A new range of premium quality battery switches that feature
an industry standard mounting footprint. This enables easy
mounting into existing or new installations. Improved design
and ergonomics provide clear intuitive operation, while attention
to all aspects of switch function and use has created superior
installation options, high power capacity and improved reliability.
The many innovations include a number for which patent
applications have been made for switch mounting and
functionality.
See page 158 for more Pro Installer products to complete
your cluster.
