D I N - R a i l U t i l i t y B o x

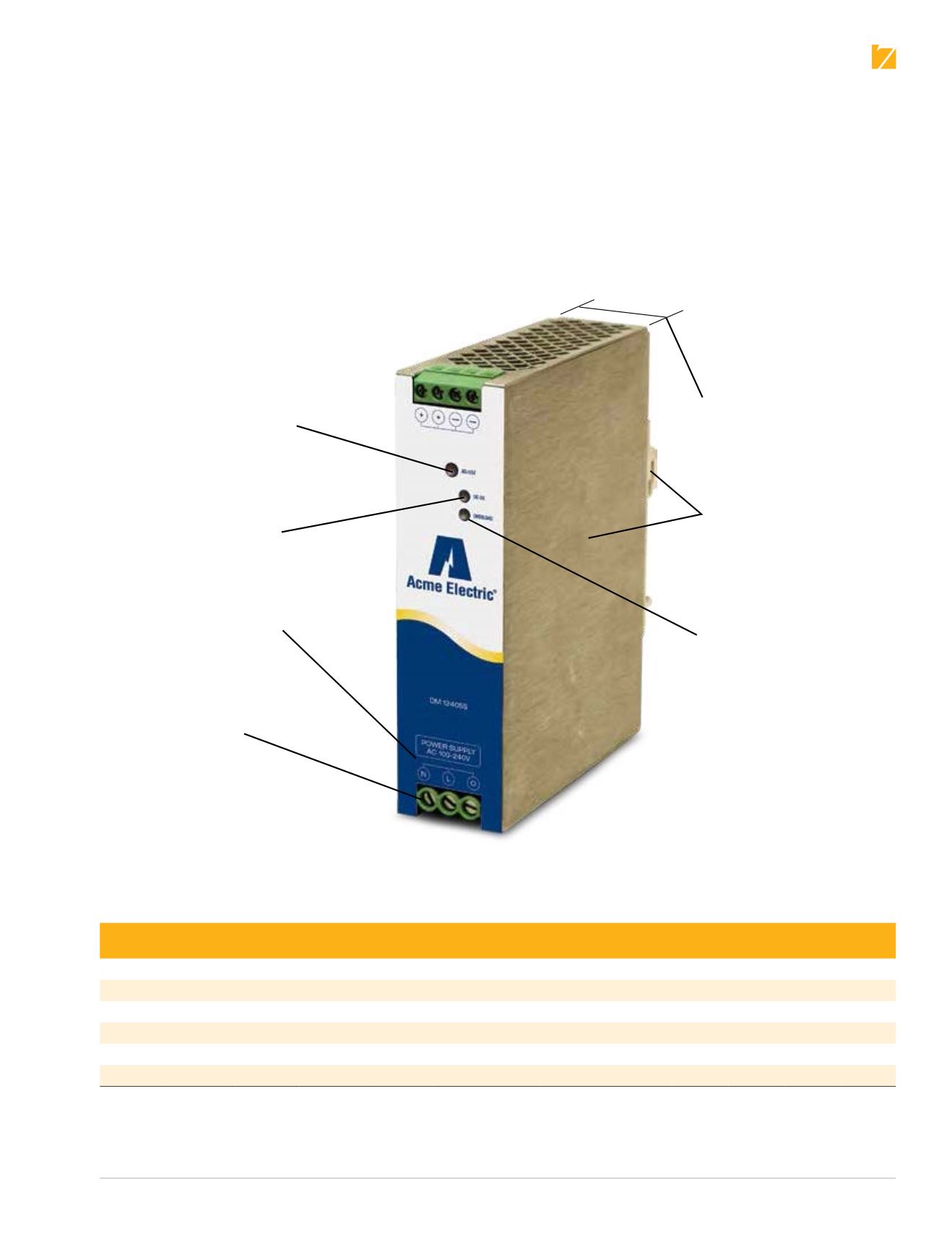

DM SERIES FEATURES
Universal input eliminates
voltage gaps for full product
application versatility
DC power now comes in a smaller package. Our slimline single phase models measure as small
as 32 mm wide to conserve valuable space on the DIN Rail and in the overall control cabinet!
Adjustable output voltage
compensates for voltage drop
“DC OK” LED indicator
identifies local output status
IP20 Touchsafe rating
Compact, narrow design
provides significant space
savings
Industrial design with rugged
metal case and mounting clip
makes installation easy
Overload indicator
32mm
Power factor correction
minimizes harmonic distortion
SINGLE PHASE
Catalog
Number
OutputPower
(WattsMax)
Amp
Rating
Voltage
Range AC
Voltage
Range DC
Output Voltage Efficiency
(1)
Operating
Temperature
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
Weight
(Lbs.)(Kg.)
DM112045 54 W 4.5–3.4 90–254 VAC — 12 VDC (10–16 adj) 86% -10°C to +60°C 4.88 (124) 1.97 (50) 4.13 (105) 1.08 (0.49)
DM124025 60 W 2.5–2.1 90–254 VAC — 24 VDC (22–28 adj) 87% -10°C to +60°C 4.88 (124) 1.97 (50) 4.13 (105) 1.08 (0.49)
DM12420 480 W 20.0–17.1 90–254 VAC — 24 VDC (22–28 adj) 90% -10°C to +60°C 5.12 (130) 6.14 (156) 4.96 (126) 4.96 (2.25)
DM13613 480 W 13.3–12.0 90–254 VAC — 36 VDC (34–40 adj) 90% -10°C to +60°C 5.12 (130) 6.14 (156) 4.96 (126) 4.96 (2.25)
DM1480125 60 W 1.25–1.15 90–254 VAC — 48 VDC (46–52 adj) 89% -10°C to +60°C 4.88 (124) 1.97 (50) 4.13 (105) 1.08 (0.49)
DM14810 480 W 10.0–9.2 90–254 VAC — 48 VDC (46–52 adj) 90% -10°C to +60°C 5.12 (130) 6.14 (156) 4.96 (126) 4.96 (2.25)
Frequency: 47-63 Hz for all models
1. Depends upon specific model selection, output voltage and/or upon 120 or 240 VAC operation.
