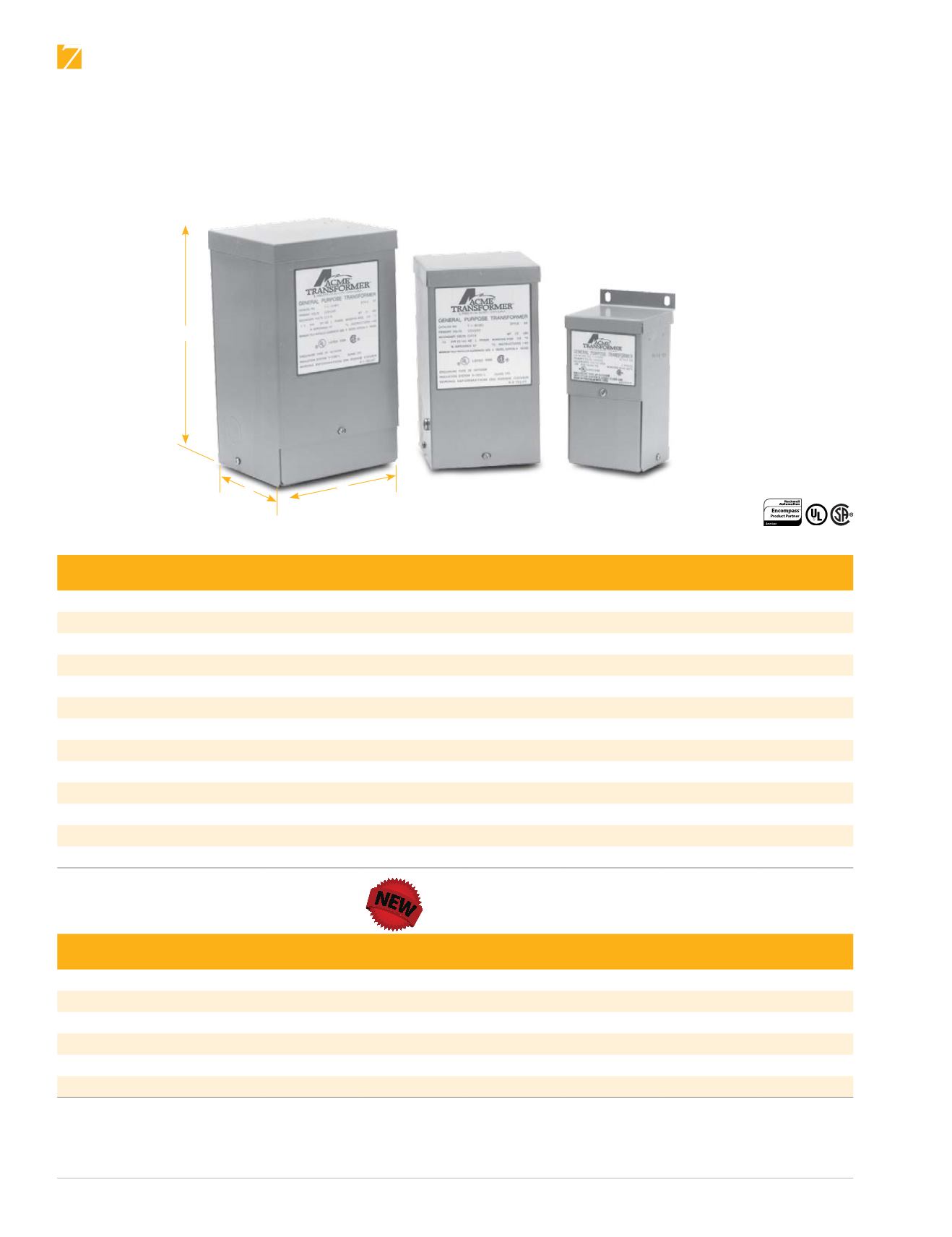

L o w V o l t a g e L i g h t i n g T r a n s f o r m e r s
114 toll free 800.334.5214 ACME ELECTRIC |
BUCK-BOOST TRANSFORMERS
Buck-Boost Transformers offer a no-frills approach to low voltage lighting. (See Chart Below) A typical Buck-Boost application is 120
volts in and 12 volts out for low voltage lighting or control circuitry. In most applications, this low voltage isolation transformer is field
connected as an autotransformer. For more information on Buck-Boost Transformers, refer to the next section in this catalog.
120 X 240 VOLT INPUT — 12/24 VOLT OUTPUT — 1Ø, 60 Hz
Catalog Number
Insulating
Transformer Rating
Secondary Maximum Current Output
12V 24V
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
Weight
(Lbs.)(Kg.)
T181047 0.05 kVA 4.16 2.08 6.38 (16.2) 3.19 (8.1) 3.00 (7.6) 4 (1.8)
T181048 0.10 kVA 8.32 4.16 6.62 (16.8) 3.75 (9.5) 3.62 (9.2) 5 (2.3)
T181049 0.15 kVA 12.52 6.25 7.12 (18.1) 3.75 (9.5) 3.62 (9.2) 7 (3.2)
T181050 0.25 kVA 20.80 10.40 8.68 (22.0) 4.08 (10.4) 3.88 (9.9) 10 (4.5)
T181051 0.50 kVA 41.60 20.80 9.06 (23.0) 4.37 (11.1) 4.20 (10.7) 15 (6.8)
T181052 0.75 kVA 62.50 31.25 9.68 (24.6) 4.75 (12.1) 4.51 (11.5) 19 (8.6)
T111683 1.00 kVA 83.20 41.60 10.50 (26.7) 5.50 (14.0) 5.13 (13.0) 24 (10.9)
T111684 1.50 kVA 125.00 62.50 11.62 (29.5) 5.50 (14.0) 5.13 (13.0) 30 (13.6)
T111685 2.00 kVA 166.00 83.20 13.00 (33.0) 5.50 (14.0) 5.13 (13.0) 38 (17.2)
T111686 3.00 kVA 250.00 125.00 11.50 (29.2) 10.31 (26.2) 7.13 (18.1) 55 (24.9)
T111687 5.00 kVA 416.00 208.00 14.38 (36.5) 10.31 (26.2) 7.13 (18.1) 75 (34.0)
T211688 7.50 kVA 625.00 312.50 21.19 (53.8) 13.50 (34.3) 10.84 (27.5) 125 (56.7)
T211689 10.00 kVA 833.00 416.60 21.19 (53.8) 13.50 (34.3) 10.84 (27.5) 160 (72.6)
277 VOLT INPUT — 12/24 VOLT OUTPUT — 1Ø, 60 Hz
Catalog Number
Insulating
Transformer Rating
Secondary Maximum Current Output
12V 24V
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
Weight
(Lbs.)(Kg.)
T1100V0370BC 0.10 kVA 8.32 4.16 6.62 (16.8) 3.75 (9.5) 3.62 (9.2) 5 (2.3)
T1150V0370BC 0.15 kVA 12.52 6.25 7.12 (18.1) 3.75 (9.5) 3.62 (9.2) 7 (3.2)
T1250V0370BC 0.25 kVA 20.80 10.40 8.68 (22.0) 4.08 (10.4) 3.88 (9.9) 10 (4.5)
T1500V0370BC 0.50 kVA 41.60 20.80 9.06 (23.0) 4.37 (11.1) 4.20 (10.7) 15 (6.8)
T1001K0370BC 1.00 kVA 83.20 41.60 10.50 (26.7) 5.50 (14.0) 5.13 (13.0) 24 (10.9)
T1150K0370BC 1.50 kVA 125.00 62.50 11.62 (29.5) 5.50 (14.0) 5.13 (13.0) 30 (13.6)
H
W D
