Selection Charts

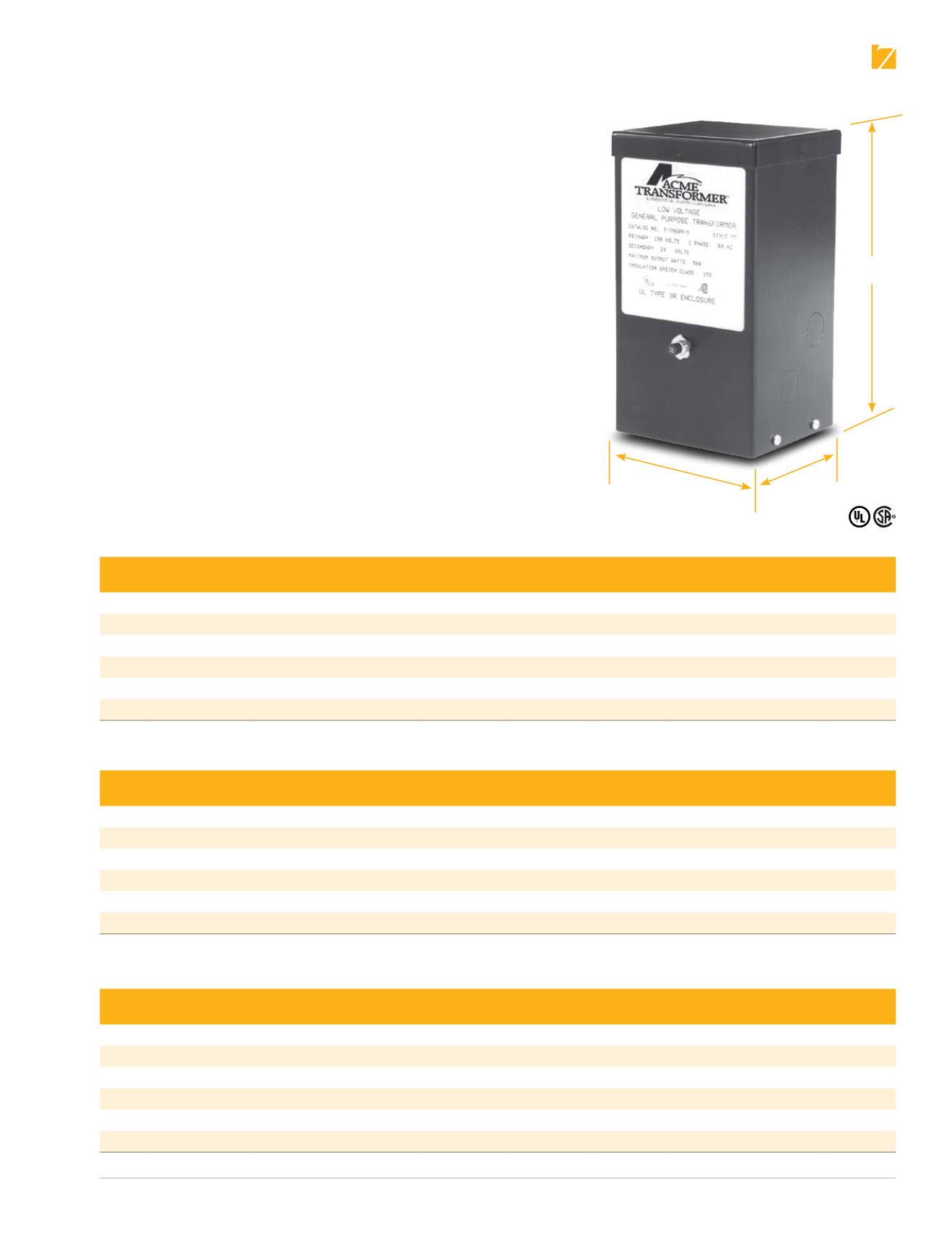

L o w V o l t a g e L i g h t i n g T r a n s f o r m e r s

113

toll free 800.334.5214 ACME ELECTRIC |

hubbell-acmeelectric.com

H

W

D

LOW VOLTAGE GENERAL PURPOSE TRANSFORMERS

Features

Q

UL Listed , CSA Certified.

Q

100, 150, 300, 600, 750, 1000 VA.

Q

1 Phase, 60 Hz, 120 or 240 volt input.

Q

12 or 24 volt output.

Q

Input Auto-Thermal reset switch.

Q

Output circuit breaker.

Q

Fully encapsulated core and coil.

Q

Full fault current carrying Faraday Shield.

Q

Flexible copper leadwire terminations.

Q

UL class 180°C insulation system 115°C rise.

Q

UL Type 2 enclosure.

Q

Keyhole slotted wall mounting brackets.

Q

Black finish.

Q

Bottom access.

Q

Two 0.875 (2.2 cm) single knockouts each side.

Q

Two dual 0.875 (2.2 cm) and 1.125 (2.9 cm) knockouts on bottom cover.

120 PRIMARY VOLTS — 12 SECONDARY VOLTS — TWO WINDINGS — 1Ø, 60 Hz

VA Catalog Number

Height

(Inches)(Cm.)

Width

(Inches)(Cm.)

Depth

(Inches)(Cm.)

Weight

(Lbs.)(Kg.)

CB Rating

)

CB Style

Dimensional

Drawings

100

T179600S

9.01 (22.9)

4.08 (10.4)

3.88 (9.9)

7 (3.2)

15 AMP

Push To Reset Thermal Breaker

A

150

T179620S

9.01 (22.9)

4.08 (10.4)

3.88 (9.9)

7 (3.2)

20 AMP

Push To Reset Thermal Breaker

A

300

T179621S

11.68 (29.7)

4.66 (11.8)

4.57 (11.6)

11 (5.0)

40 AMP

Push To Reset Thermal Breaker

A

600

T179622S

11.68 (29.7)

4.66 (11.8)

4.57 (11.6)

15 (6.8)

60 AMP Magnetic Toggle On/Off Breaker

A

750

T179603S

11.68 (29.7)

4.66 (11.8)

4.57 (11.6)

18 (8.2)

75 AMP Magnetic Toggle On/Off Breaker

A

1000

T179604S

11.93 (30.3)

5.41 (13.7)

5.20 (13.2)

26 (11.8)

100 AMP Magnetic Toggle On/Off Breaker

A

120 PRIMARY VOLTS — 24 SECONDARY VOLTS — TWO WINDINGS — 1Ø, 60 Hz

VA Catalog Number

Height

(Inches)(Cm.)

Width

(Inches)(Cm.)

Depth

(Inches)(Cm.)

Weight

(Lbs.)(Kg.)

CB Rating

)

CB Style

Dimensional

Drawings

100

T179605S

9.01 (22.9)

4.08 (10.4)

3.88 (9.9)

7 (3.2)

7 AMP

Push To Reset Thermal Breaker

A

150

T179623S

9.01 (22.9)

4.08 (10.4)

3.88 (9.9)

7 (3.2)

10 AMP

Push To Reset Thermal Breaker

A

300

T179624S

11.68 (29.7)

4.66 (11.8)

4.57 (11.6)

11 (5.0)

20 AMP

Push To Reset Thermal Breaker

A

600

T179625S

11.68 (29.7)

4.66 (11.8)

4.57 (11.6)

15 (6.8)

40 AMP

Push To Reset Thermal Breaker

A

750

T179608S

11.68 (29.7)

4.66 (11.8)

4.57 (11.6)

18 (8.2)

50 AMP

Push To Reset Thermal Breaker

A

1000

T179609S

11.93 (30.3)

5.41 (13.7)

5.20 (13.2)

26 (11.8)

50 AMP Magnetic Toggle On/Off Breaker

A

240 PRIMARY VOLTS — 24 SECONDARY VOLTS — TWO WINDINGS — 1Ø, 60 Hz

VA Catalog Number

Height

(Inches)(Cm.)

Width

(Inches)(Cm.)

Depth

(Inches)(Cm.)

Weight

(Lbs.)(Kg.)

CB Rating

)

CB Style

Dimensional

Drawings

100

T179615S

9.01 (22.9)

4.08 (10.4)

3.88 (9.9)

7 (3.2)

7 AMP

Push To Reset Thermal Breaker

A

150

T179629S

9.01 (22.9)

4.08 (10.4)

3.88 (9.9)

7 (3.2)

10 AMP

Push To Reset Thermal Breaker

A

300

T179630S

11.68 (29.7)

4.66 (11.8)

4.57 (11.6)

11 (5.0)

20 AMP

Push To Reset Thermal Breaker

A

600

T179631S

11.68 (29.7)

4.66 (11.8)

4.57 (11.6)

15 (6.8)

40 AMP

Push To Reset Thermal Breaker

A

750

T179618S

11.68 (29.7)

4.66 (11.8)

4.57 (11.6)

18 (8.2)

50 AMP

Push To Reset Thermal Breaker

A

1000

T179619S

11.93 (30.3)

5.41 (13.7)

5.20 (13.2)

26 (11.8)

50 AMP Magnetic Toggle On/Off Breaker

A
