D r y - T y p e D i s t r i b u t i o n T r a n s f o r m e r s

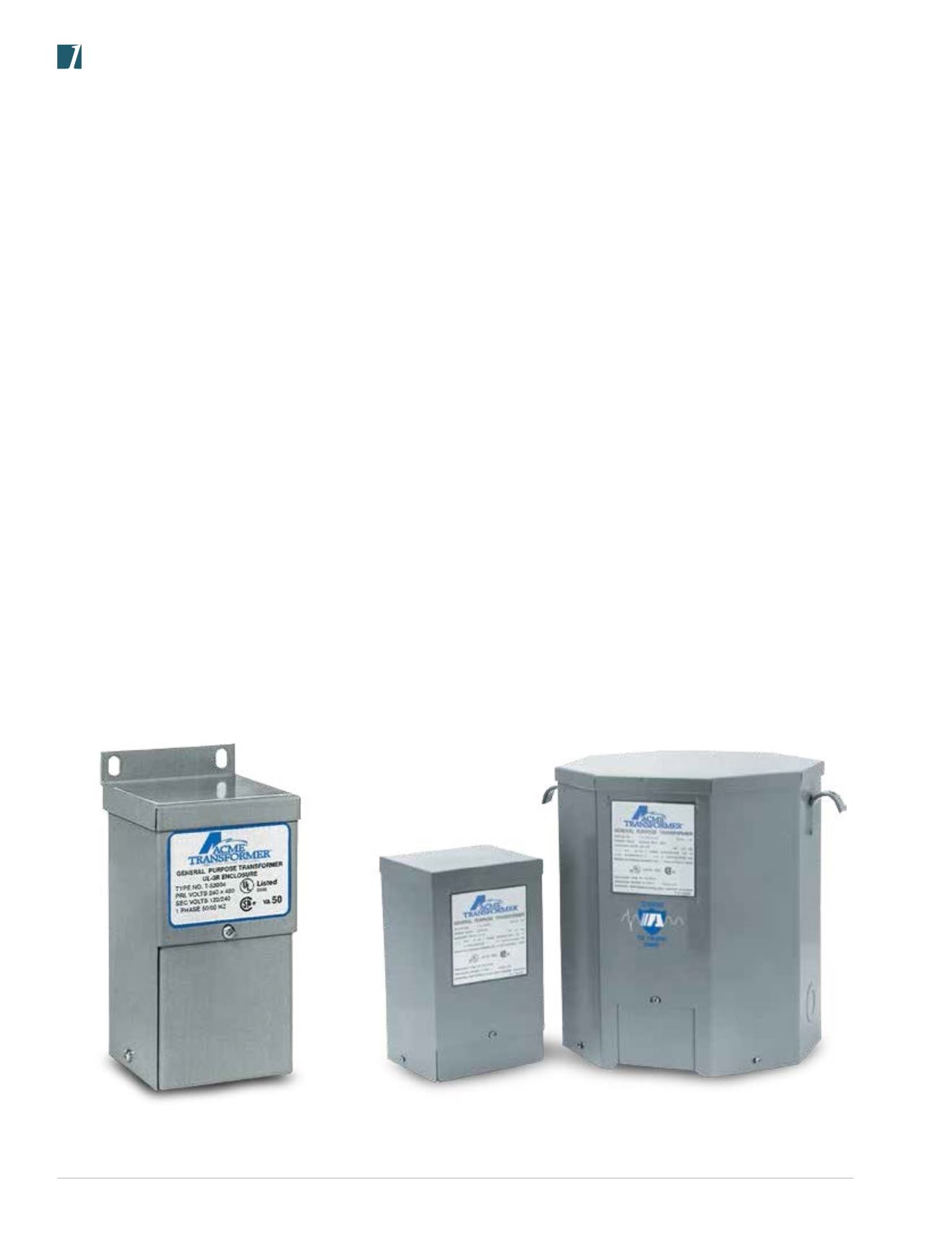

Construction Features

Encapsulated

Single Phase, .05 to .150 kVA

Features

Q

UL listed, CSA certified and UL-3R enclosure meets or exceeds all listing criteria including NEMA, ANSI and OSHA

standards.

Q

Easy and convenient installation to meet your requirements, the transformer can be mounted in any position.

Q

Long Life UL class 130°C insulation system. Transformers can be banked for three phase service.

Q

Large wiring compartment, no conduit or pull boxes required. Front access for wiring ease. Wiring compartment remains cool.

Q

Completely enclosed UL-3R enclosure for indoor/outdoor service. Rugged non-ventilated construction.

Q

Plenty of knockouts for multi-directional entry.

Q

All copper lead wire terminations.

Q

Ground studs for use with non-metallic conduit.

Encapsulated

Single Phase, .250 to 25 kVA

Q

Installation keyhole mounting slots for mounting bolts prior to installation. Mounting slots are accessible from the front. Lifting

ears are included on 3 to 25 kVA units.

Q

Wiring flexible copper leadwire terminations for easy connections outside the front access wiring compartment. Dual size

knockouts in both sides and the bottom of the wiring compartment for greater wiring convenience and flexibility.

Features

Q

UL listed, CSA certified and UL-3R enclosures meets or exceeds all listing criteria including NEMA, ANSI and OSHA standards.

Q

Shielded for cleaner power.

Q

Encapsulated and completely enclosed design electrical grade silica and resin compounds completely enclose the core and

coil to seal out all moisture and air. UL Type 3R enclosure for indoor or outdoor service. Encapsulation eliminates corrosion and

insulation deterioration.

Q

Quiet operation with sound levels well below NEMA standards.

Q

Long life UL class 155°C insulation system. 115°C rise thru .750 kVA; 180°C insulation system, 115°C rise, 1 kVA and above.

Q

Available in 316 Stainless Steel and NEMA 4X enclosure.
