hubbell-acmeelectric.comConstruction Features

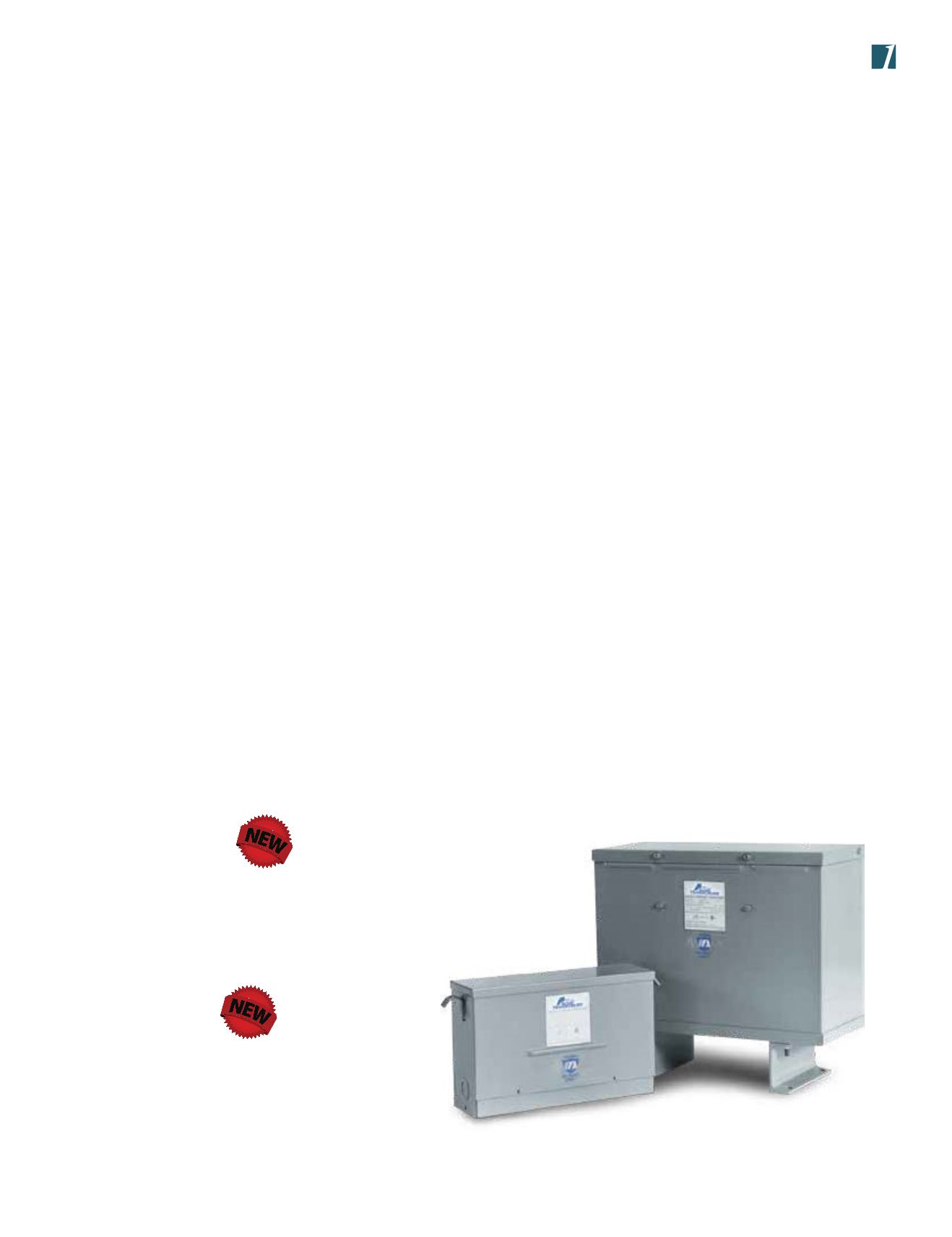

D r y - T y p e D i s t r i b u t i o n T r a n s f o r m e r s
Encapsulated
Three Phase, 3 to 75 kVA
Features
Q
UL listed, CSA certified and UL-3R enclosure meets or exceeds all listing criteria including NEMA, ANSI and OSHA
standards.
Q
UL Class 180°C insulation system. 115°C rise.
Q
Extra large front access wiring compartment through 9 kVA; top access through 75 kVA for easier installation and cooler case
temperatures.
Q
Completely enclosed — suitable for indoor/outdoor service. Consult selection charts for details. Excellent for dust or lint laden
atmosphere.
Q
Encapsulated — electrical grade silica and resin compound completely encloses the core and coil. Encapsulation seals out
all moisture and air, eliminating corrosion and insulation deterioration.
Q
High efficiency and excellent regulation.
Q
Sound levels below NEMA standards.
Q
Keyhole mounting slots permit installation of mounting bolts prior to hanging transformer and are accessible from the front.
Lifting ears for easy installation.
Q
Wiring connections can be made outside of wiring compartment due to the use of flexible leads.
Q
3-9 kVA provided with dual size knockouts in sides and bottom of wiring compartment.
Q
Termination — copper lead wire.
Q
Electrostatic shielding provided on all 60 Hz isolation transformers.
Q
Available in 316 Stainless Steel.
316 Stainless Steel
Q
3R enclosure.
Q
Encapsulated construction.
Q
Single phase: 0.25 – 25 kVA.
Three phase: 3 – 75 kVA.
Q
Core and Coil assembly completely encapsulated in polyester or epoxy seals
out all moisture, eliminating corrosion and deterioration of insulation.
Q
Electrostatic shielding.
Applications
Q
Harsh industrial locations.
Q
Corrosive chemical exposure.
Q
Waste water treatment facilities.
Q
Coastal or marine applications with high salt mist.
Q
Any application where painted cold roll steel is not adequate.
NEMA 4X Enclosure
Q
Encapsulated construction
Q
Single phase: 0.250 – 5kVA
Three phase: 3 – 9kVA
Q
304 Stainless Steel
Q
Doors are sealed with a gasket
Q
Electrostatic shielding
Class 1 Division 2
Q
Encapsulated construction
Q
Three phase: 3 – 45kVA
Q
Groups A,B,C,D
Q
Temperature Class T3A
Q
Optional 316 Stainless Steel
Q
Electrostatic shielding
