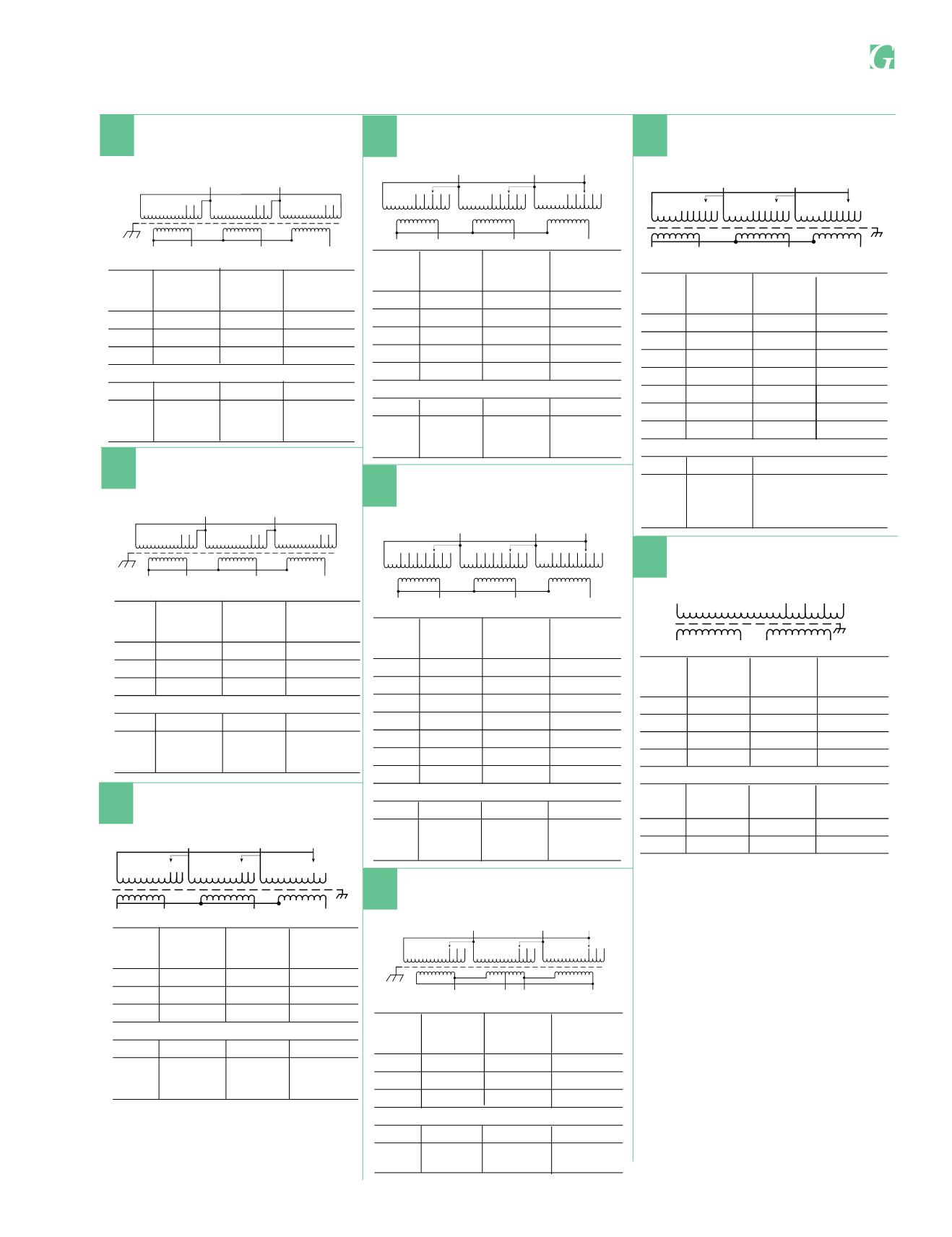

Diagrams G e n e r a l
211
PRIMARY: 240 Volts Delta
SECONDARY: 208Y/120 Volts
TAPS: 2, 5% BNFC
X1
H1
X2 X3
H3 H2
X0
123 123 123
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
240 H1, H2, H3 1
228 H1, H2, H3 2
216 H1, H2, H3 3
Secondary Volts
208 X1, X2, X3
120 X1 to X0
1 phase X2 to X0
X3 to X0
18 PRIMARY: 240 Volts Delta
SECONDARY: 208Y/120 Volts
TAPS: 2, 21/2 % ANFC, 2, 21/2 % BNFC
X1
H1
X2 X3
H3 H2
X0
123 123 12345 45 45
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
252 H1, H2, H3 1
246 H1, H2, H3 2
240 H1, H2, H3 3
234 H1, H2, H3 4
228 H1, H2, H3 5
Secondary Volts
208 X1, X2, X3
120 X1 to X0
1 phase X2 to X0
X3 to X0
19 PRIMARY: 380 Volts Delta
SECONDARY: 220Y/127 Volts
TAPS: 2, 2 1/2 % ANFC, 4, 2 1/2 % BNFC
20
X3
H1
H3
123
H2 H3
X2 X1 X0
4567 1234567 1234567
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
399 H1, H2, H3 1
390 H1, H2, H3 2
380 H1, H2, H3 3
371 H1, H2, H3 4
361 H1, H2, H3 5
352 H1, H2, H3 6
342 H1, H2, H3 7
Secondary Volts
220 X1, X2,X3
127
X1 to X0
1 phase X2 to X0
X3 to X0
PRIMARY: 480 Volts Delta
SECONDARY: 208Y/120 Volts
TAPS: 2, 5% BNFC
X1
H1
X2 X3
H3 H2
X0
123 123 123
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
480 H1, H2, H3 1
456 H1, H2, H3 2
432 H1, H2, H3 3
Secondary Volts
208 X1, X2, X3
120 X1 to X0
1 phase X2 to X0
X3 to X0
21 PRIMARY: 480 Volts Delta
SECONDARY: 208Y/120 Volts
TAPS: 2, 2 1/2 % ANFC, 4, 2 1/2 % BNFC
X1
H1
X2 X3
H3 H2
X0
123 123 12345 45 45 67 67 67
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
504 H1, H2, H3 1
492 H1, H2, H3 2
480 H1, H2, H3 3
468 H1, H2, H3 4
456 H1, H2, H3 5
444 H1, H2, H3 6
432 H1, H2, H3 7
Secondary Volts
208 X1, X2, X3
120 X1 to X0
1 phase X2 to X0
X3 to X0
22
PRIMARY: 120/208/240/277 Volts
SECONDARY: 120/240 Volts
H1 H5
X1 X2 X3 X4
H4 H3 H2
23
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
277 H1, H5
240 H1, H4
208 H1, H3
120 H1, H2
Secondary Volts
120 X1 to X3 X1-X4
X2 to X4
120/240 X2 to X3 X1-X2-X4
240 X2 to X3 X1-X4
PRIMARY: 380 Volts Delta
SECONDARY: 220Y/127 Volts
TAPS: 2, 5% BNFC 24
H3
X1
H3
123 123
X2
123
X3
H2 H1
X0
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
380 H1, H2, H3 1
361 H1, H2, H3 2
342 H1, H2, H3 3
Secondary Volts
220 X1, X2, X3
127 X1 to X0
1 phase X2 to X0
X3 to X0
PRIMARY: 480 Volts Delta
SECONDARY: 240 Volts Delta/120 Volts
TAPS: 2, 5% BNFC
X1 X2 X3 X4
H1 H3 H2
123 123 123
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
480 H1, H2, H3 1
456 H1, H2, H3 2
432 H1, H2, H3 3
Secondary Volts
240 X1, X2, X3
120 X1, X4 or
X2, X4
25
