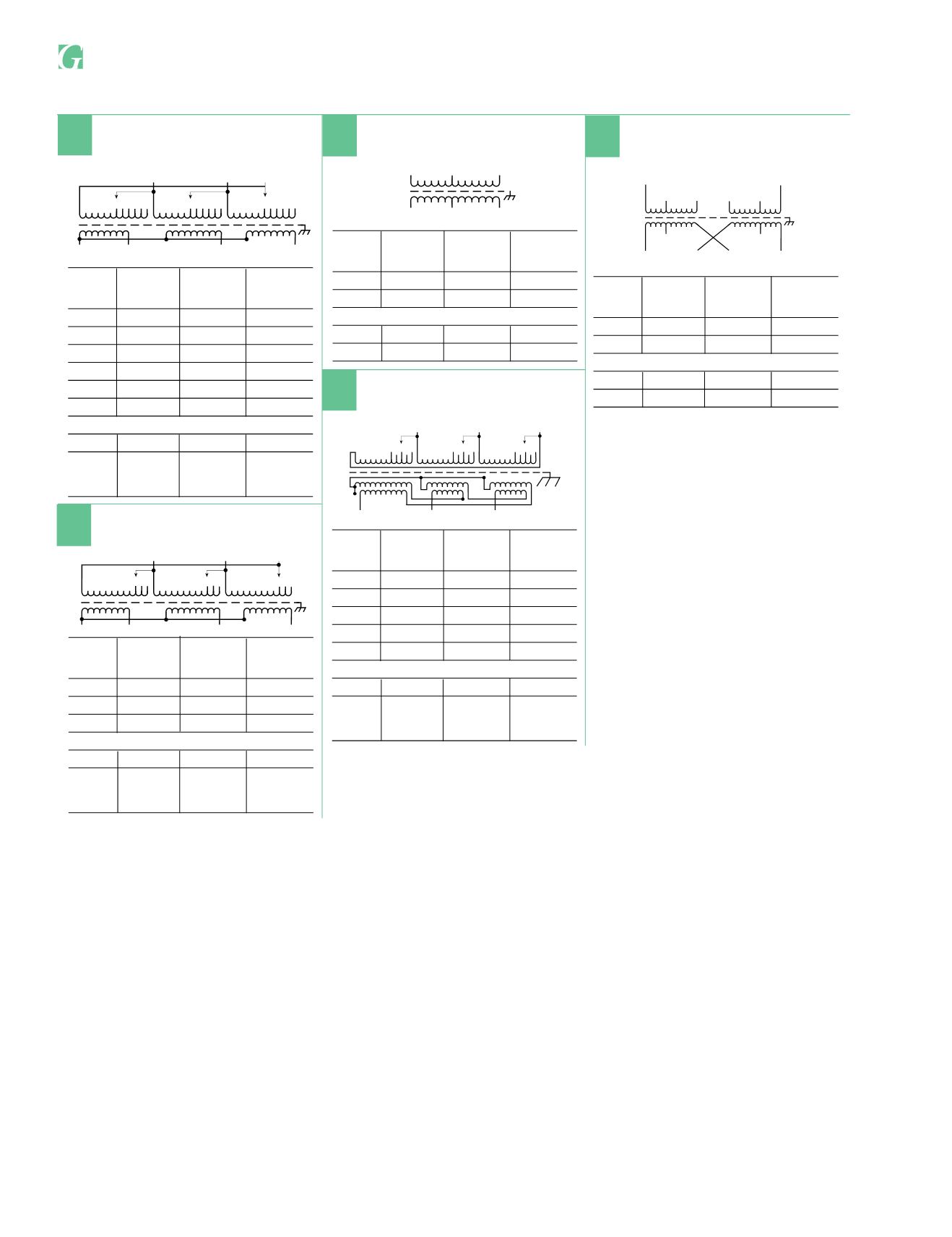

G e n e r a l Diagrams
216
PRIMARY: 190/200/208/220/
240 Volts Delta
SECONDARY: 400Y/231 Volts
X3
H1 H2
123
H3
X2 X1 X0
45 12345 123456 6 6
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
240 H1, H2, H3 1
230 H1, H2, H3 2
220 H1, H2, H3 3
210 H1, H2, H3 4
200 H1, H2, H3 5
190 H1, H2, H3 6
Secondary Volts
400 X1, X2, X3
231
X1 to X0
1 phase X2 to X0
X3 to X0
75
X1
H1 H2 H3
X2 X3
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
277 H1 & H2
480 H1 & H3
Secondary Volts
208 X1 to X2
277 X1 to X3
PRIMARY: 277/480 Volts
SECONDARY: 208/277 Volts
TAPS: NONE
78 PRIMARY: 277/480 Volts
SECONDARY: 208/277 Volts
TAPS: NONE
H1 H6
X1 X4 X3 X6
H5 H4 H2 H3
X5 X2
79
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
277 H1 - H5 H2 to H4
480 H1 - H6 H3 to H4
Secondary Volts
208 X2 to X4 X1- X5
277 X3 to X4 X1- X6
X3
H1 H2
123
H3
X2 X1 X0
123 123
PRIMARY: 480 Volts Delta
SECONDARY: 208Y/120 Volts
TAPS: 1-5% ANFC & 1-5% BNFC
80
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
504 H1, H2, H3 1
480 H1, H2, H3 2
456 H1, H2, H3 3
Secondary Volts
208 X1, X2, X3
120 X1 to X0
1 phase X2 to X0
X3 to X0
PRIMARY: 480 Volts Delta
SECONDARY: 208Y/120 Volts
TAPS: 2, 2 1/2% ANFC, 2, 2 1/2% BNFC
12345 12345 12345
X3 X2 X1
H1 H2 H3
X0
81
Connect Connect
Primary Primary Inter- Secondary
Volts Lines To Connect Lines To
504 H1, H2, H3 1
492 H1, H2, H3 2
480 H1, H2, H3 3
468 H1, H2, H3 4
456 H1, H2, H3 5
Secondary Volts
208 X1, X2, X3
120 X1 to X0
1 phase
X2 to X0
X3 to X0
