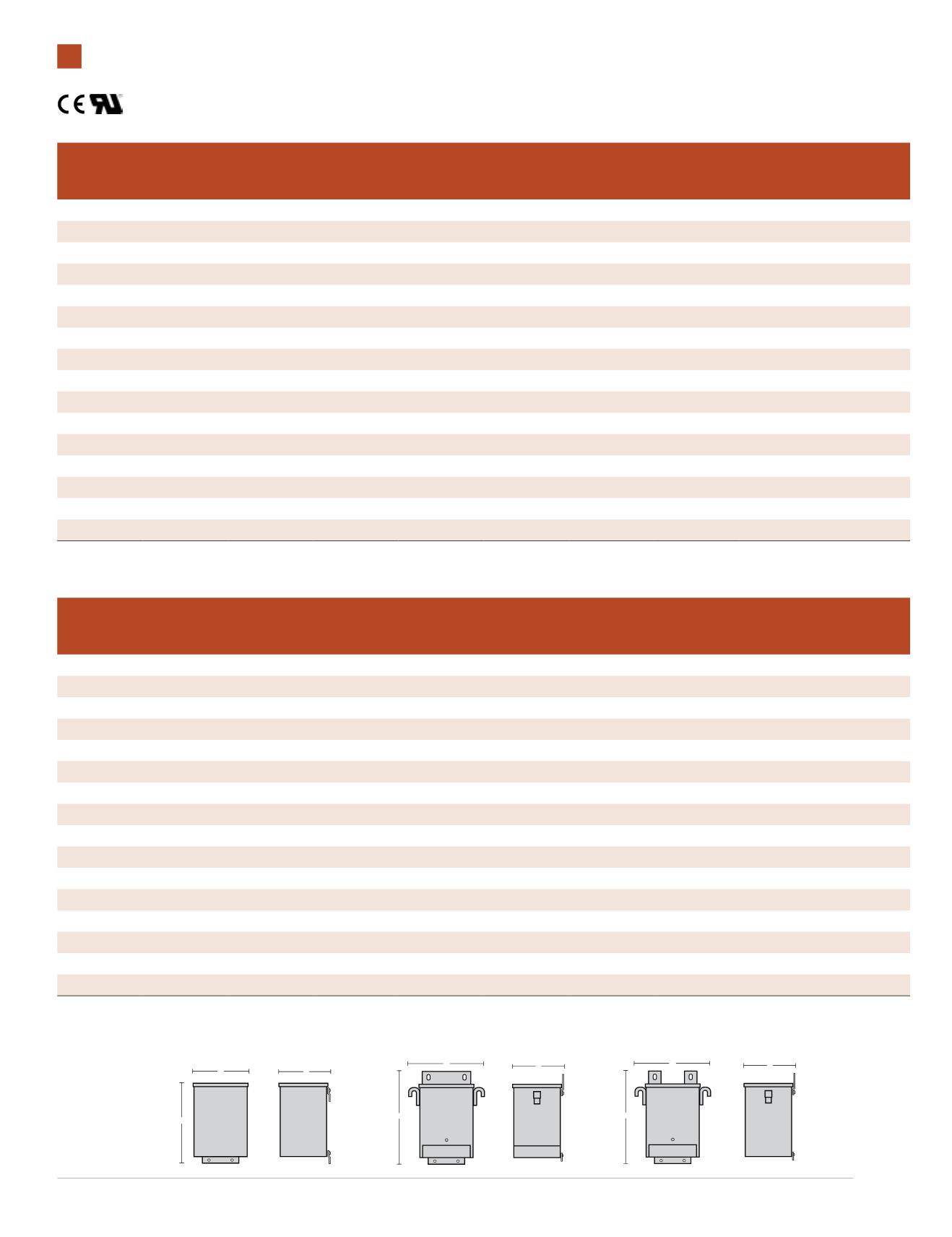

hubbell-acmeelectric.comD r i v e I s o l a t i o n T r a n s f o r m e r s a n d A C L i n e R e a c t o r s
Selection Charts
480 VOLTS, 3% Z, 60 Hz (600 VOLTS, 2.4% Z; 240 VOLTS, 6% Z)
Motor*
Dimensions
Catalog
Number
H.P.
Amp
Reactor
Amp
uH
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
Dimensional
Drawings
Weight
(Lbs.)(Kg.)
ALRB002LWE
1
2.1
2
11027
9.68 (24.6)
4.75 (12.1)
4.5 (11.4)
A
10 (4.5)
ALRB003LWE
1.5
3
3
7351
9.68 (24.6)
4.75 (12.1)
4.5 (11.4)
A
10 (4.5)
ALRB004LWE
2
3.4
4
5513
9.68 (24.6)
4.75 (12.1)
4.5 (11.4)
A
10 (4.5)
ALRB006LWE
3
4.8
6
3676
9.68 (24.6)
4.75 (12.1)
4.5 (11.4)
A
10 (4.5)
ALRB008LWE
5
7.6
8
2757
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
24 (10.9)
ALRB012LWE
7.5
11
12
1838
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
24 (10.9)
ALRB016LWE
10
14
16
1378
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
25 (11.3)
ALRB025LWE
15
21
25
882
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
28 (12.7)
ALRB027LWE
20
27
27
817
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
28 (12.7)
ALRB035LWE
25
34
35
630
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
32 (14.5)
ALRB045LWE
30
40
45
490
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
33 (15.0)
ALRB055LWE
40
52
55
401
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
73 (33.1)
ALRB080LWE
60
77
80
276
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
75 (34.0)
ALRB110LWE
75
96
110
200
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
78 (35.4)
ALRB130LWE
100
124
130
170
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
85 (38.6)
ALRB160LWE
125
156
160
138
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
87 (39.5)
* Motor HP and Amp rated at 480 volts.
480 VOLTS, 5% Z, 60 Hz (600 VOLTS, 4% Z; 240 VOLTS, 10% Z)
Motor*
Dimensions
Catalog
Number
H.P.
Amp
Reactor
Amp
uH
Height
(Inches)(Cm.)
Width
(Inches)(Cm.)
Depth
(Inches)(Cm.)
Dimensional
Drawings
Weight
(Lbs.)(Kg.)
ALRC002LWE
1
2.1
2
18378
9.68 (24.6)
4.75 (12.1)
4.5 (11.4)
A
10 (4.5)
ALRC003LWE
1.5
3
3
12252
9.68 (24.6)
4.75 (12.1)
4.5 (11.4)
A
10 (4.5)
ALRC004LWE
2
3.4
4
9189
9.68 (24.6)
4.75 (12.1)
4.5 (11.4)
A
10 (4.5)
ALRC006LWE
3
4.8
6
6126
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
24 (10.9)
ALRC008LWE
5
7.6
8
4594
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
24 (10.9)
ALRC012LWE
7.5
11
12
3063
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
26 (11.8)
ALRC016LWE
10
14
16
2297
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
28 (12.7)
ALRC025LWE
15
21
25
1470
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
32 (14.5)
ALRC027LWE
20
27
27
1361
11.5 (29.2)
10.31 (26.2)
7.13 (18.1)
B
32 (14.5)
ALRC035LWE
25
34
35
1050
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
74 (33.6)
ALRC045LWE
30
40
45
817
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
75 (34.0)
ALRC055LWE
40
52
55
668
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
75 (34.0)
ALRC080LWE
60
77
80
459
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
85 (38.6)
ALRC110LWE
75
96
110
334
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
107 (48.5)
ALRC130LWE
100
124
130
263
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
107 (48.5)
ALRC160LWE
125
156
160
230
11.83 (30.0)
14.17 (36.0)
8.82 (22.4)
C
121 (54.9)
* Motor HP and Amp rated at 480 volts.
H
D
W
D
W
H
H
W
D
Diagram A
Diagram B
Diagram C
