Contour Generation ll

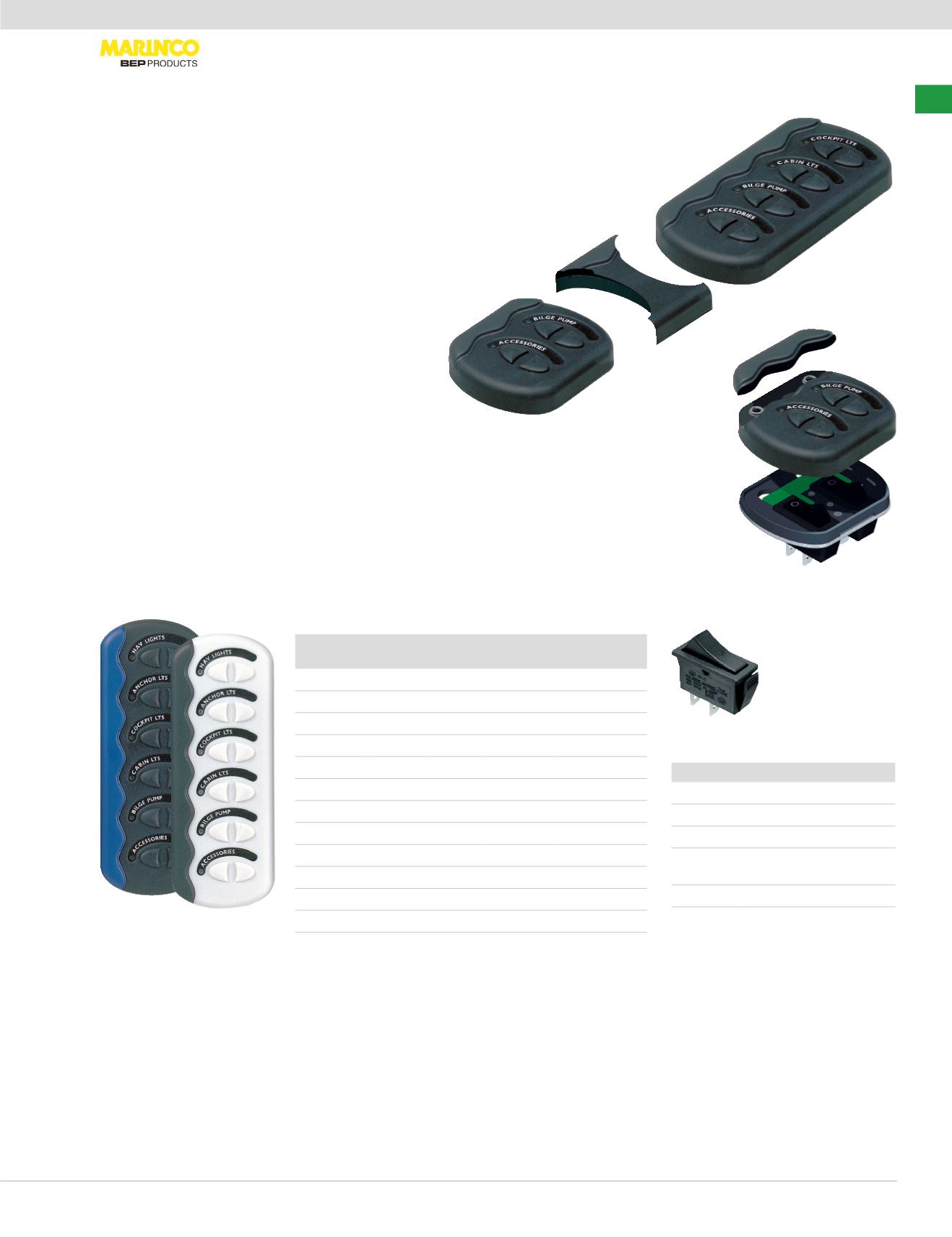

The Contour Generation II Spray Proof Range offers unique styling using the
latest techniques in injection molding. The switch tray is molded plastic with a
rubber gasket and seal molded into the plastic. The cover is molded in a clear
plastic with a rubber over-mold allowing the flexibility to operate the switches
through the front of the panel while providing a clear window for label
backlighting. The contour wave strip is interchangeable allowing for custom
colors for OEM applications. Standard color supplied is black panel with
charcoal strip.
G2 can be mounted vertically or horizontally and is available in
2, 4 and 6 way configurations.
A joiner (CG2-JB) is available for multiple panel installations.
Supplied complete with on/off switches, these can be
interchanged with a variety of different switch options.
• Replaceable clip-on contour wave
(customized colors available for OEMs)
• Mounting screws covered by switch cover
• Backlit LEDs
• Flexible overshot cover allows for easy switch operation
• Ribbed gasket provides watertight seal with switch cover
• Molded gasket on panel base creates watertight seal against
mounting surface
• Unique design allows labels to be read whether mounted vertically
or horizontally.
• Switches rated at 16A DC
• Panel supplied standard with label SET-G2-1
(labels SET-G2-2 ordered separately, page 150)
CG2-4W
CG2-2W
CG2-JB
Switches Color
Fuses
Label
Sheet
Item #
2
Charcoal No SET-G2-1
CG2-2W
2
Charcoal 1
SET-G2-1
CG2-2W-F
4
Charcoal No SET-G2-1
CG2-4W
4
Charcoal 2
SET-G2-1
CG2-4W-F
6
Charcoal No SET-G2-1
CG2-6W
6
Charcoal 3
SET-G2-1
CG2-6W-F
2
White No SET-G2-1
CG2-2W-W
2
White 1
SET-G2-1
CG2-2W-F-W
4
White No SET-G2-1
CG2-4W-W
4
White 2
SET-G2-1
CG2-4W-F-W
6
White No SET-G2-1
CG2-6W-W
6
White 3
SET-G2-1
CG2-6W-F-W
Spare Switches for
Contour Generation II
Item # Switch type
SW-CG1
On/Off
SW-CG2
On/Off Momentary
SW-CG3
On/Off/On
SW-CG4
Momentary On/Off/
Momentary On
SW-CG5
On/On
