Item #
Switches Fuses Voltage
1000-6W
6
6x 15A 12
1000-6W-24V
6
6x 15A 24
Description
Item #
10A Ammeter (internal shunt)
1000-AM10
20A Ammeter (internal shunt)
1000-AM20
50A Ammeter (external shunt, supplied)
1000-AM50
12 Volt Systems
1000-VM-12V
24 Volt Systems
1000-VM-24V
DC Systems Monitor
1000-DCSM
AC Systems Monitor
1000-ACSM

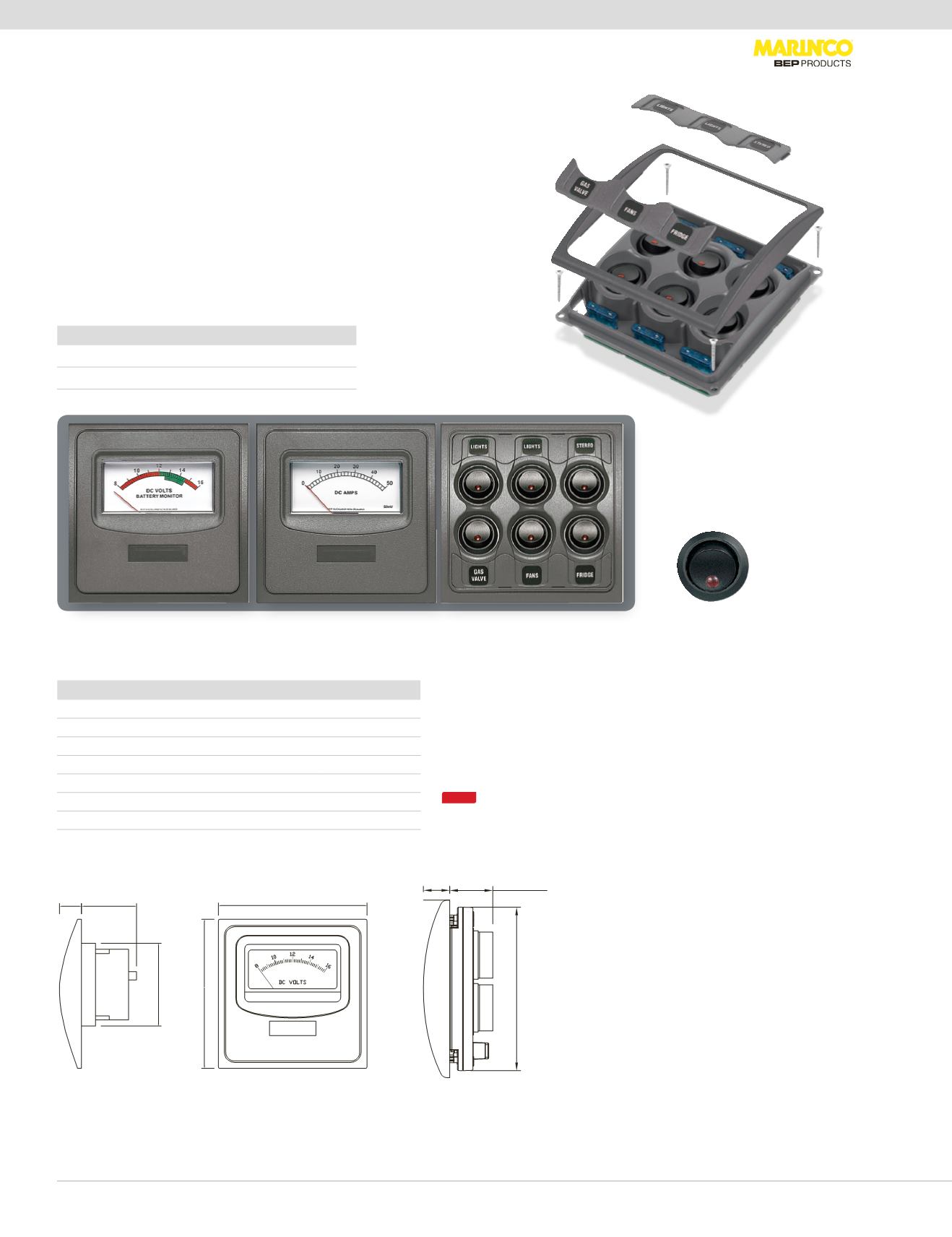

Contour Interior Switch Panel 1000 Series
The smart, economical interior option for smaller vessels. Fully modular
and built with ease of access in mind.
• Removable frame conceals mounting screws
• Concealed ATC fuses accessible from front of panel; ATC fuses supplied
• 16A rocker switches
• Panels are modular and square for vertical or horizontal stacking.
• LED Systems On light
• Supplied with: Spacer for accurate mounting placement,
label sheet Item # SET-1000
• Maximum panel load 50A
SW-RVS2
ON/OFF
1000-6W
Ammeter
1000-AM50
Switch Panel
1000-6W
Voltmeter
1000-VM-12V
108mm (4.25")
108mm (4.25")
60mm (2.4")
16mm
(.6")
40mm
(1.6")
3-15/16" (99.34 mm)
5/8" (16 mm)
1-1/16" (26.21 mm)
NEW
NEW
NEW
NEW
Now available with digital
AC and DC systems monitors
Side profile
systems panel
