Description
Item #
OEM #
Footprint*
Fuseholder, ANL
778-ANL
778-ANL-B 1 x
Fuseholder, ANL with
additional cable clamping studs
778-ANL2S
778-ANL2S-B 1.5 x
ANL Through Panel
778-ANLTP
778-ANLTP-B 1 x
* See page 159 for Footprint details
NEW
NEW
NEW
NEW

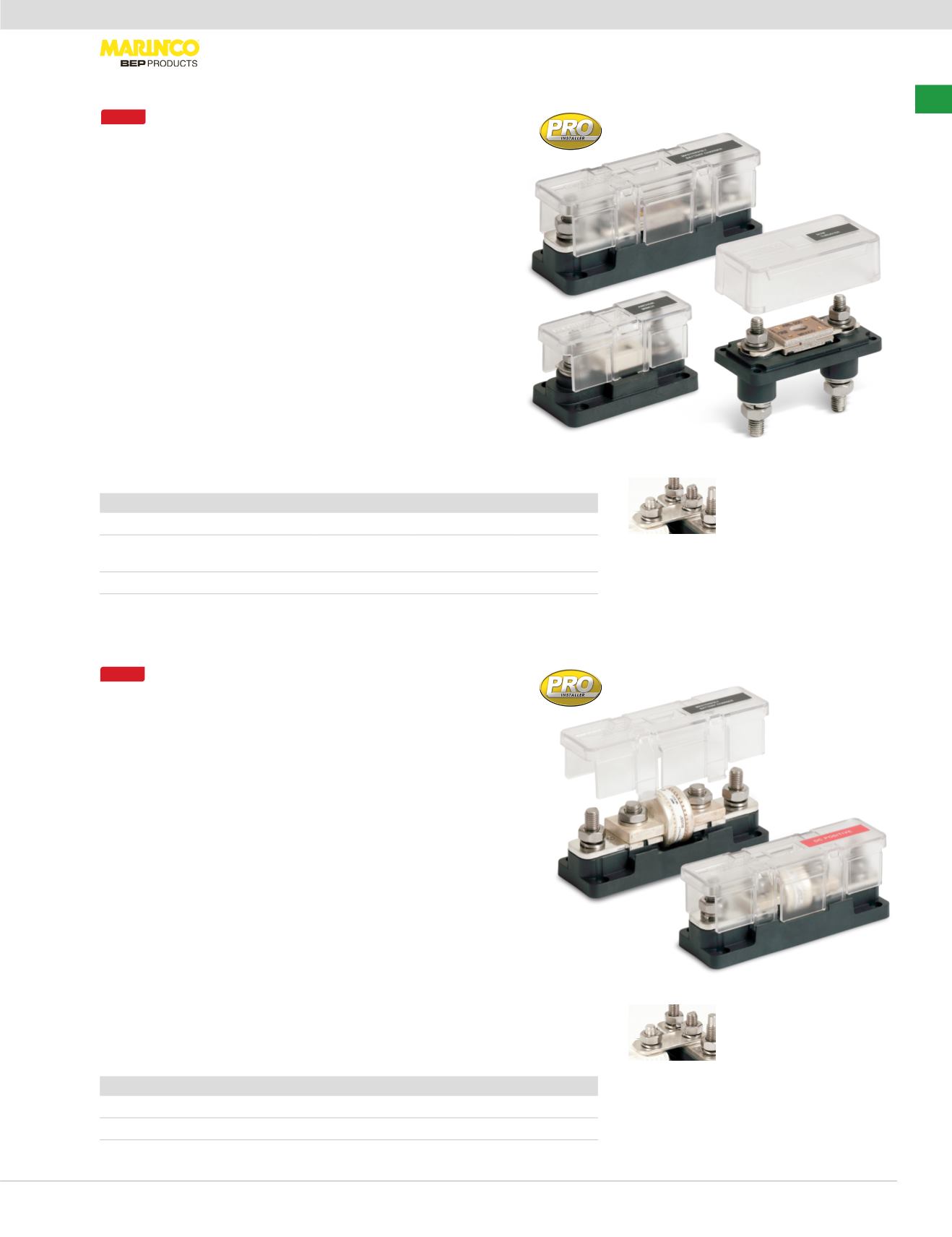

ANL Fuse Holders
These ANL fuseholders offer unparalleled circuit protection choice
for both the installer and end-user. The innovative Through-Panel
fuseholder (778-ANLTP) provides superior access for fuse
inspection and replacement. Small electrical loads are catered
to with the compact 778-ANL unit while additional cable security
and highest capacity is provided by the 778-ANL-2S, featuring
additional studs for separate clamping of cables.
Specifications:
• Cable connection studs: Shared 8mm (5/16") on 778-ANL.
• 10mm (3/8") studs on 778-ANL-TP and 778-ANL-2S
• Fuse mounting studs: 8mm (5/16")
• Double washers allow any ANL fuse brand to be fitted
• Fuse type: ANL or ANN (fast blow)
• Swinging fuse style allows changing fuse without
removal of fastening nuts
• Amperage: determined by fuse sizing, 778-ANL: 35-300A,
778-ANL2S: 35-750A, 778-ANLTP, 35-500A
• 50 VDC (or determined by fuse fitted)
• Tinned CDA102 copper conductors 778-ANL-2S
• Tinned CDA260 high conductivity brass conductors 778-ANLTP
NEW
NEW
NEW
NEW
Class-T Fuse Holders
Class-T fusing provides the ultimate protection for high power circuits,
and where extremely fast fuse blow characteristics are required. Modern
battery technologies such as Mastervolt Lithium Ion or AGM are capable
of very high short circuit currents which may be beyond the interrupt
rating of standard circuit breakers and other types of fuse. Two sizes of
Pro Installer Class-T Fuseholder are available which accommodate fuses
from 225-400 Amps, and 450-600 Amps respectively.
Specifications:
• Cable connection studs: 10 mm (3/8") studs
• Fuse mounting studs: 10 mm (3/8") 225-400A holder, 12 mm (1/2")
450-600A holder
• Fuse type: Class-T (JLLN / TJN / A3T)
• Maximum amperage: Determined by fuse sizing, either 400A
or 600A
• 50 VDC
• High temperature, fibre reinforced plastic base provides
strength and chemical resistance
• Clear polycarbonate cover
• Tinned CDA102 Copper conductors
• Stainless steel studs, washers and nuts for longevity in the
marine environment
• Metric threads
Description
Item #
OEM #
Footprint*
Fuseholder, Class-T 225–400A
778-T2S-400
778-T2S-400-B 1.5 x
Fuseholder, Class-T 450–600A
778-T2S-600
778-T2S-600-B 1.5 x
* See page 159 for Footprint details
Manage:
Battery Distribution Accessories
Manage
|
Distribution Components
See page 127 for ANL fuses.
See page 127 for Class T fuses.
Optimal space savings
with Pro Installer Link Bars
See page 164
Optimal space savings
with Pro Installer Link Bars
See page 164
