Manage:

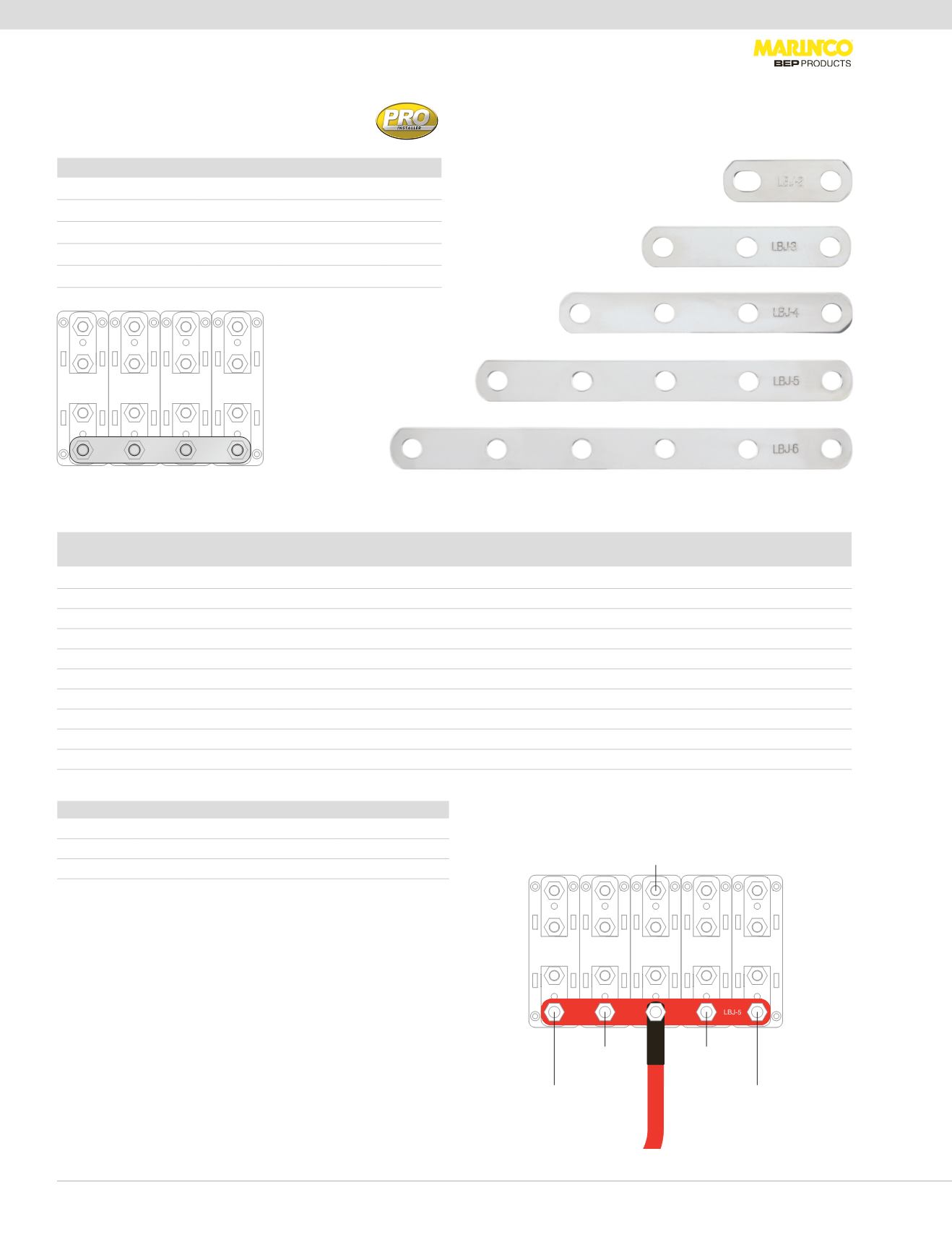

Battery Distribution Accessories
Marking
OEM #
Qty
Joining 2 products
LBJ-2
779-LBJ-2-B 5/pkg
Joining 3 products
LBJ-3
779-LBJ-3-B 1/pkg
Joining 4 products
LBJ-4
779-LBJ-4-B 1/pkg
Joining 5 products
LBJ-5
779-LBJ-5-B 1/pkg
Joining 6 products
LBJ-6
779-LBJ-6-B 1/pkg
Side to Side Joining Selection Guide
LB-2
LBJ-4
Specifications
Marking Item #
OEM #
Pkg
Qty Description
Function
Max
Amps
L x W
in
L x W
mm
LB-1
—
779-LB-1-B
5 Link Bar 31-34.7 mm
Short Link Bar 8 & 10mm studs
650 2.2"x1.0"
56x25
LB-2
—
779-LB-2-B
5 Link Bar 35.5-42.5 mm
Medium Link Bar 8 & 10mm studs
650 2.8"x1.0"
69x25
LBJ-2
—
779-LBJ-2-B 5 Joiner 2-way 46-50 mm
Long Link Bar 8 & 10mm studs
650 3.0"x1.0"
74x25
LBZ-1
—
779-LBZ-1-B 5 Link Z Bar to Z Bar
Joins Z Bars End to End, Back to Back 250 2.0"x0.5"
49x12
LBZ-2
—
779-LBZ-2-B 5 Link Z Bar to Busbar or F-holder Joins Z Bars to Busbars or F-holders 400 2.1"x1.0"
53x25
LBJ-2
779-LBJ-2*
779-LBJ-2-B 1 Joiner 2-way
Side to Side joiner 2 products
650 3.0"x1.0"
74x25
LBJ-3
779-LBJ-3*
779-LBJ-3-B 1 Joiner 3-way
Side to Side joiner 3 products
525 4.9"x1.0"
123x25
LBJ-4
779-LBJ-4*
779-LBJ-4-B 1 Joiner 4-way
Side to Side joiner 4 products
450 6.9"x1.0"
172x25
LBJ-5
779-LBJ-5*
779-LBJ-5-B 1 Joiner 5-way
Side to Side joiner 5 products
400 8.8"x1.0"
221x25
LBJ-6
779-LBJ-6*
779-LBJ-6-B 1 Joiner 6-way
Side to Side joiner 6 products
350 10.8"x1.0"
270x25
Link Bar Sets
Item #
Pkg Qty Description
Contains
779-LB-EES*
2 Link Bar End: End Set
1x LB-1, 1x LB-2
779-LB-ZS*
2 Link Bar Z Busbar Set
1x LBZ-1, 1x LBZ-2
779-LB-BSS*
4 Link Bar Battery Switch Set
1x LB-1, 3x LB-2
For High Load
Link Joiner Applications:
(maximum permissable loads shown)
Bring supply cable to center of
linkbar, and to hightest loads
Current doesn't pass
through link bar
650
Amps
525
Amps
525
Amps
650
Amps
NOT Actual Size
Links can be doubled for higher loads.
Example: If 2x 779-LBJ-5-B Joiners are
used in the diagram at left, quoted amps
can be doubled; maximum of 1300
Amps to the adjacent stud, or 1050
Amps to the stud 2 positions away
from the feed cable.
*Available November 2014
