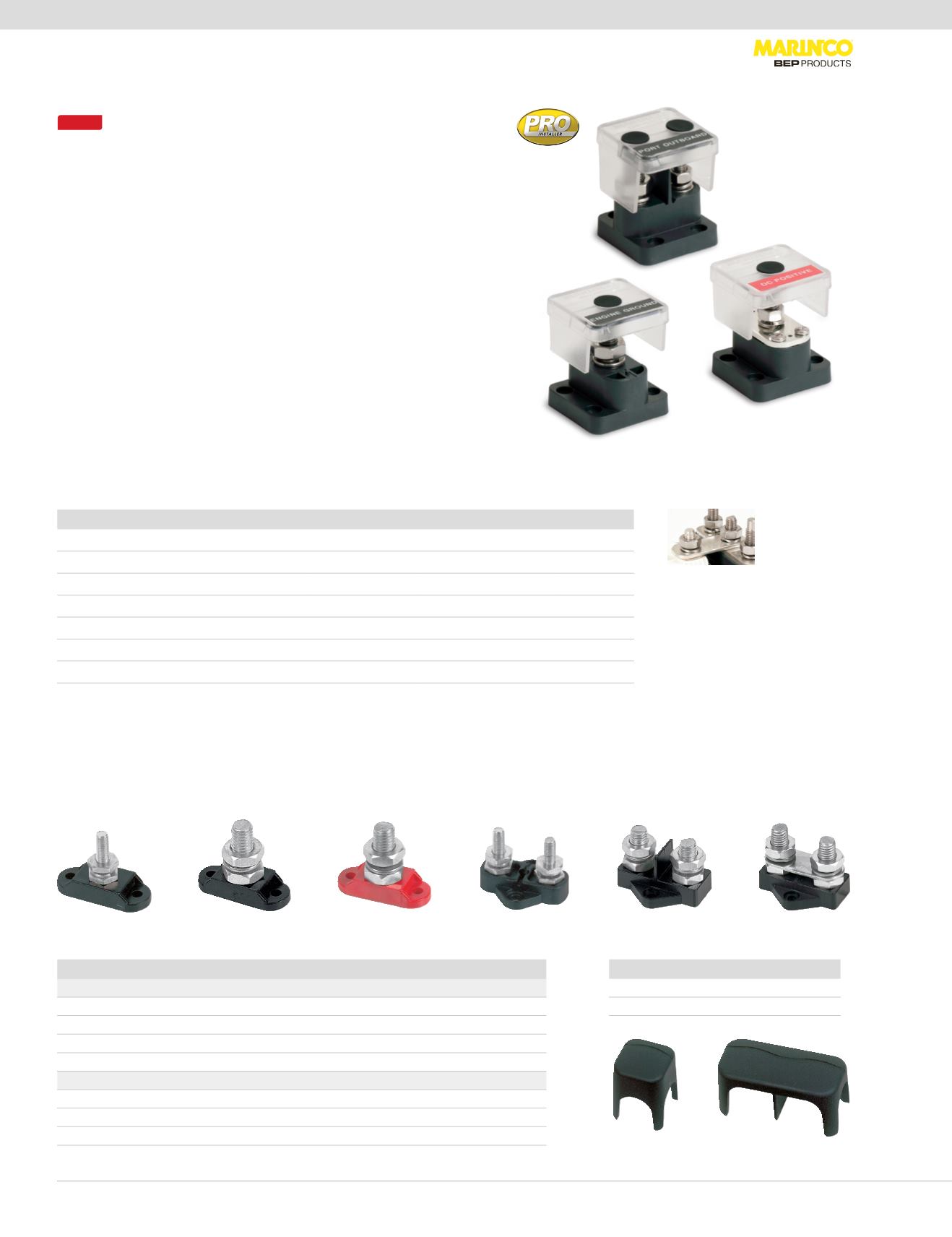

Insulated Studs
Pro Installer Insulated studs are available in single and twin stud versions,
featuring 8 mm (5/16") and 10 mm (3/8") variants. A double stud version with
10mm and 8mm studs is also included for extending outboard motor cables.
The Power Tapping Plate single stud models provide convenient termination
points for additional small cables. Pro Installer family features are replicated
with these insulated studs, generous stud length, modular footprint,
insulating covers with label recess, common interconnection height.
Specifications:
• Power tapping plate: 4x 4 mm (5/16") terminals
• Maximum current through power tapping plate: 50A per
terminal (4x 50A maximum)
• Note: no power passes through the stud so no amp rating is given
• 50 VDC
• High temperature, fibre reinforced plastic base provides strength and
chemical resistance
• Clear polycarbonate cover with snap-out extra cable access
• Stainless steel studs, screws and nuts for longevity in the marine
environment
• Insert moulded studs with metric threads
• Double studs feature ‘snap out’ insulating partition, to allow
linking of studs
Description
Item #
OEM #
Footprint*
Single 8mm
IST-8MM-1S
IST-8MM-1S-B
0.5 x
Double 8mm
IST-8MM-2S
IST-8MM-2S-B
0.5 x
Double 10mm/8mm
IST-10MM-8MM
IST-10MM-8MM-B 0.5 x
Single 10mm
IST-10MM-1S
IST-10MM-1S-B 0.5 x
Double 10mm
IST-10MM-2S
IST-10MM-2S-B 0.5 x
Single 8mm with power Tapping Plate
IST-8MM-1SPT
IST-8MM-1SPT-B 0.5 x
Single 10mm with power Tapping Plate
IST-10MM-1SPT
IST-10MM-1SPT-B 0.5 x
* See page 159 for Footprint details
IST-10MM-8MM
IST-8MM-1SPT
IST-10MM-1S
Insulated Studs & Covers
• Made with high temperature plastic bases
• Dual studs ideal for +ve / -ve connections,
branch circuits, windlass or inverter installations.
• Stud covers push securely over the threaded
stud covering to ABYC standards
• Covers supplied with display versions.
Studs
Item #
OEM #
Stud Size
Polarity
Single Studs
IS-6MM-1R/DSP*
IS-6MM-1R 1/4" / 6 mm
Positive
IS-6MM-1/DSP*
IS-6MM-1
1/4" / 6 mm
Negative
—
IS-10MM-1R 3/8" / 10 mm
Positive
—
IS-10MM-1
3/8" / 10 mm
Negative
Dual Studs
IS-6MM-2/DSP*
IS-6MM-2
2 x [1/4" / 6 mm]
—
IS-10MM-2
2 x [3/8" / 10 mm]
—
IS-10MM-2/L 2 x [3/8" / 10 mm] with link plate
*Item #'s come with cover, OEM #'s do not.
Covers
Item #
Description
ISC-10BK
Black negative 10 mm
ISC-6-2
Double 6 mm
IS-6MM-1
IS-6MM-2
IS-6MM-2/L
IS-10MM-2
ISC-10BK
ISC-6-2
Manage:
Battery Distribution Accessories
IS-10MM-1
IS-10MM-1R
Optimal space savings
with Pro Installer Link Bars
See page 164
