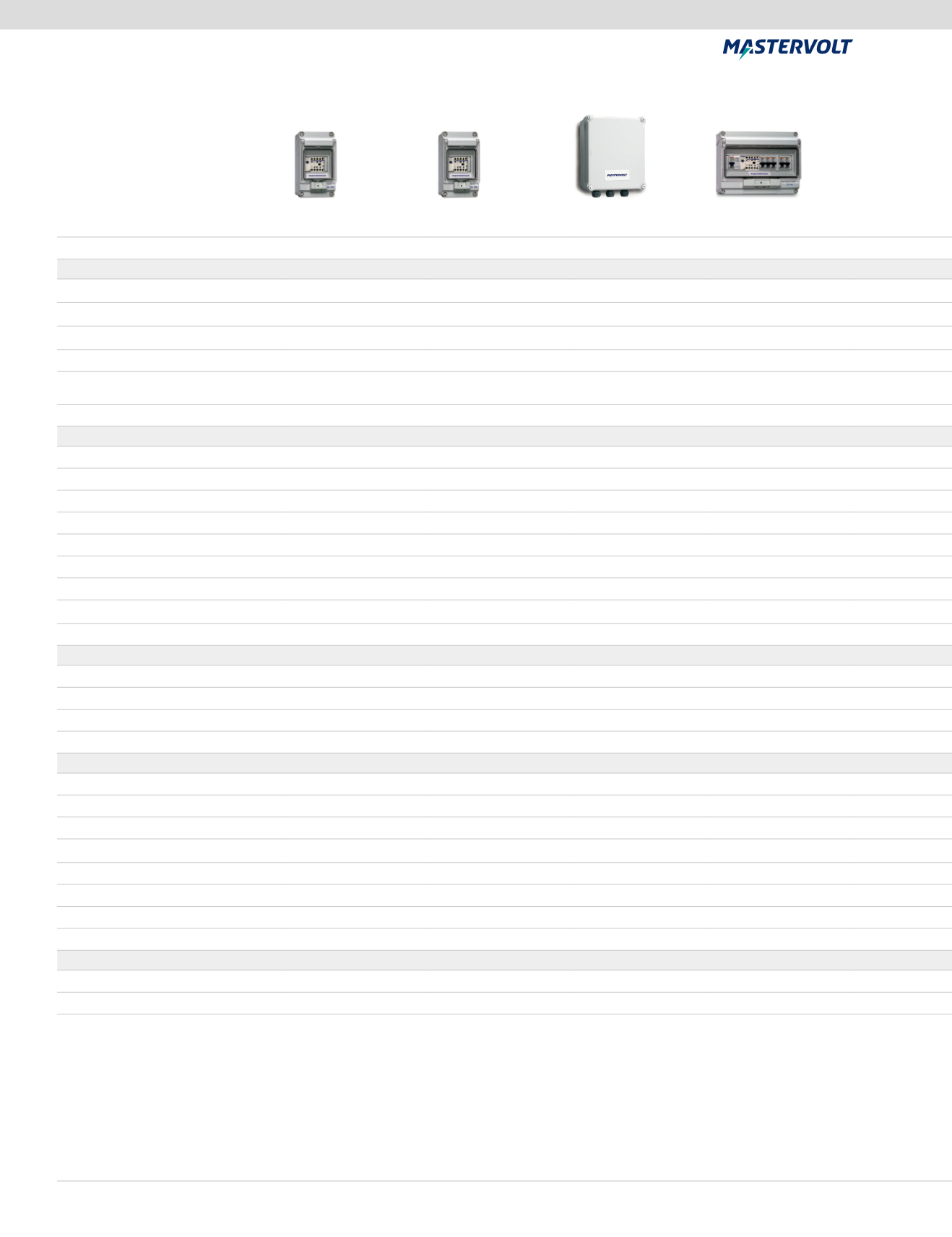

Masterswitch
5 kW
Masterswitch
10 kW
Masterswitch
25 kW
Masterswitch
Fuses 5 kW
Item #
55006010
55006015
55003500
55006060
Input
Nominal input voltage
230V (50/60Hz)
230V (50/60Hz)
230V (50/60Hz)
230V (50/60Hz)
Input voltage range
200-250V AC
200-250V AC
200-250V AC
200-250V AC
Number of inputs
2
2
2
2
Number of outputs
1
1
1
2
Dimensions, hxwxd
7.9"x4.3"x4.5"
200x110x115 mm
7.9"x4.3"x4.5"
200x110x115 mm
11.5"x9.5"x6.6"
291x241x168 mm
7.9"x10"x4.5"
200x255x115 mm
Weight
2.6 lbs / 1.2 kg
2.9 lbs / 1.3 kg
8.4 lbs / 3.8 kg
4.6 lbs / 2.1 kg
Version
Connection for remote control
no
no
no
no
MasterBus compatible
no
no
no
no
LED indication on cabinet
no
no
no
no
Nominal input current generator
20A
40A
125A
16A
Nominal input current shore
20A
40A
125A
16A
Nominal input current inverter
n.a.
n.a.
n.a.
20A
Earth leakage switch
n.a.
n.a.
n.a.
yes (1x)
Generator input switch
no
no
no
no
Time delay generator input
0-10 sec (adjustable)
0-10 sec (adjustable)
0-10 sec (adjustable)
0-10 sec (adjustable)
Output
Nominal current shortbreak output
n.a.
n.a.
n.a.
6A + 6A + 6A
Nominal current power output
20A
40A
125A
6A + 10A
Nominal current generator output
n.a.
n.a.
n.a.
n.a.
Automatical circuit breakers
no, system dependent
no, system dependent
no, system dependent
yes
Technical Specifications
Power consumption (AC all inputs)
7VA
7VA
26VA
7VA
Power consumption (only inverter power)
no load consumption
no load consumption
no load consumption
no load consumption
Temperature range (specified)
-5°C to 60°C
-5°C to 60°C
-5°C to 60°C
-5°C to 60°C
Temperature range (allowed)
-25°C to 70°C (may not meet the specified tolerancies)
Temperature range (storage/non operating) -60°C to 80°C
-60°C to 80°C
-60°C to 80°C
-60°C to 80°C
Relative humidity
maximum 95%, non condensing
maximum 95%, non condensing
Transfer time
switch on 12-22 ms / switch off 4-19 ms
switch on 12-22 ms / switch off 4-19 ms
Frequency watch
no
no
no
no
Mechanical
Cable size
0.5-10 mm
2
/AWG 20-7
0.5-10 mm
2
/AWG 20-7
4-50 mm
2
/AWG 10-1/0
0.5-10 mm
2
/AWG 20-7
Protection degree
IP55
IP55
IP55
IP55
* Also available in 9 kW, Item # 55106200. Specifications identical to 7 kW, except current is 80A.
For detailed specifications, scale drawings, 3D files, certificates, manuals and 120V models see
mastervolt.com.
