Tank level screen
Stop guessing and know
immediately the contents of
up to 20 tanks. You can also
install your own warning
signals for full or (nearly)
empty tanks. All you need to
do is connect the MasterBus
Tank level Interface to the
MasterBus system.
Favourites screen
The favorites screen can be
custom designed to meet your
specific needs for information
and control. Any information
that is available on the
MasterBus network can be
shown in the most logical way.
Multiple pages can display
information, for example, one
overview page, one or two
breaker pages, an engine
information page and a
NMEA2000 information page.
Digital switching screen
This screen shows the
complete layout, lights,
selected pumps and other
consumers. You manage the
loads by clicking the icons.
The background image can
be uploaded for full
customization. Alarm
notifications are shown via
eye-catching pop-ups.
Home screen
The home screen provides a
status overview of power
sources like grid power,
inverters, generators and
batteries. A basic form of
control is possible, for
example turning on and off
your inverter.

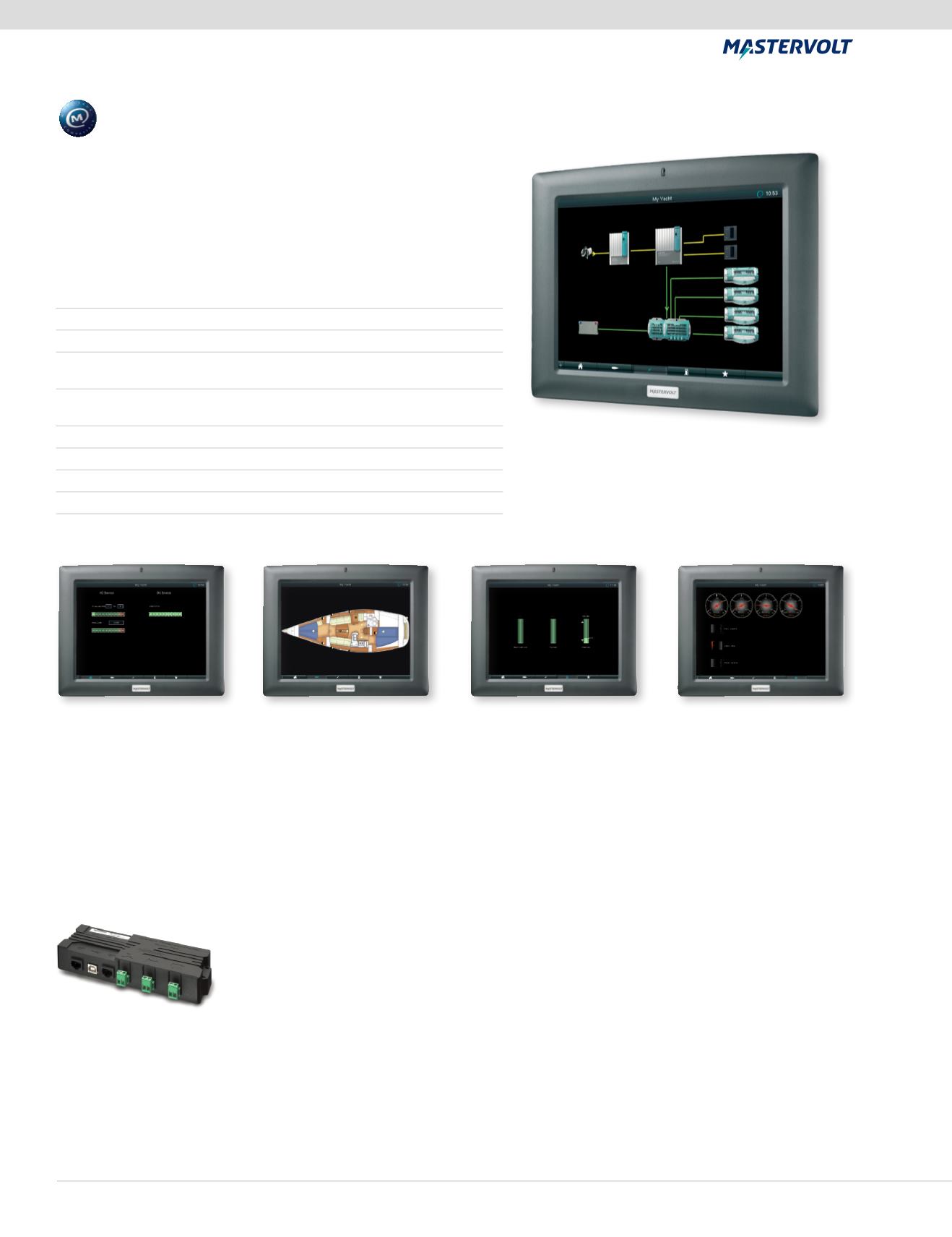

MasterView System
Interactive touchscreen
This full color graphical display helps installers to configure the electrical
onboard system, and is extremely easy to reproduce. Configuration,
monitoring and operation becomes easier, cheaper, lighter and faster.
The software makes complicated electrical systems understandable
for each user. Electricity has become fun to operate!
Manage:
MasterBus Panels
System overview
This screen gives a dynamic graphical overview
of your electric system, answering any questions
you have in an instant. Incorrect line voltages are
shown in red, inactive circuits in grey: It couldn’t
be easier.
Item #
77010400
Display
10.4" colour touch screen
Dimensions (HxWxD) 8.7"x10.9"x1.5" / 222x276x38 mm
MasterBus connection by means of System Panel Controller
(delivered as standard)
Power
by means of System Panel Controller
(delivered as standard)
Power consumption 28W
Protection degree
IP64 (front)
Weight
3.1 lbs / 1.4 kg
Languages
ENG, NL, DE, SP, IT, FRA, FIN, SWE, DEN, NOR
System Panel Controller
• Connect the MasterView System or your PC with the MasterBus network.
• Provides the power and software license key for the MasterView System panel.
• Delivered as a standard with MasterView System (also separately available).
Item # 77031900
