Manage
|
MasterBus

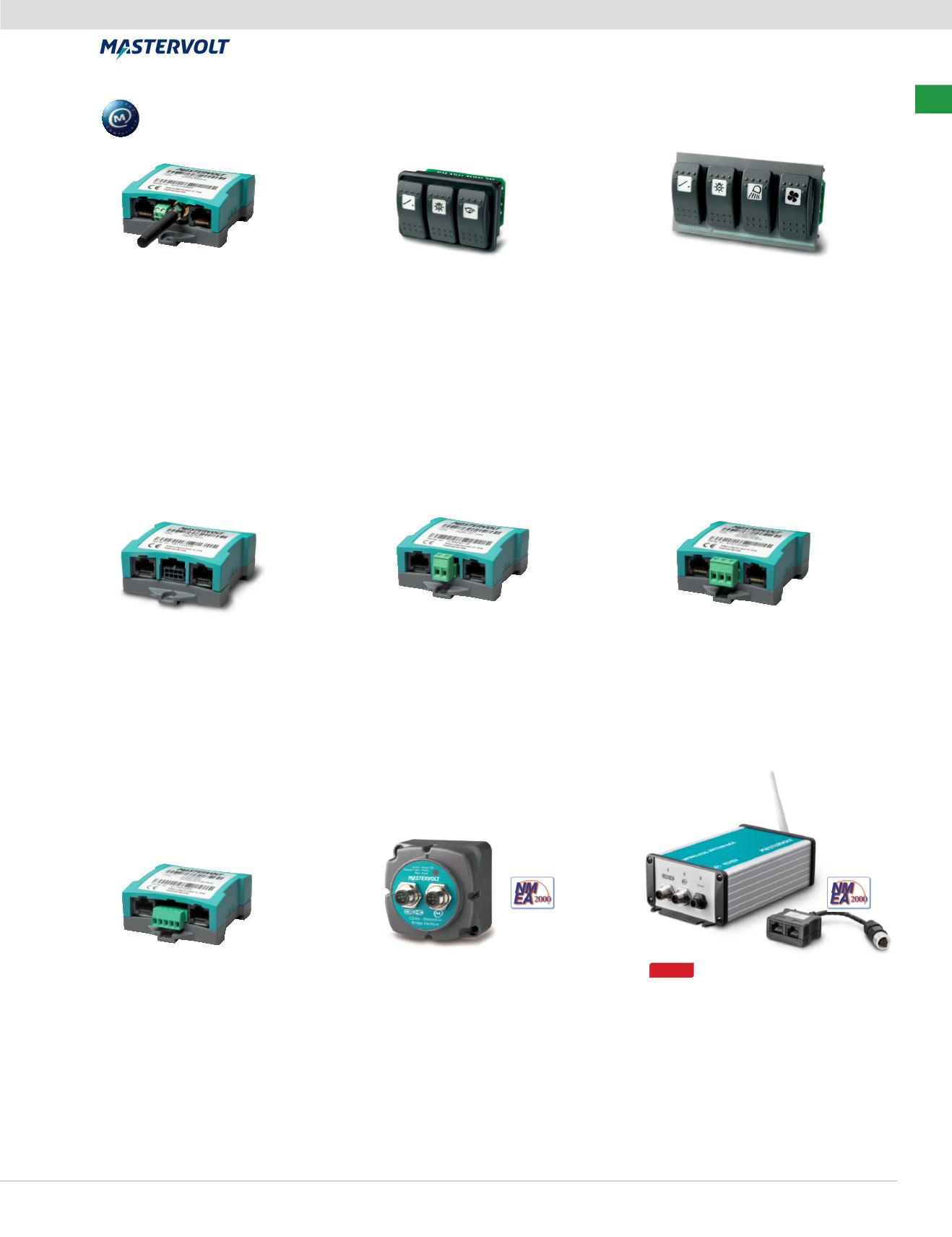

Manage:
Control Modules & Interfaces
MasterBus Tank Level
Interface
This interface converts analogue sensor
input signals to MasterBus data.
Selectable input signals: 4-20 mA,
0-300
Ω
, 8-70V DC.
Item # 77030300
GPRS Module
Communicate with your system via
mobile phone, allowing you to monitor
current information or operate the
system by remote controlvia a text
message or easy shortcuts. Alarm
notifications per text message
are optional.
Item # 77031000
Multipurpose Contact Output
Mastervolt’s potential-free contact can
be customised and programmed to give
your MasterBus network unprecedented
possibilities. Use it, for example,
to control a ventilator or operate a
generator from a different brand.
Potential free contact is NO-C-NC -
1A / 30V DC.
Item # 77030500
Digital AC 1x6A
Switches all AC loads, no matter where
they are. Loads up to 6 A can be directly
switched, higher loads should be
switched via a relay.Max. relay current
is 6A (230V AC single pole).
Item # 77031500
Digital Input
Connect up to four switches to the
MasterBus network. Delivery includes
connection cables.
Item # 77030900
Switch Input 4 PCB
Provides LED indications for additional
information. For example: The LED will
blink when a connected lamp fails.
Distance between switches is 1.07"
(27.3 mm).
Item # 77031400
CZone MasterBus
Bridge Interface
The CZone MasterBus Bridge Interface
physically connects the MasterBus and
CZone™ networks together enabling the
two networks to communicate and act as
one, providing seamless control and
monitoring of devices on both networks
from either MasterBus or CZone™ displays.
Item # 80-911-0072-00
NEW
NEW
NEW
NEW
Wireless Interface
Mastervolt has produced a wireless
interface that allows your iPad
®
to interface
with an onboard digital switching system
for full monitoring and control of the
electrical equipment via a clear and
intuitive display. The interface acts as a
hub for the seamless connection between
the two popular Digital Switching protocols
of MasterBus and CZone.
Item # 80-911-0090-00
Interface
Item # 80-911-0095-00
MasterBus
Connector
Switch Input 3 PCB
Switch Input 3 makes Carling switches
compatible with MasterBus. Multiple
functions can be easily linked with this
module. Distance between switches is
1.03" (26.1 mm).
Item # 77031300
Specifications for MasterBus Interfaces on page 184.
More info on
page 190
