The CZone™ system decentralizes the DC power distribution system, locates circuit control and protection modules closer to
loads to shorten cable runs and reduce the size of conductors, significantly decreasing the cost and weight of the electrical
wiring harness. The system replaces complex wiring with a single data wire.
• Complex switch panel wiring removed, replaced with single data cable connection
• The grouping of multiple loads into common areas (Zones) with Output Interfaces is the key to the system
• Heavy-duty battery mains cable, replaced by multiple smaller conductors
Configuration
We provide the tools to help you determine the modules needed
based on your specific requirements. Then, simply program with
the CZone™ intuitive configuration tool.
Integration
The CZone™ system is NMEA 2000 certified and uses the
standard Micro cables and connectors. Being NMEA 2000
certified you can have trust in the network. This also allows a
single network backbone to be installed for multiple systems
(CZone™ and other NMEA 2000 devices). Additionally, the
CZone™ system can share certain monitoring functions with
other NMEA 2000 compliant screens.
Versatility & Security
The CZone™ system, designed for 9-32V systems, features
built-in timers, dimmers (including support for halogen lighting),
alarms, voltage reducers and load shedding. With safety in
mind, the CZone™ system features a manual bypass. Our
No-Single-Failure-Point technology ensures a plug-n-play system
that is designed to handle mishaps. If a module is damaged, the
system will automatically program the replacement module,
when it is plugged in. This means any module can be replaced
without using high tech service people. Our security features
allow custom configurations that can be locked.
TM

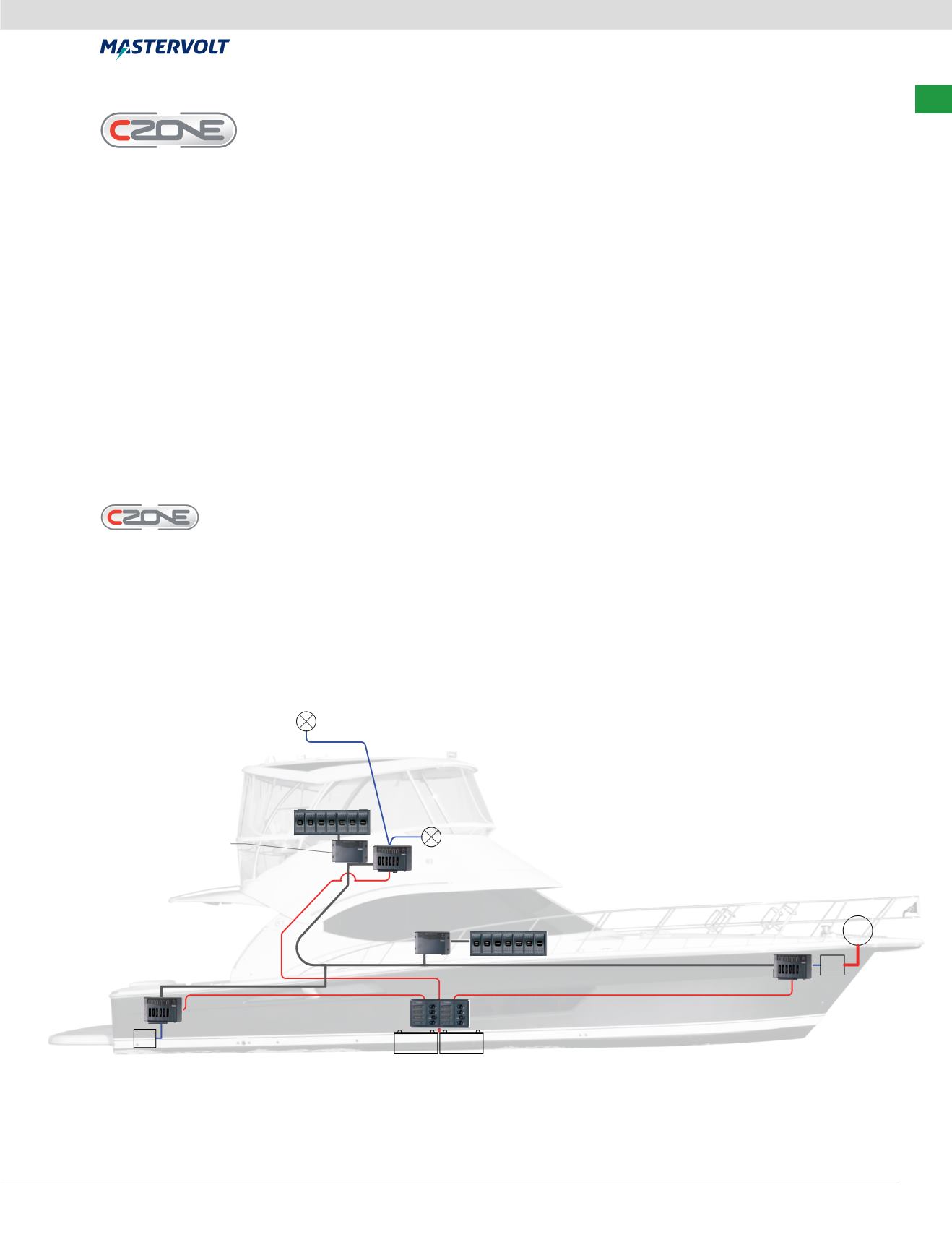

Manage:
CZone
™
Digital Control & Monitoring
Mast
Navigation
Light
F/Bridge
OI Module
Upper Helm
SCI Module
Lower Helm
SCI Module
NMEA 2000 Back Bone
FWD CBN
OI Module
Windlass
Battery Bank
Trim Tabs
AFT
OI Module
