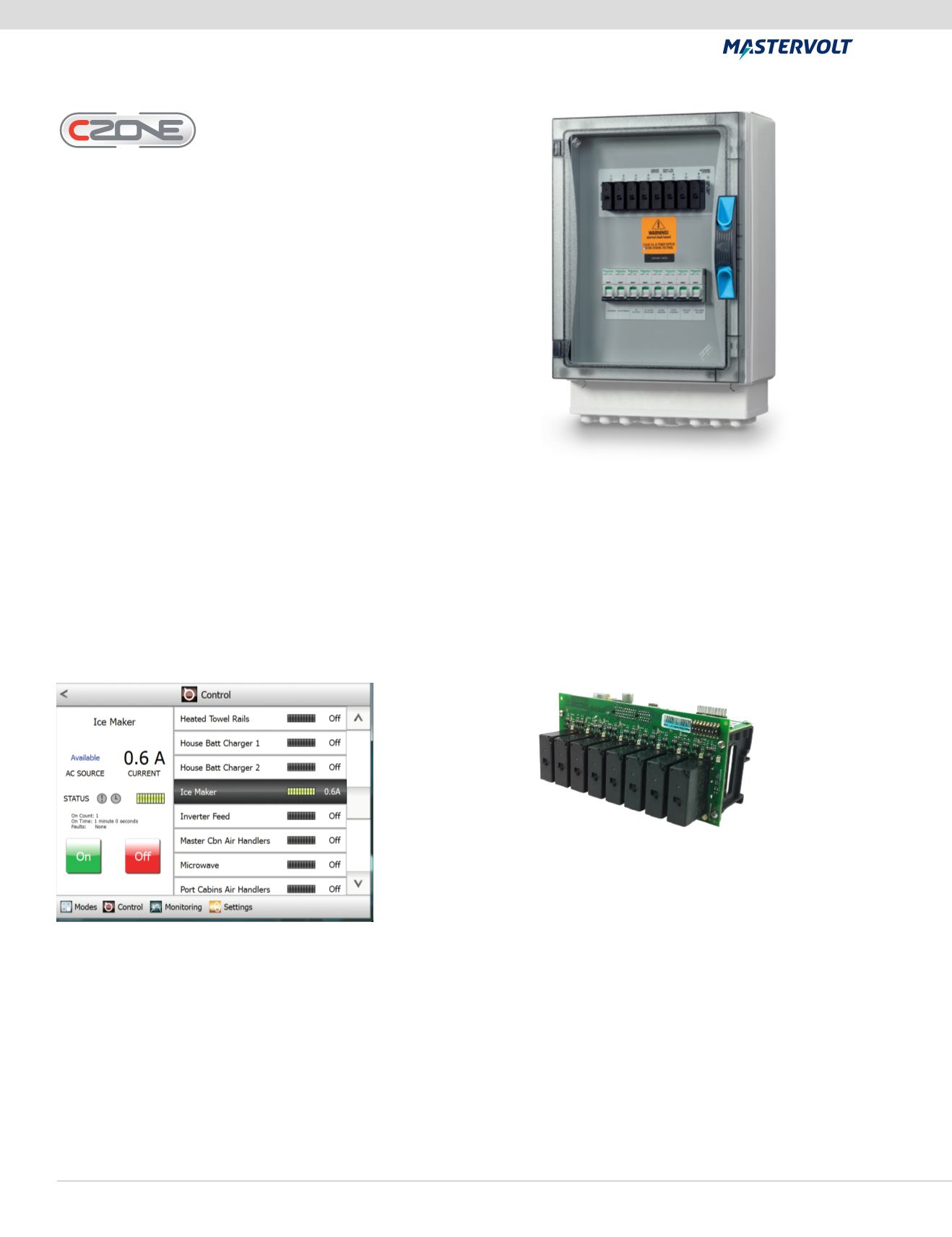

AC Output Interface (ACOI)
Simplify the way you network, monitor and control onboard AC circuits.
The AC Output Interface does it all and provides circuit protection for all
onboard AC devices. It is easy-to-install, configure and operate the digital
control system with pre-wired components for quick connections. This
gives you a customizable solution to suit unique installation and
application needs, including ‘night running’ or ‘at anchor’ as well as control
at multiple locations. It has eight outputs (up to 50 A each), supports
multiple pole designs and two separate buss feeds. To make it easy,
status LEDs and manual bypass are located right at the enclosure.
• Circuit status and run current displayed for each circuit
• Customizable to suit installation requirements
• Pre-wired for quick connection
• Staggered start up of loads
• 110 V, 240 V, 110/220 V
• Supports multiple pole designs, i.e. double, triple, four pole
• Utilizes standard DIN rail mounted components for circuit protection
and control
• Can support two separate buss feeds i.e. 2 load groups in one box
• Delay before circuits come on to allow generators to come up to speed
• Provides circuit protection and control
• Status LED’s at enclosure
• Manual bypass at enclosure
• Provision for MCB/RCD’s
• Timers
• 50 or 60 Hertz
TM
Manage:
CZone
™
Digital Control & Monitoring
80-911-0069-00
ACOI Standard
• 8 x 50A relays protected with 10A MCB’s.
• Pre-wired.
• Current monitoring on each channel.
• IPX5 enclosure.
• Dimensions (HxWxD):
11.61”x18”x5.1” 295x458x130mm.
• Contact Mastervolt for custom requirements.
ACOI Dinrail Mount
• 8 x 50A relays.
• Fitted with 600 mm tails.
• Cost effective solution, own enclosures and
MCB's can be sourced.
• Current monitoring on each channel.
• Dimensions (HxWxD):
3”x6.3”x2.4” 77x160x60mm.
• Contact Mastervolt for custom requirements.
80-911-0096-00
Black tails (US)
80-911-0082-00
Brown tails (APAC/Europe)
