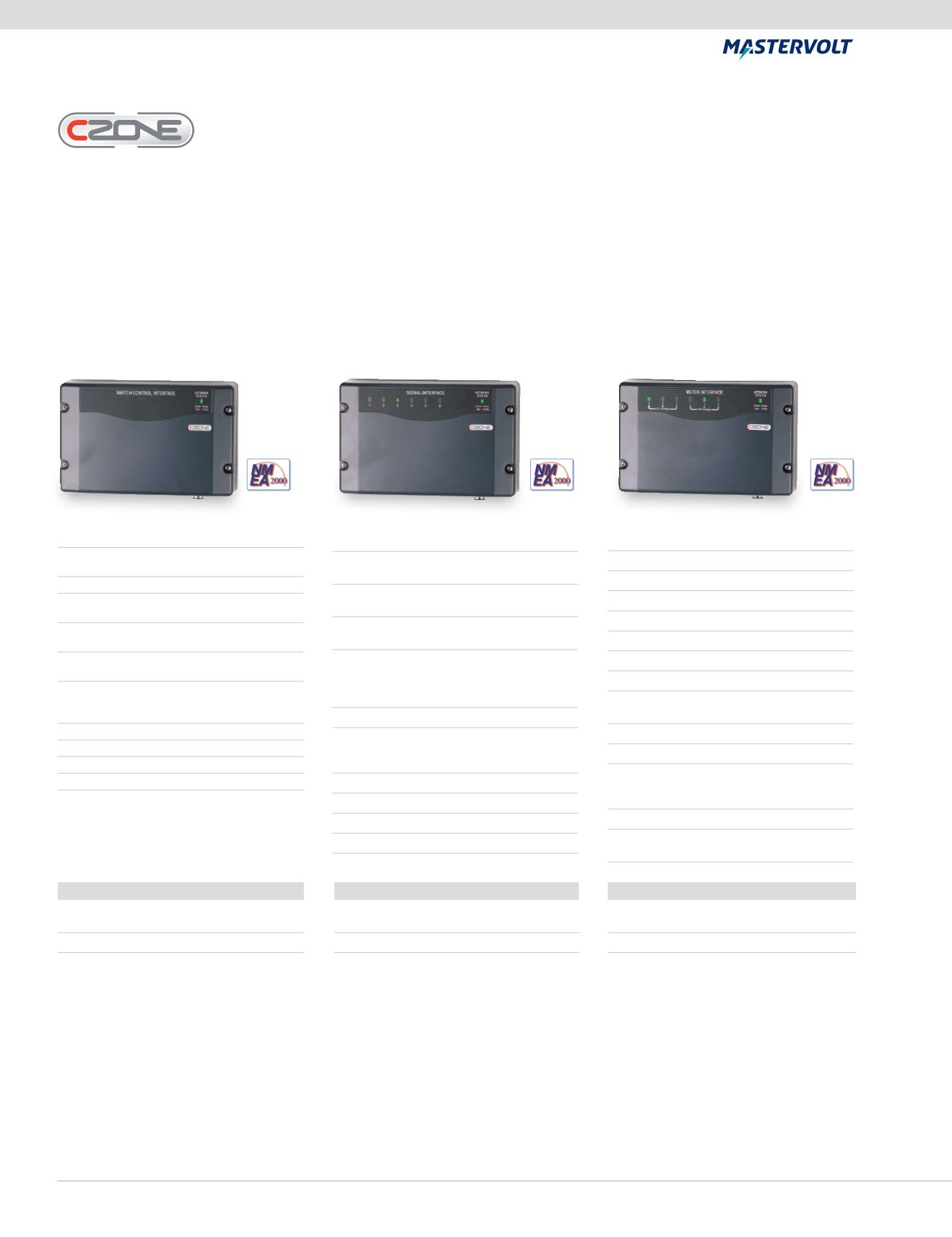

Switch Control Interface (SCI)
Single switch position can control multiple
OI channels
Attaches to switch panels via custom SCI cable
Multiple SCI switches can control single
OI channel
Output for backlighting of switch labels
(dimmable)
Outputs systems on and function/fault codes to
systems on LED of switches (dimmable)
Dimensions (HxWxD):
6-3/32 x 3-29/32 x 1-5/8 inch
156 x 100 x 42 mm
IPX5 water ingress protection
Programmable switch types
8 inputs per module (16 individual controls)
Sequential button press functionality
Signal Interface (SI)
Accepts inputs from traditional switch types
being used to control outputs
Accepts inputs from switches to trigger alarm
i.e. high water float switch
Accepts inputs from industry-standard tank
senders (0-5V, 10-180 Ohm, 240-33 Ohm)
Accepts inputs from general voltaic or resistive
signals, can be used for controlling outputs or
to display a physical position i.e. show a hatch
is partially open
LED status indicators for each input
Dimensions (HxWxD):
6-3/32 x 3-29/32 x 1-5/8 inch
156 x 100 x 42 mm
IPX5 water ingress protection
Outputs standard NMEA 2000 sentences
Resistive input range 0–1000 Ohms
Voltage sensing input range 0–34 V DC
Meter Interface (MI)
AC
3 x AC voltage inputs (multi voltage)
2 x AC current inputs
Calculates true RMS power
DC
3 x DC voltage inputs (multi voltage)
2 x DC current inputs
Calculates battery capacity as ampere hours
and percentage charge remaining
Resolution for current metering down to 0.1 A
General
Dimensions (HxWxD):
6-3/32 x 3-29/32 x 1-5/8 inch
156 x 100 x 42 mm
IPX5 water ingress protection
Outputs standard NMEA 2000 power
monitoring sentences
CZone interfaces
Switch Control Interface (SCI)
The Switch Control Interface provides an
interface between the CZone network
and the traditional mechanical switches
with which manufacturers and users are
familiar. The SCI simplifies your wiring,
supports your existing choice of
switches, protects against failures
and allows for more installation options.
Signal Interface (SI)
The Signal Interface connects the
CZone system to your external sensors,
alarms and switching devices. The SI
allows intelligent, automated operation
of circuits depending on the state of
the input.
Meter Interface (MI)
The Meter Interface accepts inputs
from external AC and DC power
metering sensors such as: AC and DC
voltage and amps, AC kWatts, and DC
battery capacity in amp hours and %
remaining. All with user definable high
and low alarms.
Note: High and low alarm levels can be set for all inputs.
Manage:
CZone
™
Digital Control & Monitoring
Item #
Description
80-911-0011-00
Switch Control Interface
with seal
80-911-0012-00
Switch Control Interface only
Item #
Description
80-911-0013-00
Signal Interface with seals,
connector
80-911-0014-00
Signal Interface only
Item #
Description
80-911-0005-00
Meter Interface, with seal
and plug
80-911-0006-00
Meter Interface only
