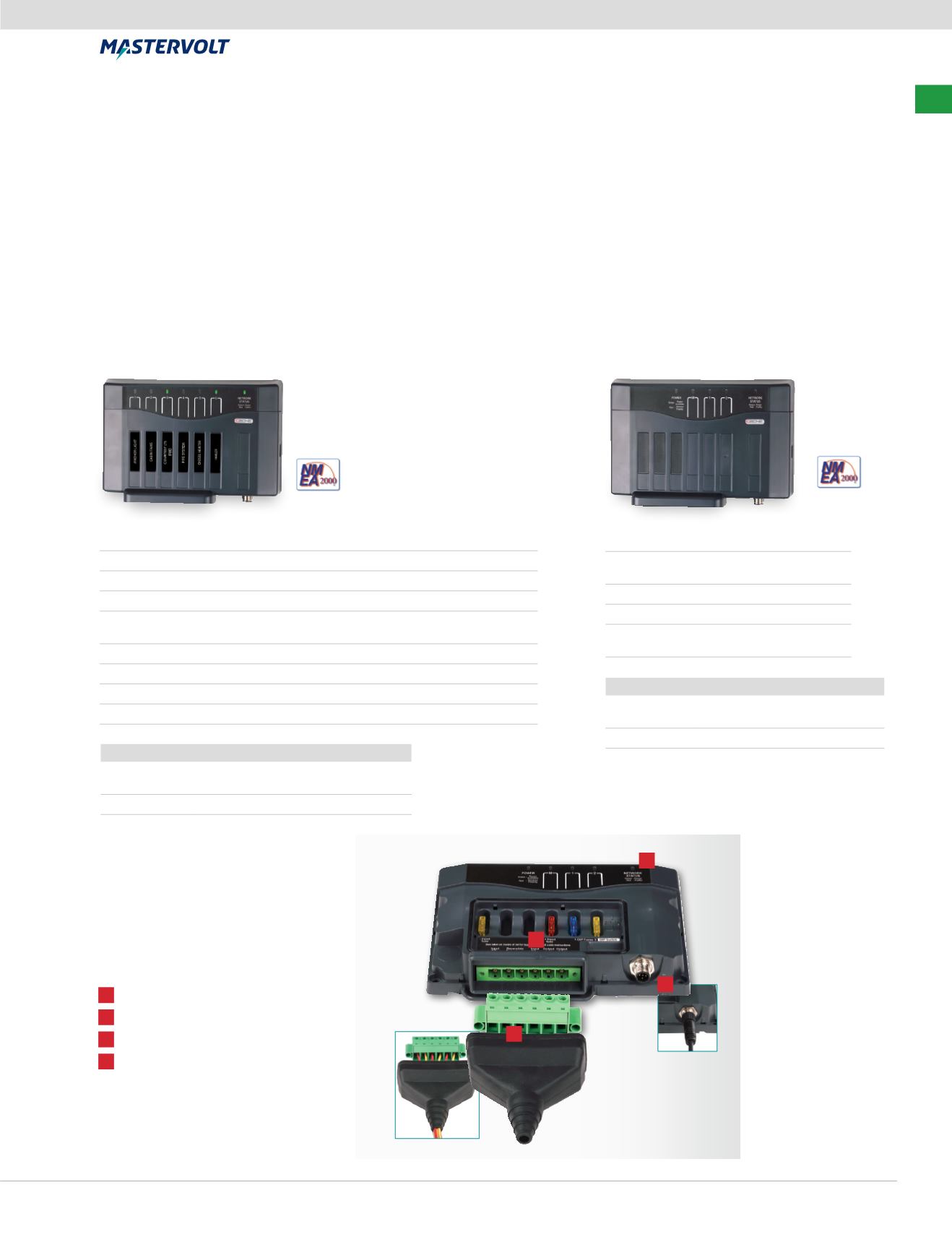

Output Interface (OI)
4 levels of backup fusing including manual override (as required by ABYC)
Multiple channels can be bridged together to offer higher current switching
Power consumption 12 V: 85 mA (standby 60 mA)
Dimensions (HxWxD):
7-29/32 x 5 x 1-3/4 inch, 200 x 128 x 45 mm
Small, non-metallic, easy to install case
IPX5 water ingress protection
6 x 20 amps circuits
Programmable software ‘fuse’ sizes
Motor Output Interface (MOI)
Single motor control and two normal channels
per unit, 20 A per output
Built-in circuit protection
IPX5 water ingress protection
Dimensions (HxWxD):
7-29/32 x 5 x 1-3/4 inch, 200 x 128 x 45 mm
Output Interface (OI)
The Output Interface provides an intelligent replacement for traditional
circuit breaker and fuse panels. It has six high power, robust output
channels which provide the power supply, control and fusing for a circuit
as well as integrating many other features such as timers and dimmers.
Connection to the unit is simple: a large 6-way plug allows connections to
cables of up to 16 mm
2
(6AWG) in size, or multiple smaller conductors. No
need for specialized crimp terminals and expensive crimp tools to be
carried for terminations to CZone, just a blade screwdriver. A protective
flexible boot offers protection to the connections from harsh environment
conditions.
Motor Output Interface (MOI)
The Motor Output Interface has an output pair
for controlling DC motors which require a
reversal of polarity to change the direction of
their mechanical operation. For example, a DC
motor for an electric window mechanism will
move the window up or down depending on the
polarity of the feed to the motor. The MOI also
incorporates two standard output channels as
found on the OI.
1
Fuses for emergency circuit bypass.
2
Network status indicator.
3
NMEA 2000 connector.
4
Connector and protective boot.
Manage:
CZone
™
Digital Control & Monitoring
Item #
Description
80-911-0009-00
Output interface with connector and
protective boot
80-911-0010-00
Output interface only
Item #
Description
80-911-0007-00
Motor Output Interface w/
connector, boot
80-911-0008-00
Motor Output Interface only
1
2
3
4
