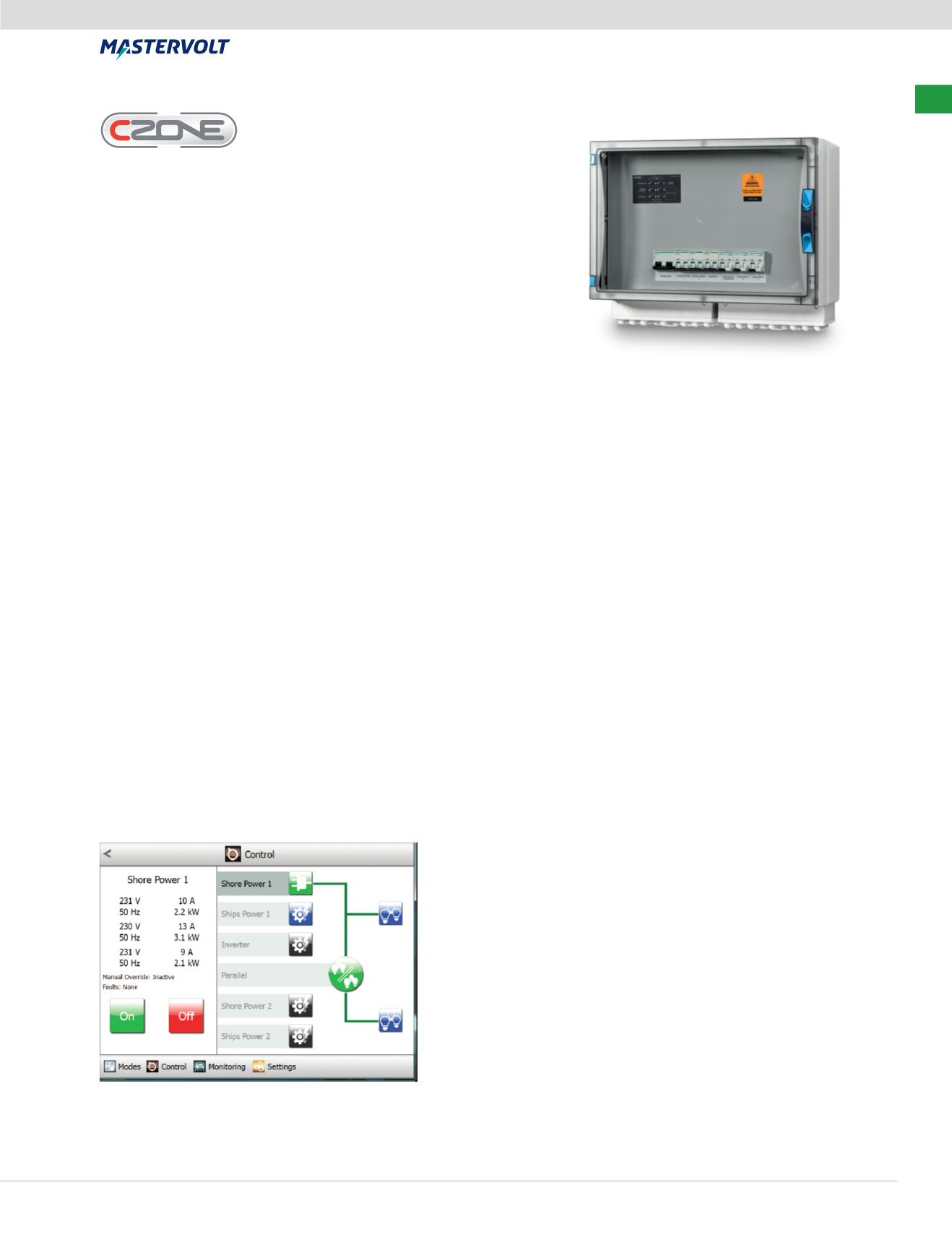

AC Mains Interface (ACMI)
A sophisticated source selector or transfer switch, the AC Mains Interface
enables the user to specify which AC power source is actively supplying
power to the ship (generator, inverter, shore power). Developed for use
with the CZone™ digital control system, but may also be used a stand-
alone device. The ACMI can be programmed to automatically change the
supply source when the current rating is exceeded, and includes a
manual override and user-friendly display screen that ensures easy
current, voltage, frequency, and power monitoring. Other features include
six monitored, over-current protected main power inputs of up to 100 A
each, as well as two outputs, which enables two separate load groups and
a parallel option for use with a single source. To simplify installation, the
ACMI comes pre-wired for easy installation.
• 6 Source inputs up to 100 A (eg. 2x shore power, 2x generator)
• Monitoring of channel status (on/off/fault)
• Provides circuit protection and control
• Manual override at enclosure and via remote panel
• Customizable to suit installation requirements
• Supports multiple pole designs, i.e. double, triple, four pole
• 110 V, 240 V, 110/220 V
• IPX5 enclosure
• Utilizes standard DIN rail mounted components for circuit protection
and control
• Current, voltage, frequency and power monitoring incorporated
(six channels)
• Physical and software lockouts between source controls
(prevents two sources from becoming connected)
• Reverse polarity and bad power supply alarms including auto
disconnect and lockouts
• 2 Outputs (load groups), allows for two separate load groups
with parallel option for use with single source
• Auto changeover
• Provision for RCD’s
• Load shedding
• Status LED’s at enclosure
• Pre-wired for quick connection
• Timer controls
• 50 or 60 Hertz
80-911-0068-00
Manage
|
CZone
™
TM
Manage:
CZone
™
Digital Control & Monitoring
• 3 Inputs—1x 16A Shore Power, 1x 32A Shore
Power, 1x 50A Generator with Parallel.
• 2 Load Groups—40A.
• 230 VAC 50 Hz.
• Current, voltage, frequency and power monitoring
incorporated.
• Manual override panel on enclosure.
• Dimensions (HxWxD):
15.8”x24.8”x5.1” 403x630x130mm.
• Contact Mastervolt for custom requirements.
