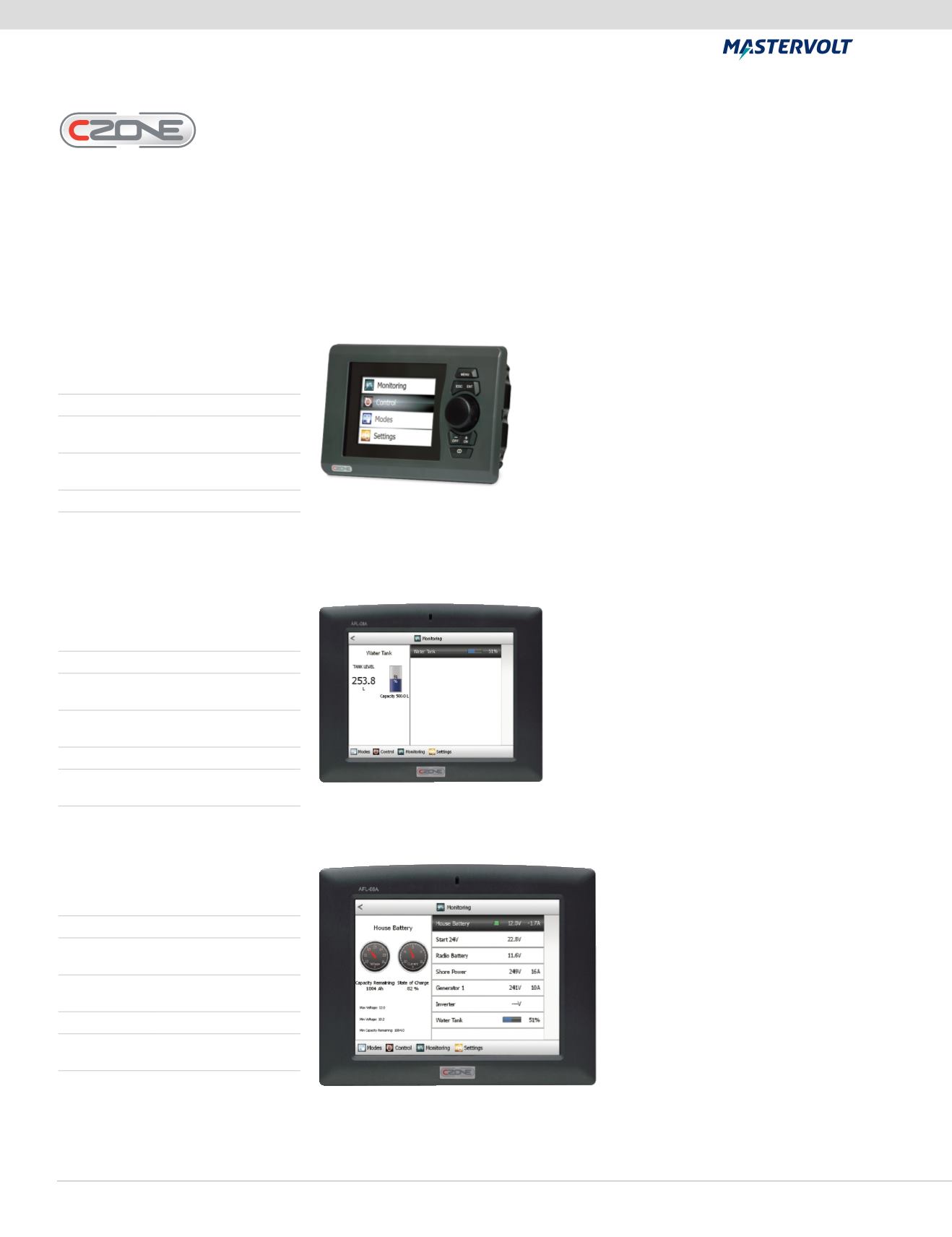

CZone™ LCD Displays
The CZone™ Displays are the interface between the CZone™
network and the user. They offer full control of circuits as well as
the ability to view important on board systems information such
as tank levels and power levels (for both AC and DC supplies),
they also provide audible and visual alarms with systems
diagnostics. The displays are extremely intuitive to use with
simple controls and a menu structure that is easy to follow.
The “modes of operation” feature allows the control of multiple
circuits with a single push of a button. For instance, “night
running” mode turns pre-selected lights on to dim levels. These
modes are all user configurable. The CZone™ displays can be
used to set the CZone™ system parameters for initial installation
and future system maintenance (DI only).
TM
Manage:
CZone
™
Digital Control & Monitoring
Power Control
• Turn circuits on and off including
timer and light dimming control.
• Set modes of operation.
Monitoring
DC power meter
• Displays voltages of multiple battery
banks, includes low and high
voltage alarms.
• Displays charge and discharge
(amps) of multiple battery banks.
• Displays battery capacity in ampere
hours and % charge/discharge,
includes low ampere hour alarm.
• Logging of battery minimum and
maximum voltage levels.
• Logging of minimum battery
capacity level.
AC power meter
• Displays multiple line voltages
(230 and 120 V), includes high
and low voltage alarm.
• Displays AC line frequencies,
includes high and low frequency
alarm and AC power consumption
in kW.
• Logging of minimum and maximum
voltage and frequency levels.
• Logging of maximum AC current.
Tank levels
• View tank level information for
multiple tanks and fluid types.
Data
• Displays standard NMEA2000
information.
• Displays temperature and pressure
values.
Alarms/diagnostics
• Logging of circuit run time and
on cycles.
• CZone™ network status reporting.
• Presents alarms for on board faults
in audible and visual form (bilge
pump running, smoke alarm).
3.5" Display Interface
Screen size 3.5" transflective QVGA
Protection IpX7 water ingress
Dimensions
(WxHxD)
4.13"x6.5"x2.44"
105x165x62 mm
Power
consumption
at 12 V: 180mA
(standby 130mA)
Rotary knob for easy menu navigation
8" Touch Screen
Screen size 8.4" (SVGA)
IP Level
IP64
Dimensions
(WxHxD)
9.21"x7.24"x1.65"
234x184x42 mm
Brightness
(cd/m2)
450
Input voltage 12 V DC
Power
Consumption
20 W
10" Touch screen
Screen size 10.4" (SVGA)
IP Level
IP64
Dimensions
(WxHxD)
10.87”x8.93”x1.99”
276x227x50.7 mm
Brightness
(cd/m2)
400
Input voltage 12 V DC
Power
consumption
25 W
80-911-0064-00
80-911-0001-00
black (power cable incl.)
80-911-0002-00
gray (power cable incl.)
80-911-0003-00
black (interface only)
80-911-0004-00
gray (interface only)
80-911-0065-00
