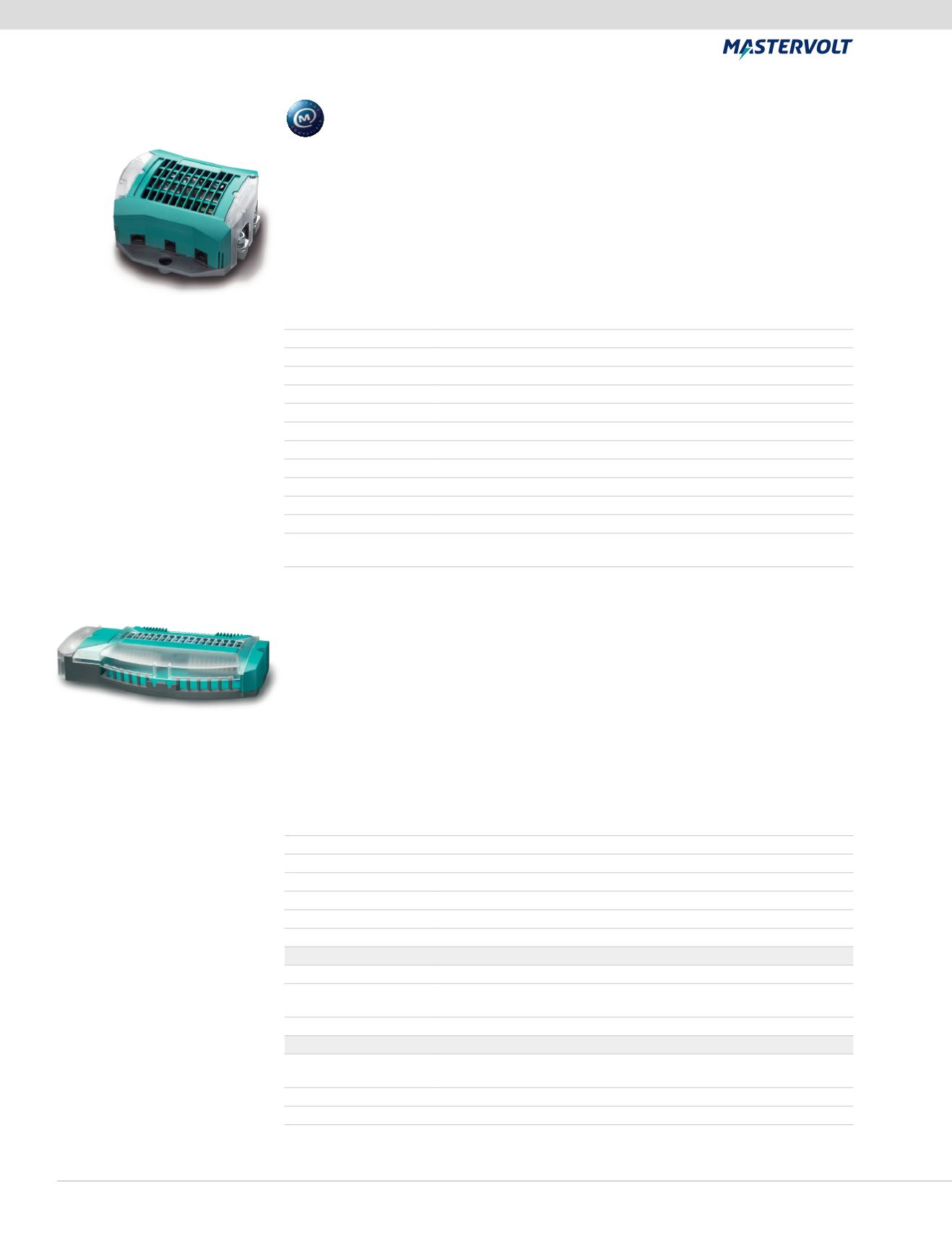

Digital DC 10x10A
As the pinnacle of system intelligence, the Mastervolt Digital DC 10x10A has ten
10A outputs for all functions including lighting, pumps or electronics. It comes standard
with intelligent alarm functions and luxury options include:
• Follow me home (light stays on for a specific time).
• (Delayed) dimming of lights (including ten built-in dimmers).
• Alarm signal for overload.
• Every output has a hardware and software fuse.
• Reset the fuses via the MasterBus network.
• Possibility of higher currents (up to 100 A) with parallel switching of multiple outputs.
• Logical blocks.
MasterShunt
MasterBus integrated battery monitor, with detailed information on the status of your
batteries for an optimised charging process, including voltage, current, remaining time
and consumption capacity in percentage. With an intelligent connection system, the
MasterShunt is easily connected to the DC Distribution. The integrated system clock
combined with command-based events automates the system to your needs. A good
example of such system automation: The generator should start automatically when the
batteries are almost depleted. The MasterShunt also has a built-in robust main fuse that
can safely break short-circuit currents of 20 kA.
MasterShunt 500
Item #
77020100
Dimensions (HxWxD) 5.9"x5.9"x2.5" / 150x150x65 mm
Weight
2.2 lbs / 1 kg
Battery types
gel, AGM, wet, Lithium Ion, spiral
Battery voltage
12, 24 or 48V DC
Current
300A continuous / 500A for 5 minutes
MasterBus powering yes
Main fuse
500A T-fuse (300A continuous at 40 ºC)
System functionality alarm, timers, auto start/stop for the generator
Programmable alarms warning low voltage, warning low state of charge, high voltage
Protection degree
IP21
Delivered with
MasterShunt, temperature sensor, MasterBus Terminator, MasterBus
cable, cable protections for DC connections
Manage:
Control Modules & Interfaces
Digital DC 10x10A
Item #
77020400
MasterBus powering
yes
Power consumption <2 mA at 12/24 V
Protection degree IP21
Dimensions (HxWxD) 1.6"x9.0"x4.3" / 40x229x110 mm
Weight
1.7 lbs / 750 gr
DC Output
Connection
cable max. 4 mm²
Maximum software
fuse current
10A per channel
Hardware fuse current 15A per channel
DC Input
Connections
max. 95 mm² or directly connected to MasterShunt or
DC Distribution
Maximum current
100A
Supply voltage
8-30V DC
