toll free 800.334.5214 ACME ELECTRIC |
Selection Charts H a r d - W i r e d S u r g e P r o t e c t i v e D e v i c e s
Q Thermal Fusing
Q Operating Frequency 50/60 Hz
Q Operating Altitude Sea Level-12,000’ (3,658 m)
Q Storage Temperature -40˚ F to +149˚ F (-40˚ C to +65˚ C)
Q Operating Temperature -40˚ F to +149˚ F (-40˚ C to +65˚ C)
Diagnostics
Q Green status LED
Listings and Performance
Q *cULus Listed to 1449 Type 1 SPD, CSA C22.2 No.
8-M1986, C233.1-87
**cULus Listed per UL 1449 Type 1 SPD, CSA
C22.2 No. 269.1-14

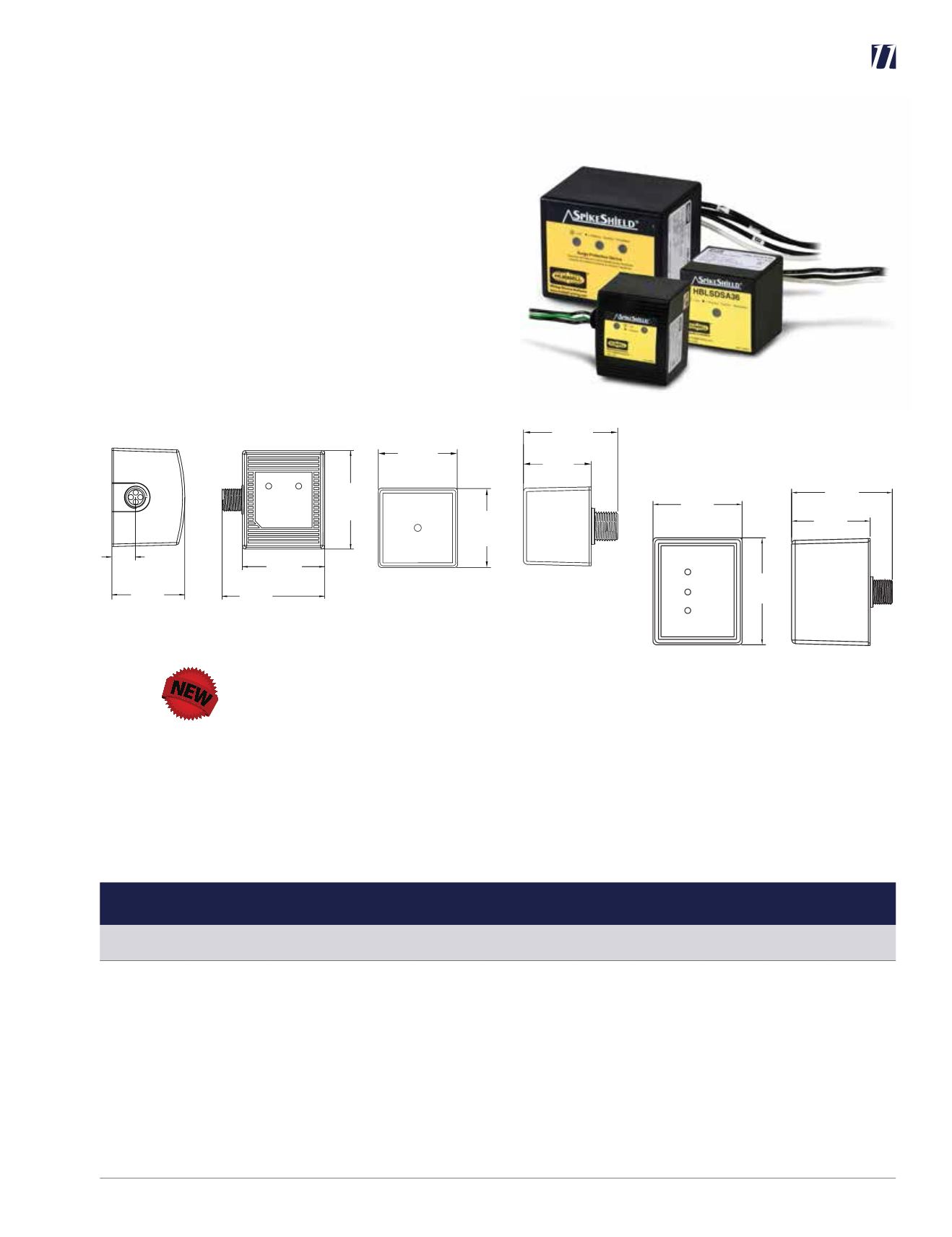

HBL3W50
The HBL3W50 series provide high-quality surge suppression in a compact and versatile package. This product is ideal for
panel builders as well as manufacturers and integrators of instrumentation cabinets for industrial, commercial, and residential
applications for single-phase power systems.
HBL3W50 SPDs incorporate the latest overvoltage technology innovations. The series provides superior overvoltage withstand
for systemswith unstable power without compromising transient clamping performance.
3.75
[95]
3.60
[91]
3.00
[76]
0.87
[22]
2.67
[68]
HBL3W50 HBLSDSA36
2.250
[57]
2.250
[57]
2.685
[68]
1.935
[49]
HBL4SA40, HBL5SA40,
HBL8SA40, HBL9SA40,
HBL10SA40 and HBL11SA40
3.00
[76]
3.60
[92]
3.39
[86]
2.64
[67]
HBL3W50
VPR
Model Number Surge Current Configuration Voltage MCOV SCCR In L-N L-G L-L
HBL3W50 50kA 1 Ø, 3-wire+G, side mounted 120V/240
150V L-N, L-G
300V L-L 25kA 10kA 700V 800V 1200V
