toll free 800.334.5214 ACME ELECTRIC |

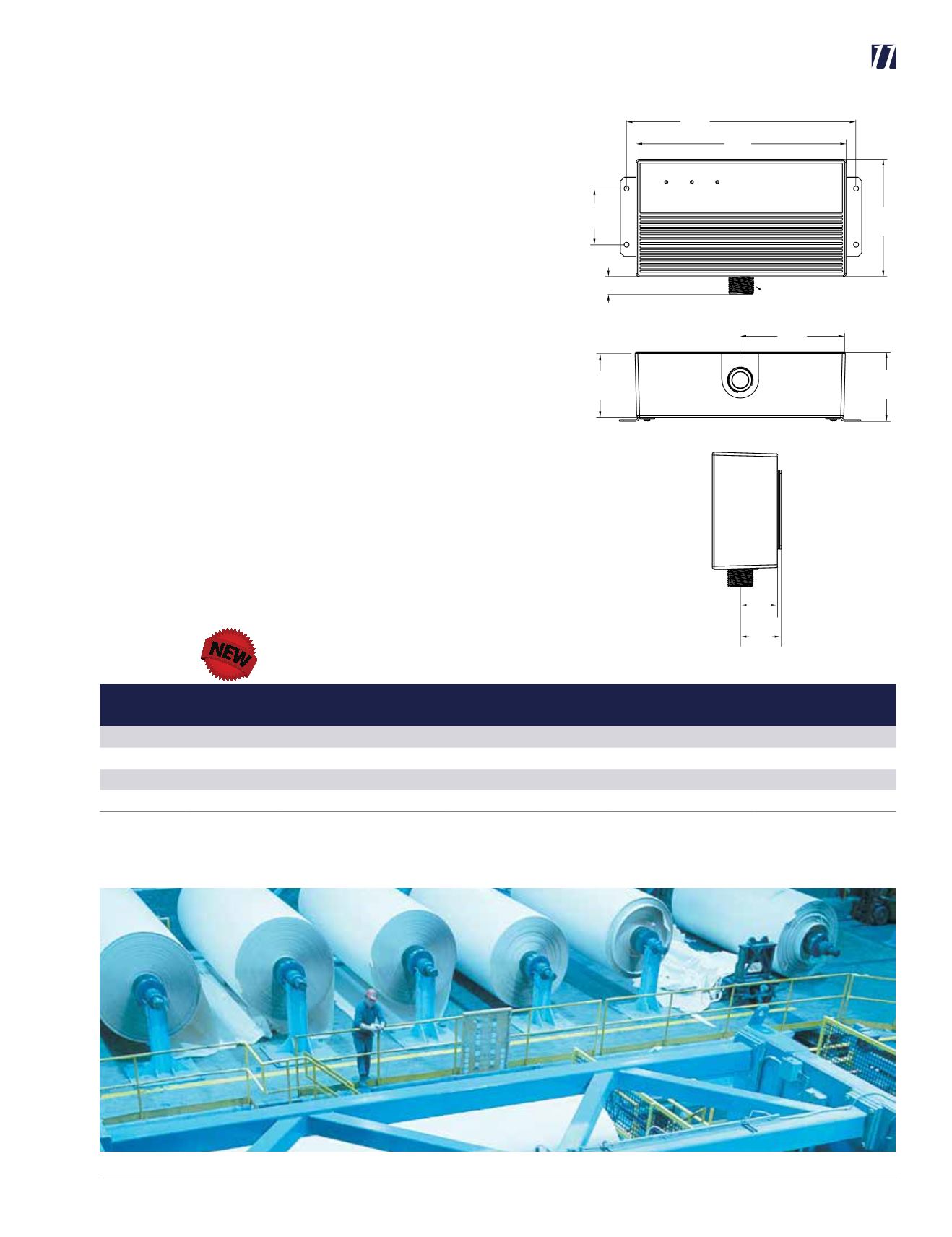

H a r d - W i r e d S u r g e P r o t e c t i v e D e v i c e s
HARD-WIRED SPD
Performance
Q Short Circuit Current Rating 200 kA
Q Fusing Individually fused MOVs
Q Filtering EM/RFI Noise Rejection Yes
Mechanical Description
Q Dimensions 8.62” x 4.80” x 2.92”
Q Housing Rating NEMA 4X
Q Connection Method #10 AWG
Q Mounting Method/Circuit Type Parallel
Q Thermal Fusing Yes
Q Operating Frequency 50/60 Hz
Q Operating Altitude Sea Level-12,000’ (3,658 m)
Q Storage Temperature -40˚ F to +149˚ F (-40˚ C to +65˚ C)
Q Operating Temperature -4˚ F to +160˚ F (-20˚ C to +71˚ C)
Diagnostics
Q Green status LED, audible alarm, dry contacts
Listings and Performance
Q cULus 1449 3rd edition Type 2 SPD, UL 1283
(Wye products only), CSA C22.2 No. 8-M1986
9.40
[239]
8.62
[219]
2.30
[58]
0.72
[18]
0.75
[19]
3/4"—14 NPT
Straight
4.80
[122]
1.77
[45]
1.95
[50]
2.92
[74]
3.10
[79]
4.31
[109]
Hard-Wired SPD
VPR
Model Number Surge Current Configuration Voltage MCOV I n L-N L-G L-L N-G
HBL3W100C 100kA 1 Ø, 3-wire+G 120V/240 150V 20kA 900V 1200V 1500V 700V
HBL4W100C 100kA 3 Ø, Wye, 4-wire+G 120V/208Y ① 150V 20kA 900V 1200V 1500V 700V
HBL8W100C 100kA 3 Ø, Wye, 4-wire+G 277V/480Y ② 320V 20kA 1200V 2000V 2500V 1000V
HBL9W100C 100kA 3 Ø, Delta, 3-wire 480V Delta 840V 20kA N/A N/A 3000V N/A
① 120/208Y series also applies to the following voltage 127/220Y
② 277/480Y series also applies to the following voltages 220/380Y, 230/400Y, and 240/415Y
