Volts
in
HxWx2.5
mm
HxWxL
Label
Sheet
CB’s –
Single Pole
CB’s –
Double Pole
Neg Bus Item #
5 10 15 20 25 30 20 25 30 50 80
Analog
230 7.9"x5"x2.5"
200x127x65 mm 5
2
1
IS-6MM-2
900-ACM2-AM
110 7.9"x5"x2.5"
200x127x65 mm 5
2
1
IS-6MM-2
900-ACM2-AM-110
230 11.6"x5"x2.5"
295x127x65 mm 5
2 3 1
1
IS-6MM-2
900-ACM6V-AM
110 11.6"x5"x2.5"
295x127x65 mm 5
3 2 1
1
IS-6MM-2
900-ACM6V-AM-110
230 7.9"x9.75"x2.5" 200x239x65 mm 5
1 3 3 1
1
1
2x6 way
900-AC2H-AM
110 7.9"x9.75"x2.5" 200x239x65 mm 5
2 3 2 1
1 1
2x6 way
900-AC2H-AM-110
230 15"x5"x2.5"
380x127x65 mm 5
1 3 3 1
1
1
2x6 way
900-AC2V-AM
110 15"x5"x2.5"
380x127x65 mm 5
1 2 3 2 1
1 1
2x6 way
900-AC2V-AM-110
230 7.9"x13.9"x2.5" 200x351x65 mm 5
1 4 5 1 1
1
1
2x12 way
900-AC3-AM
110 7.9x13.9x2.5" 200x351x65 mm 5
1 3 4 3 1 1
1
1 2x12 way
900-AC3-AM-110
Digital
230 7.9"x9.75"x2.5" 200x239x65 mm 5
1 3 3 1
1
1
2x6 way
900-AC2H-ACSM
110 7.9"x9.75"x2.5" 200x239x65 mm 5
2 3 2 1
1 1
2x6 way
900-AC2H-ACSM-110
230 15"x5"x2.5"
380x127x65 mm 5
1 3 3 1
1
1
2x6 way
900-AC2V-ACSM
110 15"x5"x2.5"
380x127x65 mm 5
1 2 3 2 1
1 1
2x6 way
900-AC2V-ACSM-110
230 7.9"x13.9"x2.5" 200x351x65 mm 5
1 4 5 1 1
1
1
2x12 way
900-AC3-ACSM
110 7.9x13.9x2.5" 200x351x65 mm 5
1 3 4 3 1 1
1
1 2x12 way
900-AC3-ASCM-110
230 7.9x13.9x2.5" 200x351x65 mm 5
1 5 7 2 1
1
1
2x6 way
900-AC4-ACSM
110 7.9x13.9x2.5" 200x351x65 mm 5
5 8 2 1
1
1 2x6 way
900-AC4-ACSM-110
Cutout size – 3/8" (10 mm) inside all external edges. All panels available in 12 or 24V backlighting configuration.
Analog/Digital Meters
• All available in 110V/60 Hz or 230V/50 Hz.
• All supplied with tranducers
• Reverse polarity indicator
• Double pole mains input CBs with side lockout
• Digital meter shows volts, amps and frequency
• LED wired to indicate live panel with mains breaker either on or off
• AC source selector ensures no cross over between AC inputs
(ship or shore power)
• AC voltage/frequency label to comply with ABYC Standards

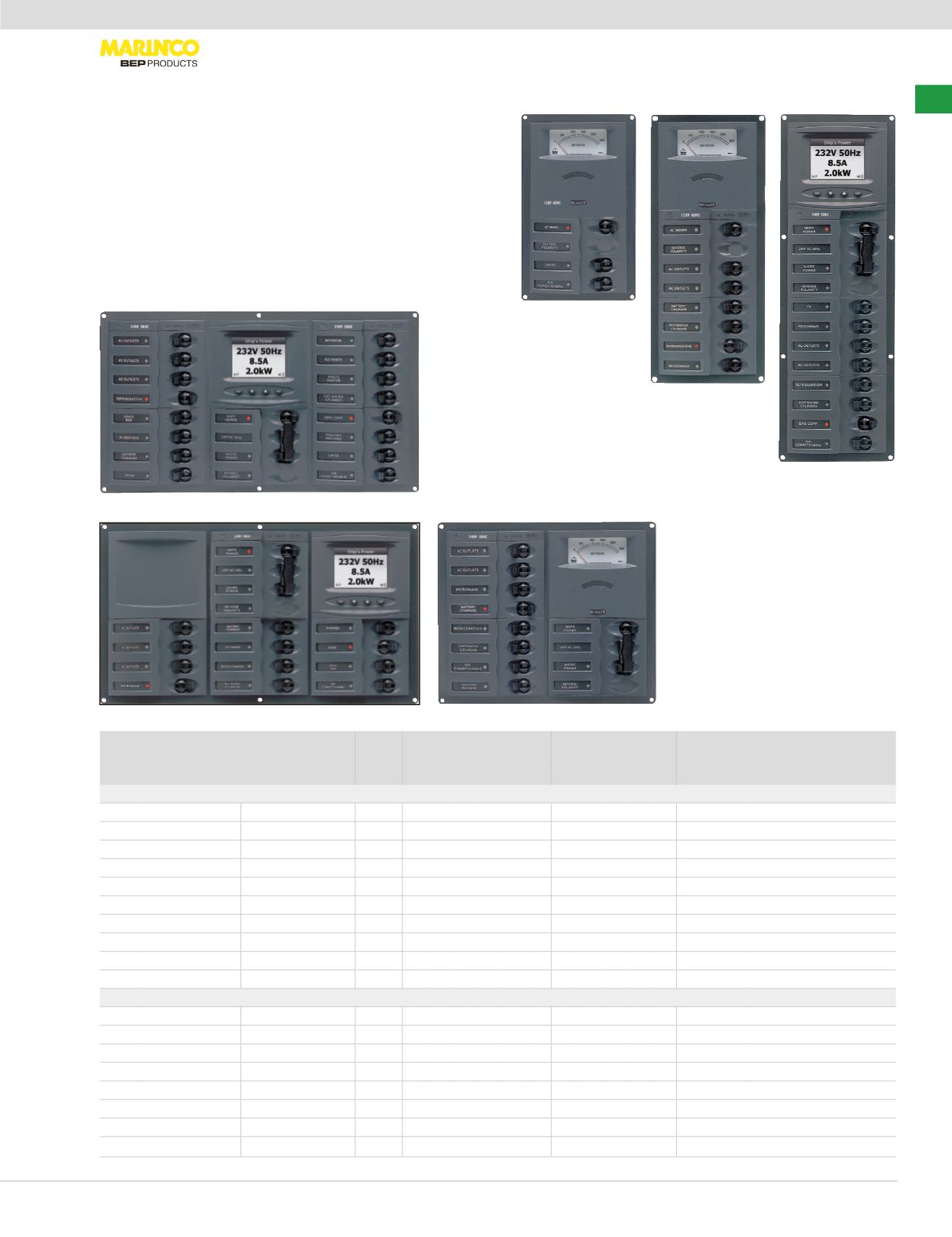

900-AC2V-ACSM
900-AC2H-AM
900-AC4-ACSM
900-AC3-ACSM
900-ACM2-AM
900-ACM6V-AM
