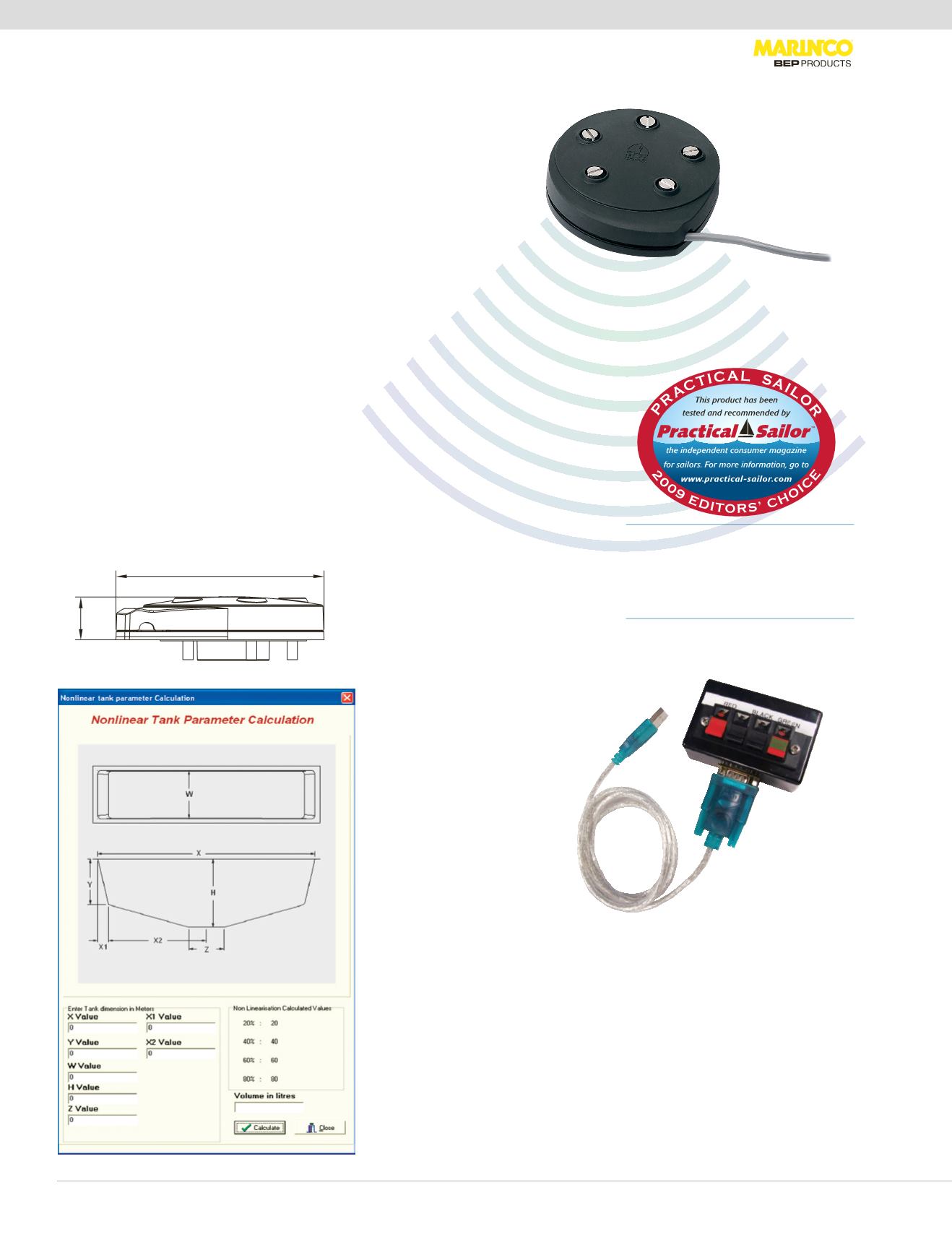

BEP™ Ultrasonic Tank Sender—No Moving Parts
• Handles common outputs – 240-33, 10-180, Vetus 10-300 for
analogue resistive gauges (not suitable for resistive digital gauges
or CAN systems) and 0-5V tanks from BEP, Teleflex, Faria, VDO
and many other popular instrument brands. (When connecting to
non-adjustable gauges the TS1 must be pre-calibrated)
• Low Profile Design and standard SAE 5 hole mounting pattern,
allowing it to be retrofitted to practically all other sender brands.
• Can be set for tank dimensions via computer using BEP™ Marine’s
proprietary TS1 software, avoiding experimental tank filling on site
• Connects directly to the DC systems monitors (80-600-0021-00 &
80-600-0022-00 page 201) when configured to a 0-5V output
• Is set for 0-2000 mm depth off the shelf (not suitable for tank
depths less than 200 mm) 8".
• Operating voltage: 10-32V
• Current draw: 25 mA with 5V gauge output
• Measurement method: Acoustic sonic measurement
• Tank depth: 0–6.5 ft (2000 mm)
• Accuracy Distance: 0–6.5 ft (2000 mm) at 2 mm accuracy
• Mounting: SAE 5 stud mounting pattern with gasket, seal
and screws (top mount only).
• Environmental temperature: 39.2–149°F (4–65°C)
• Chemical resistance: Petrol, diesel, water, toilet chemicals
• Tank type style: Metal and plastic with non linear capacity
• Works with petrol, diesel, fresh water, grey water and black water
TS1 Programing Device
Item # TS1-PK
0.5M
95.43 [3 3/4"]
19.64 [3/4"]
95.27 [3 3/4"]
84.88 [3 5/16"]
…the most unique and sophisticated
system of any tank monitor tested…
the ultrasonic technology is extremely
accurate.
Practical Sailor Magazine, July 2009
BEP’s proprietary
Window’s based
software application
allows for TS1 senders
to be programmed
specific to tank shape,
size and fluid type via
a computer’s USB port.
Programming is a
simple process and
can be carried out
by downloading
free software from
bepmarine.com
and purchasing
a programming kit
TS1-PK
.
Once programmed,
the specific tank
parameters are stored
in the non-volatile
memory of the TS1.
Find more detailed
information at
marinco.com
TS1
