NEW

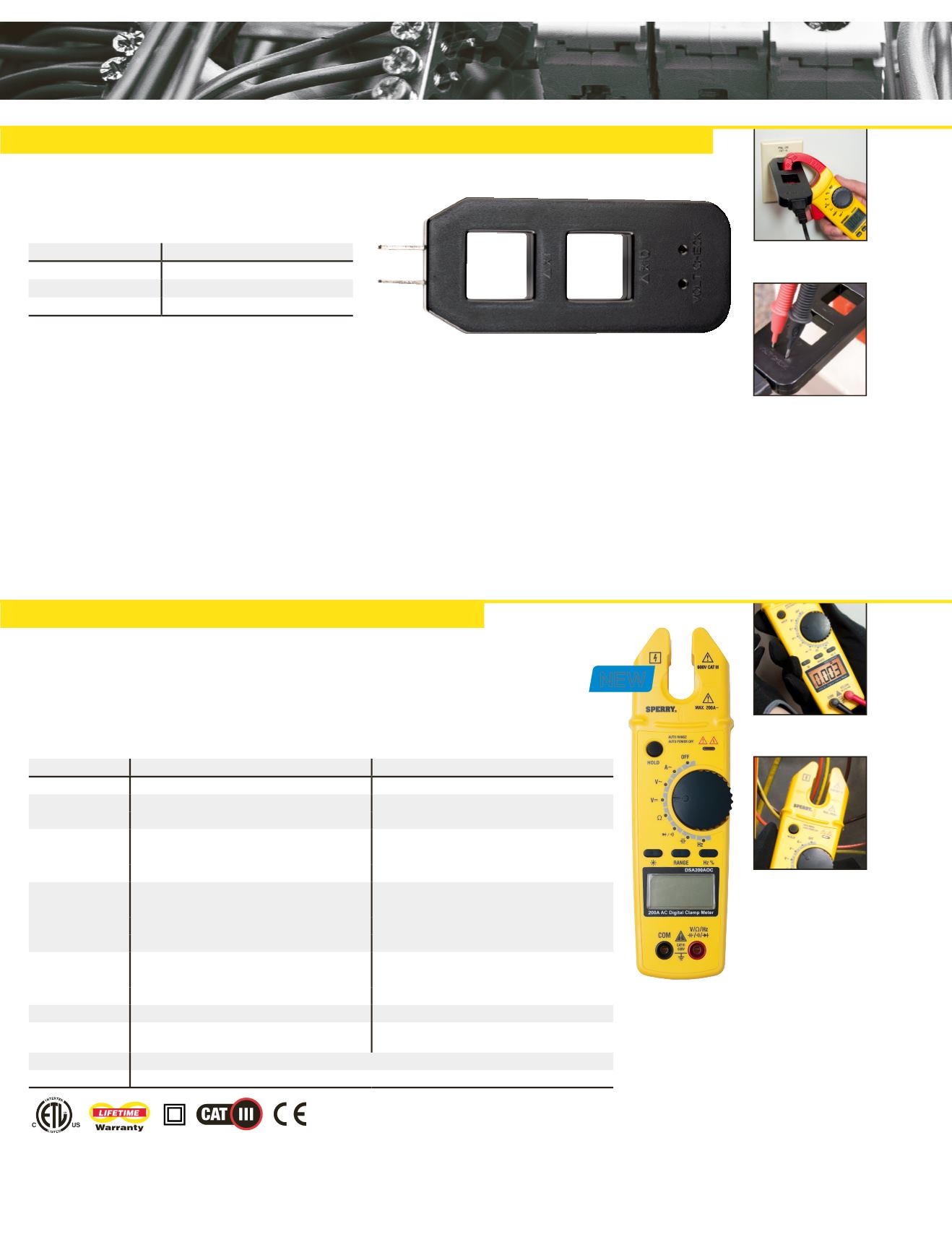

E1 LINE SPLITTER
DSA200AOC OPEN JAW CLAMP METER
E1
• For use with any clamp meter
• 1x and 10x measuring capability
• Probe slots for voltage measurement
• Auto Ranging
• Manual Range Mode
• Data Hold
• Overload protection
• Over-range indication
• Polarity indication
• Low Battery Indicator
• Auto Shut off
• Built-in Lead Storage
• Includes Carrying Case
• Operates from (2) AAA batteries, included
DSA200AOC
3999 count
backlit screen
13mm Open jaw
design for ease of
measurement
DSA200AOC Range Accuracy
AC Current 200A ±(3.0%+3)
AC Voltage
4V/ 40V/ 400V ±(0.8%+5)
600V ±(1.0%+10)
DC Voltage
400mV ±(0.8%+3)
4V/ 40V/ 400V ±(0.7%+1)
600V ±(0.8%+3)
Resistance
400Ω ±(1.2%+3)
4kΩ/ 40kΩ/ 400kΩ ±(1.0%+2)
4MΩ ±(1.2%+2)
40MΩ ±(2.0%+3)
Capacitance
4nF Not Guaranteed
40nF/ 400nF/ 4μF/ 40μF ±(4.0%+10)
100μF ±(8.0%+10)
Frequency 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz ±(1.5%+1)
Duty Cycle 1% - 99% 1Hz - 10kHz ±(2.0%+5)
≤10Hz not specified
Diode Test 3
Continuity 3
E1 Range
Operational Voltage 120V AC
AC Current 15A
Frequency 50/60Hz
For use with
any clamp meter
Probe slots for
voltage measurement
NECESSARY ACCESSORIES
The E1 Line Splitter is a must-have accessory for clamp meters. The non-contact current capability of a clamp meter
requires the isolation of a single conductor to measure the current, placing the jaws around a power cord does not give an accurate
reading. In applications where the separation of the wires can endanger the integrity of the insulation or where machinery uses an
integrated plug, the Line Splitter will split the current loop for convenient measurement. The E1 can be used in either a single loop
measurement or a 10 times magnifying loop for accurate measurement of low current applications. This handy Line Splitter also
includes convenient probe ports to measure voltage as well.
600V
